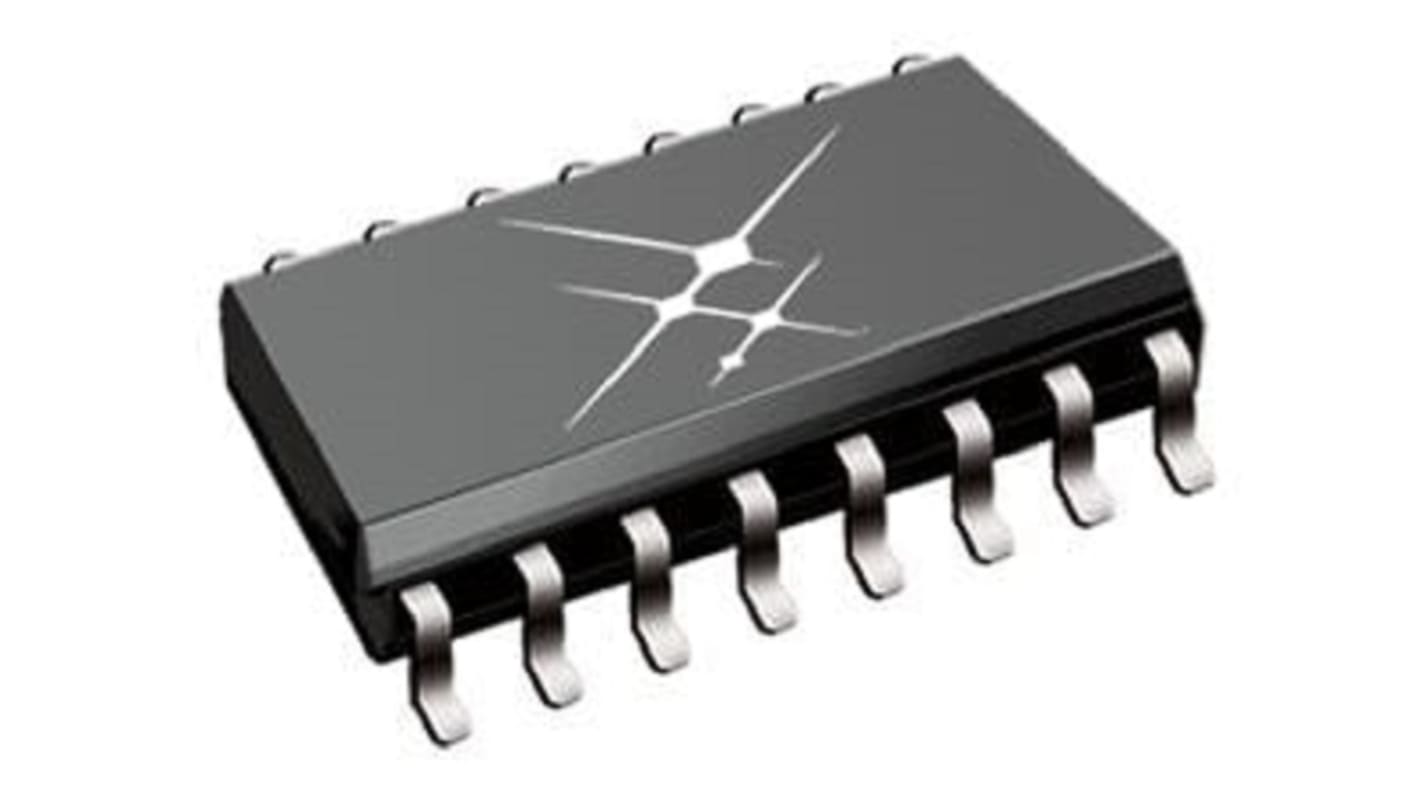

Skyworks Solutions Inc SI8275AB-IS1 2, 2.5 A, 6.5 → 24V 16-Pin, SOIC-16 NB
- RS Stock No.:
- 273-2005
- Mfr. Part No.:
- SI8275AB-IS1
- Manufacturer:
- Skyworks Solutions Inc
470 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR32.93
| Units | Per Unit |
| 1 - 4 | MYR32.93 |
| 5 - 9 | MYR32.31 |
| 10 - 95 | MYR28.20 |
| 96 - 287 | MYR24.25 |
| 288 + | MYR23.01 |
- RS Stock No.:
- 273-2005
- Mfr. Part No.:
- SI8275AB-IS1
- Manufacturer:
- Skyworks Solutions Inc
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Skyworks Solutions Inc Si827x isolators are ideal for driving power switches used in a wide variety of power supply, inverter, and motor control applications. The Si827x isolated gate drivers utilize Skyworks proprietary silicon isolation technology, supporting up to 2.5 kVRMS withstand voltage per UL1577 and VDE0884. This technology enables industry leading common mode transient immunity (CMTI), tight timing specifications, reduced variation with temperature and age, better part-to-part matching and extremely high reliability.
Single PWM or dual digital inputs
Separate pull up or down outputs for slew rate control
Very low jitter of 200 ps p-p
60 ns propagation delay
Dedicated enable pin
Separate pull up or down outputs for slew rate control
Very low jitter of 200 ps p-p
60 ns propagation delay
Dedicated enable pin
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Logic Type | TTL |
| Output Current | 2.5 A |
| Supply Voltage | 6.5 → 24V |
| Pin Count | 16 |
| Fall Time | 20ns |
| Package Type | SOIC-16 NB |
| Number of Drivers | 2 |
