RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 4.3mm Stud Size Nylon, Red
- RS Stock No.:
- 267-3694
- Manufacturer:
- RS PRO
1100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
37200 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR0.912
Units | Per Unit | Per Pack* |
100 - 900 | MYR0.912 | MYR91.20 |
1000 - 2400 | MYR0.892 | MYR89.20 |
2500 - 4900 | MYR0.865 | MYR86.50 |
5000 - 24900 | MYR0.844 | MYR84.40 |
25000 + | MYR0.695 | MYR69.50 |
*price indicative |
- RS Stock No.:
- 267-3694
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

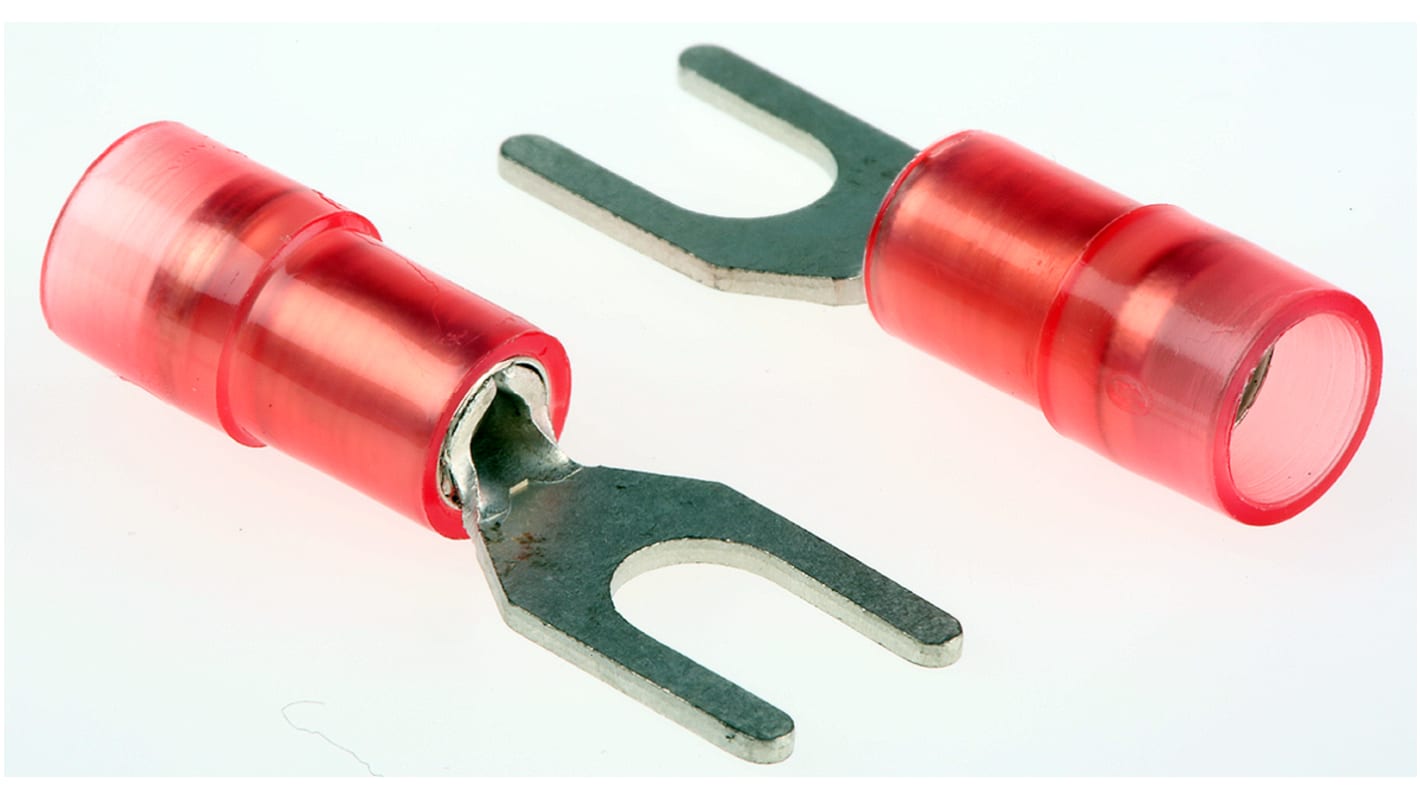

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M4 (#8) Stud Size Nylon, Red
These RS PRO insulated crimp-spade terminals are made of a short metal tube that can be used to terminate an open wire with no need for soldering. They are also known as fork-wire terminals. You'll often see this type of connector used to attach wires to a stud, bus bar or other parts of an electrical system.
The units are made from brass with a copper-sleeved barrel to ensure they are strong and durable. They're fitted with nylon insulation, which has excellent non-conductive properties and is resistant to corrosion. The insulation has a flared design, allowing you to insert wires easily.
These terminals are certified as meeting the British safety standard (BS7671) for domestic wiring. They also conform with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, so you can be sure the risk of electrostatic discharge is minimised.
The units are made from brass with a copper-sleeved barrel to ensure they are strong and durable. They're fitted with nylon insulation, which has excellent non-conductive properties and is resistant to corrosion. The insulation has a flared design, allowing you to insert wires easily.
These terminals are certified as meeting the British safety standard (BS7671) for domestic wiring. They also conform with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, so you can be sure the risk of electrostatic discharge is minimised.
Features and Benefits
- Red colour
- Copper contact material
- Tin contact plating
- Insulated
- Nylon insulation material
- Maximum wire size of 16 AWG (American Wire Gauge)
- Maximum wire size of 1.5 mm²
- Minimum wire size of 22 AWG
- Minimum wire size of 0.5 mm²
- Overall length of 22 mm
- SNYDL series
- M4 (#8) stud size
- Thickness of 0.75 mm
- Width of 7.2 mm
Small Pack Size
Per Unit, RS stock no: 267-3694
Large Pack Size
RS stock no: 270-7653
Specifications
Attribute | Value |
---|---|
Series | SNYDL |
Insulation | Insulated |
Width | 7.2mm |
Insulation Material | Nylon |
Minimum Wire Size mm² | 0.5mm² |
Maximum Wire Size mm² | 1.5mm² |
Minimum Wire Size AWG | 22AWG |
Maximum Wire Size AWG | 16AWG |
Stud Size | 4.3mm |
Colour | Red |
Contact Plating | Tin |
Overall Length | 22mm |
Contact Material | Copper |
Thickness | 0.75mm |
