ABB Foot Switch Snap Action Foot Switch - NC + NO ABS 10A Contact Current, 400 V ac Contact Voltage
- RS Stock No.:
- 825-1720
- Mfr. Part No.:
- 1SBV002105R1111 IPSY1A11
- Manufacturer:
- ABB
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR782.43
FREE delivery for orders over RM 150.00
In Stock
- 40 unit(s) ready to ship from another location
- Plus 49 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR782.43 |
| 5 + | MYR776.97 |
*price indicative
- RS Stock No.:
- 825-1720
- Mfr. Part No.:
- 1SBV002105R1111 IPSY1A11
- Manufacturer:
- ABB
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Foot Switch | |
| Series | IPSY | |
| Contact Configuration | NC + NO | |
| Switch Operation | Snap Action | |
| Contact AC Voltage | 400V ac | |
| Housing Material | ABS | |
| Contact DC Voltage | 250V dc | |
| Switch Contact Current | 10A | |
| Switch Environment | Foot Switch | |
| IP Rating | IP65 | |
| Terminal Type | Screw | |
| Guard Cover | Yes | |
| Width | 250mm | |
| Standards/Approvals | CE, IEC, UL | |
| Length | 140mm | |
| Colour | Yellow | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Foot Switch | ||
Series IPSY | ||
Contact Configuration NC + NO | ||
Switch Operation Snap Action | ||
Contact AC Voltage 400V ac | ||
Housing Material ABS | ||
Contact DC Voltage 250V dc | ||
Switch Contact Current 10A | ||
Switch Environment Foot Switch | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Guard Cover Yes | ||
Width 250mm | ||
Standards/Approvals CE, IEC, UL | ||
Length 140mm | ||
Colour Yellow | ||

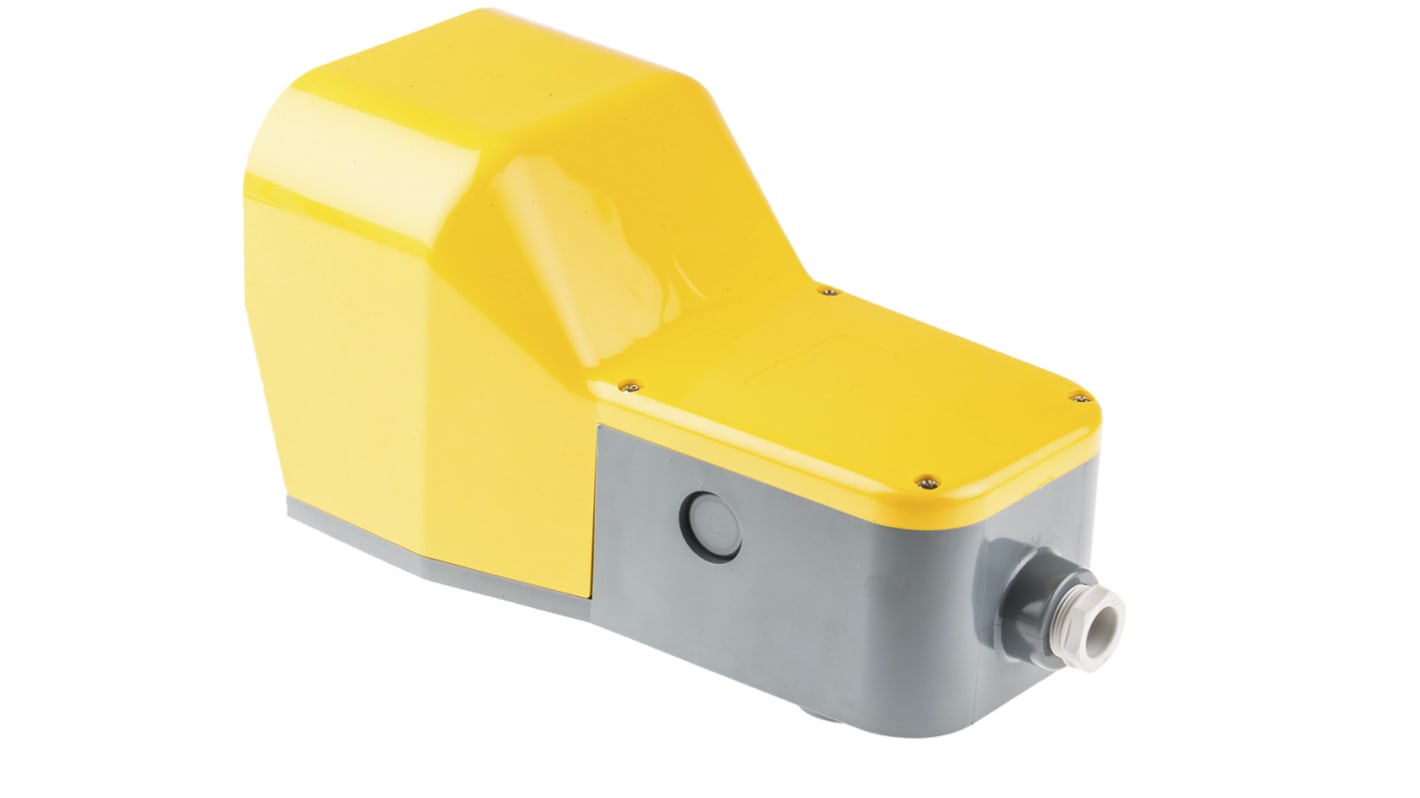

ABB Single-Pedal Emergency-Stop Foot Switch, Yellow, 690V AC Contact Voltage Rating - IPSY1A11
Quickly halt machinery in dangerous situations using this emergency-stop foot switch from ABB. Simply press your foot down and stop the device from operating to protect personnel and equipment from hazards. The unit has a rated operational current of 230V AC and 3.1A for safe use in low-voltage systems. The contacts are electrically separated to prevent damage from harmful currents. Thanks to its free pedal movement, it'll respond quickly when activated. A robust thermoplastic fibreglass body offers resistance to impacts and corrosion, helping extend the unit's service life, even with rough handling.
Features & Benefits
• Rated impulse withstand voltage of 6kV to prevent damage from current overload
• Broad operating temperature range between -10°C and +70°C for safe use in challenging settings
• Resistance to shock and vibration helps prevent accidental activation
• Visible operation for easy monitoring
• Snap-action contacts provide responsive switching
Applications
• Manufacturing industry
• Textile manufacturing
• Automotive industry
• Conveyor belts
• Oil and gas industry
How durable is this foot switch?
This unit has a mechanical durability rating of 30 million cycles, so you can rely on it for lasting performance.
