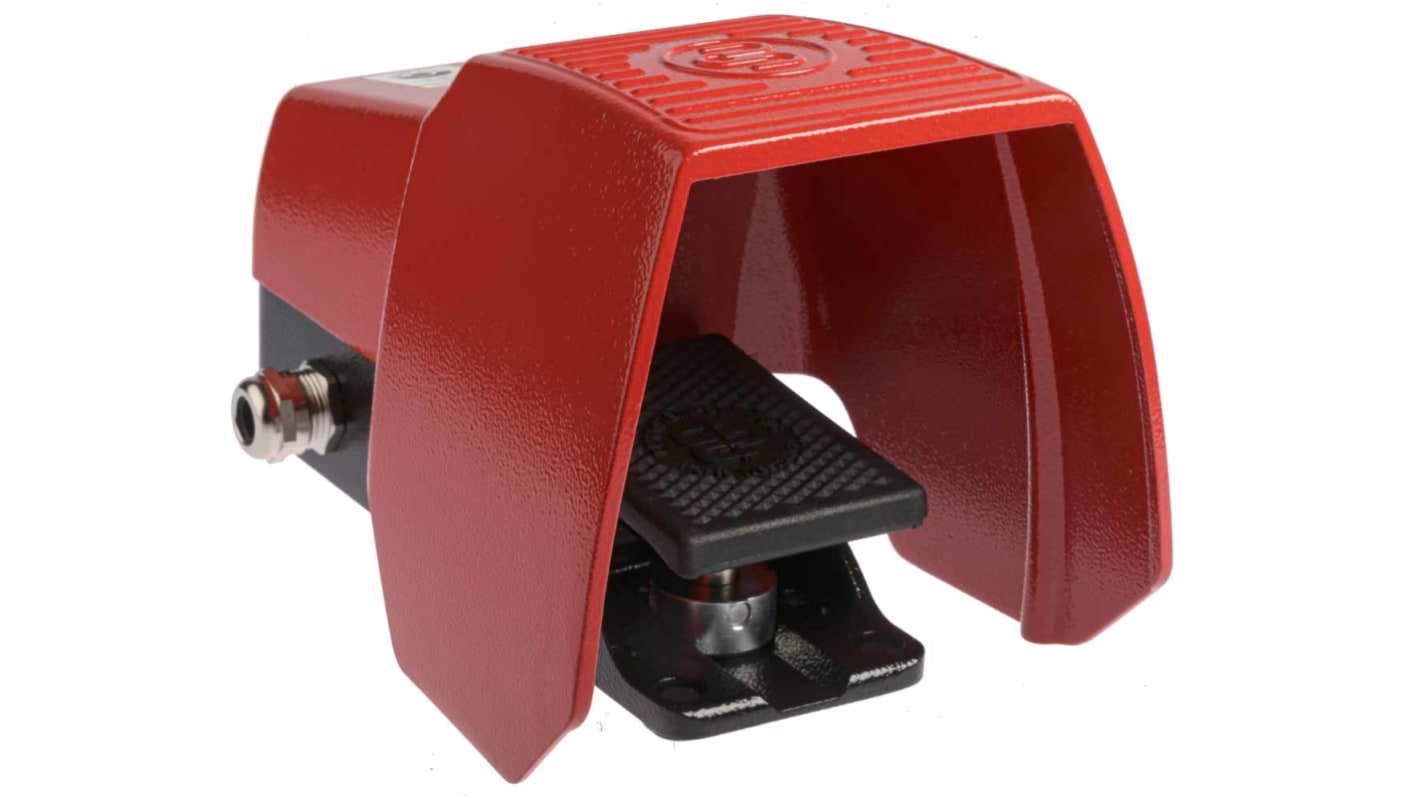

Bernstein AG Momentary Foot Switch - 2 NO/1 NC Aluminium 10 A Contact Current, 400 V ac Contact Voltage

RS Stock No.:: 410-7256
Mfr. Part No.:: 6161000203
Manufacturer:: Bernstein AG

Bernstein AG Momentary Foot Switch - 2 NO/1 NC Aluminium 10 A Contact Current, 400 V ac Contact Voltage

Subtotal (1 unit)*

MYR1,399.54

FREE delivery for orders over RM 150.00

In Stock

Plus 56 unit(s) shipping from 19 October 2026
Plus 5 unit(s) shipping from 19 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,399.54

*price indicative

RS Stock No.:: 410-7256
Mfr. Part No.:: 6161000203
Manufacturer:: Bernstein AG

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bernstein AG
	Series	616
	Product Type	Foot Switch
	Contact Configuration	2 NO/1 NC
	Switch Operation	Momentary
	Contact AC Voltage	400V ac
	Housing Material	Aluminium
	Contact DC Voltage	240V dc
	Contact Current	10A
	IP Rating	IP65
	Terminal Type	Screw
	Cover	Yes
	Length	250mm
	Standards/Approvals	EU, CSA, CCC
	Width	146mm
	Depth	146mm
	Housing Colour	Red
	Mechanical Life	1000000Operations
	Number of Pedals	1

	Select all
	Brand Bernstein AG
	Series 616
	Product Type Foot Switch
	Contact Configuration 2 NO/1 NC
	Switch Operation Momentary
	Contact AC Voltage 400V ac
	Housing Material Aluminium
	Contact DC Voltage 240V dc
	Contact Current 10A
	IP Rating IP65
	Terminal Type Screw
	Cover Yes
	Length 250mm
	Standards/Approvals EU, CSA, CCC
	Width 146mm
	Depth 146mm
	Housing Colour Red
	Mechanical Life 1000000Operations
	Number of Pedals 1

COO (Country of Origin):: DE

Bernstein AG Emergency Stop Foot Switch

The Bernstein AG 616 series single pedal, momentary contact emergency stop foot switch has double normally open and single normally closed as normal state configuration. It is red and made of aluminium. This foot switch has a rated insulation voltage of 400VAC, rated operational voltage of 240V and conventional thermal current of 10A.

Function:

1. Operation of pedal up to pressure point:

The work contact is closed and the work process is initiated.

2. In an emergency, operate beyond the pressure point resistor:

The work contact is stopped and locked and the work process is stopped. Furthermore, when the pedal is not in operation, interlocking stays in the OFF position. An uncontrolled recovery or a restart of moveable machine parts are to be avoided.

3. Lock release:

Contacts can only be again manually (push button actuator on side of housing) after the potentially dangerous situation is rectified, the work process can be reinitiated by operating the pedal up to the pressure point.

Features and Benefits

3PST pole and throw configuration

Safety stay put with manual locking release

Metal encapsulated housing

AL safety cover for accident prevention

Foot pedal is made of thermoplastic

Latching foot pedal

8 screw connections (M3.5)

Cable entry 3 x M20 x 1.5

Applications

Coil winding machines

Photo lab equipment

Sewing machines

Conveyor belts

Imprinting equipment

CNC machines

Certifications

IP65 rated

CCC certified

DGUV certified

CSA certified

UL listed

BG certified
