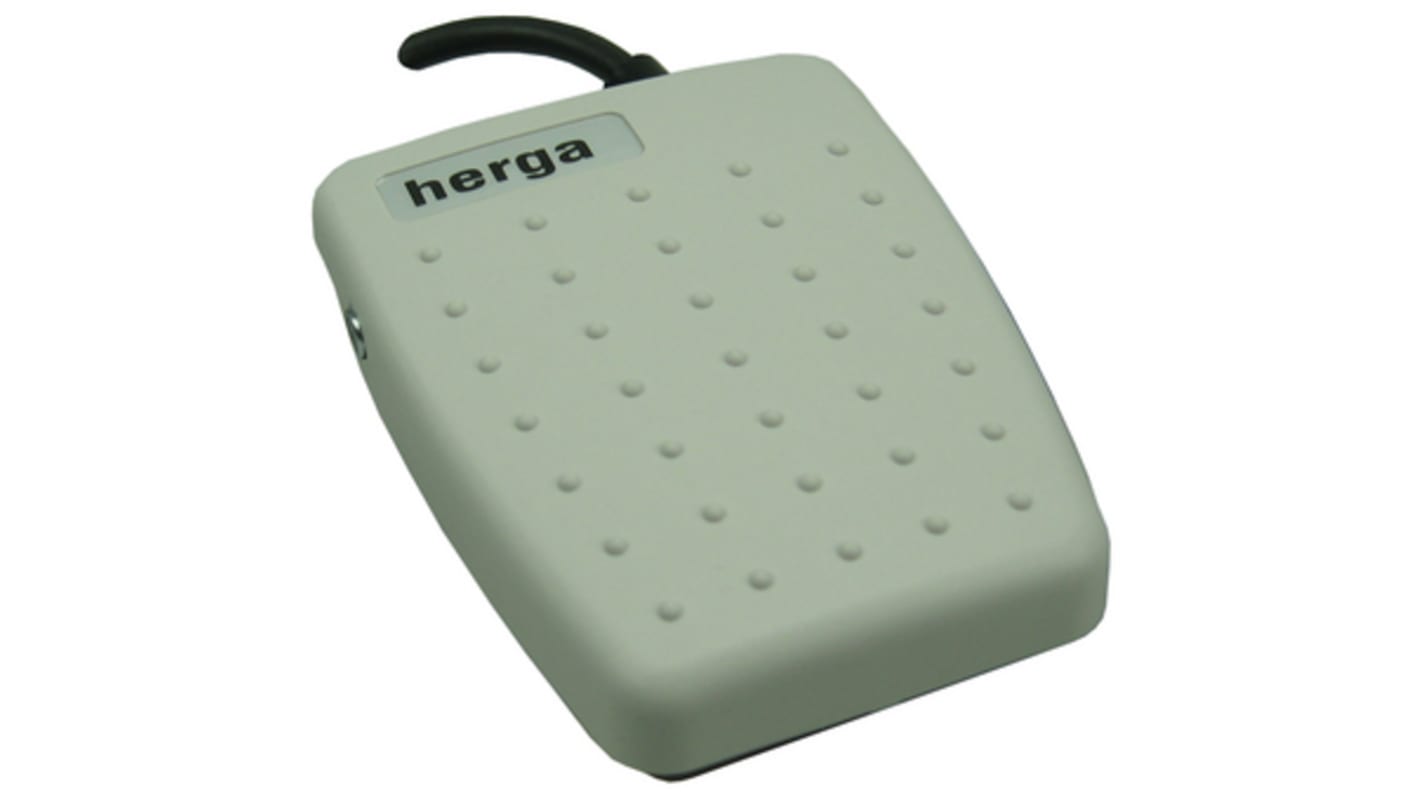

Herga Foot Switch Changeover Foot Switch - DPNO (Cherry). Microswitches (DO) Thermoplastic 3A Contact Current, 24 V ac
- RS Stock No.:
- 283-7806
- Distrelec Article No.:
- 110-95-812
- Mfr. Part No.:
- 6226-BCBB-ZAZZ
- Manufacturer:
- Herga
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 283-7806
- Distrelec Article No.:
- 110-95-812
- Mfr. Part No.:
- 6226-BCBB-ZAZZ
- Manufacturer:
- Herga
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Herga | |
| Contact Configuration | DPNO (Cherry). Microswitches (DO) | |
| Product Type | Foot Switch | |
| Series | 6226 | |
| Switch Operation | Changeover | |
| Contact AC Voltage | 24V ac | |
| Housing Material | Thermoplastic | |
| Contact DC Voltage | 24V dc | |
| Switch Contact Current | 3A | |
| Switch Environment | Foot Switch | |
| IP Rating | IPX8, IPX7 | |
| Guard Cover | Yes | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Height | 36mm | |
| Length | 96mm | |
| Width | 72mm | |
| Colour | Base: Black, Cover: Grey | |
| Select all | ||
|---|---|---|
Brand Herga | ||
Contact Configuration DPNO (Cherry). Microswitches (DO) | ||
Product Type Foot Switch | ||
Series 6226 | ||
Switch Operation Changeover | ||
Contact AC Voltage 24V ac | ||
Housing Material Thermoplastic | ||
Contact DC Voltage 24V dc | ||
Switch Contact Current 3A | ||
Switch Environment Foot Switch | ||
IP Rating IPX8, IPX7 | ||
Guard Cover Yes | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Height 36mm | ||
Length 96mm | ||
Width 72mm | ||
Colour Base: Black, Cover: Grey | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Foot Switch is a versatile product designed for improved user comfort. With a low profile, rear hinged switch and all-plastic construction, it meets medical, industrial, office, and commercial standards. Ideal for OEM use, it offers the option for customers to fit their own cable. With a weight of 0.14Kg and an operating temperature range of +10 to +50 degreeC, this foot switch is a reliable and innovative solution for various applications.
Low profile, rear hinged switch for improved user comfort
All plastic construction with raised tread pattern and anti-slip pad
Versatile and innovative design, ideal for OEM use
Option for customers to fit their own cable
Meeting medical, industrial, office, and commercial standards
Weight of 0.14Kg including cable
Electrical rating of Maximum 3A 24V AC/DC
