Foot Switch, Aluminium Slow Action NC/NO 5 A ac, 200 A dc IP66, IP67

  • RS Stock No. 136-5930
  • Mfr. Part No. Ex GFI 1O/1S Extreme
  • Manufacturer Steute
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

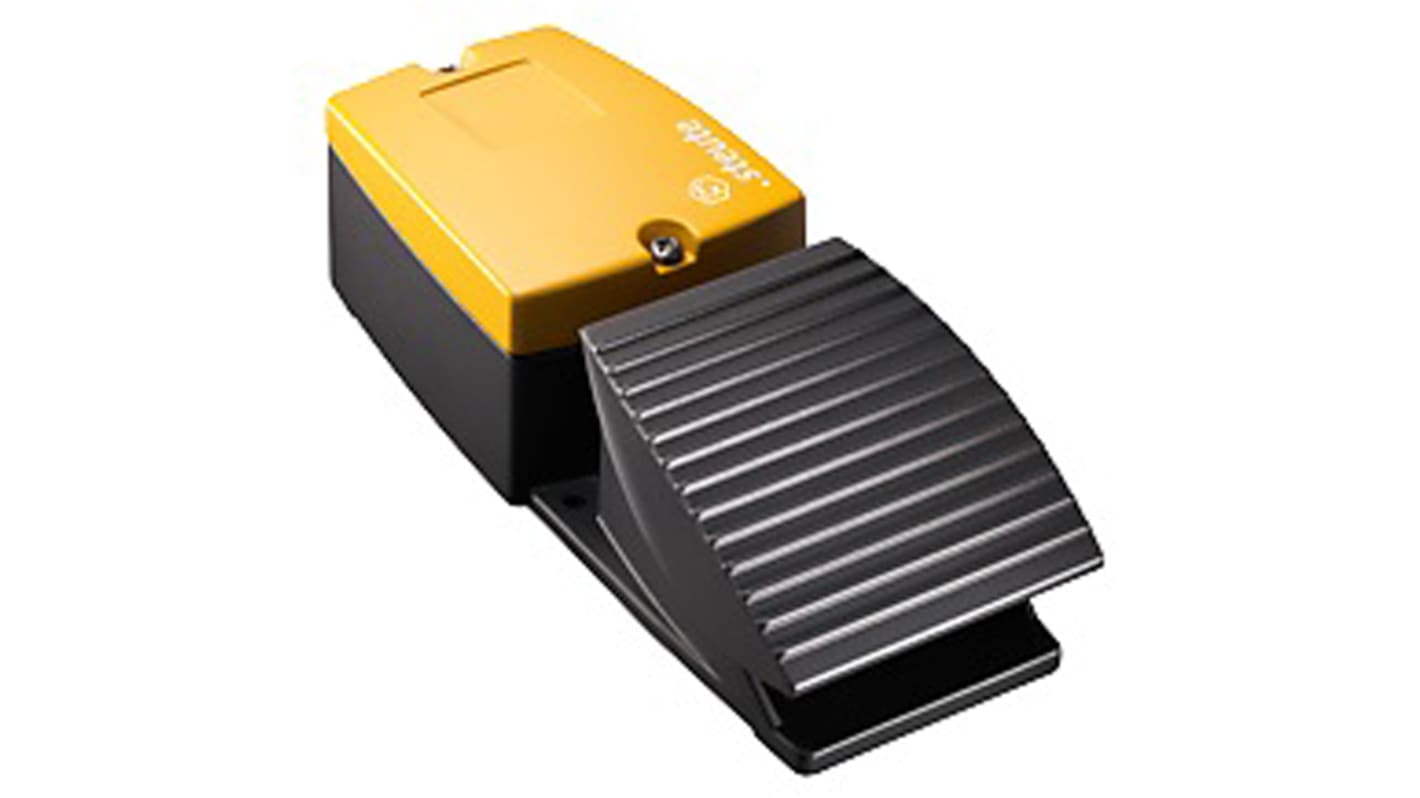

Steute EX GFI Explosion Proof Foot Switches

Steute Ex GFI foot switches are mounted on machines and plants in cases where operation by hand is not possible. They are used to start and stop operations and production processes. The Ex GFI foot switches feature slow action positive break NC contacts and are available with various contact configurations.

Features and Benefits

Ex zone 1 and 21 Single pedal
Corrosion-resistant aluminium enclosure
Salt-mist spray test to DIN EN ISO 9227
High degree of protection IP66 / IP67
Temperature resistant from -40 °C to +55 °C
Screws and metal parts made of stainless steel
Wiring compartment
Low pedal height

Specifications
Attribute Value
Contact Configuration NC/NO
Switch Operation Slow Action
Case Material Aluminium
Contact Current Rating 5 A ac, 200 A dc
Switch Environment Heavy Duty
IP Rating IP66, IP67
Contact Material Silver
Hazardous Area Certification ATEX, IECEx
Dimensions 236 x 92 x 70mm
Length 236mm
Guard Cover No
Width 92mm
Colour Black, Yellow
Height 70mm
Standards Met EN 60079-0, EN 60079-1, EN 60079-31, EN 60079-7, EN 60947-5-1, EN ISO 13849-1
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2,061.07
units
Per unit
1 +
MYR2,061.07
