Switch, Long, 1/2 NPT, M12 connect

  • RS Stock No. 756-4141
  • Mfr. Part No. SSF215XPM12
  • Manufacturer Cynergy3
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

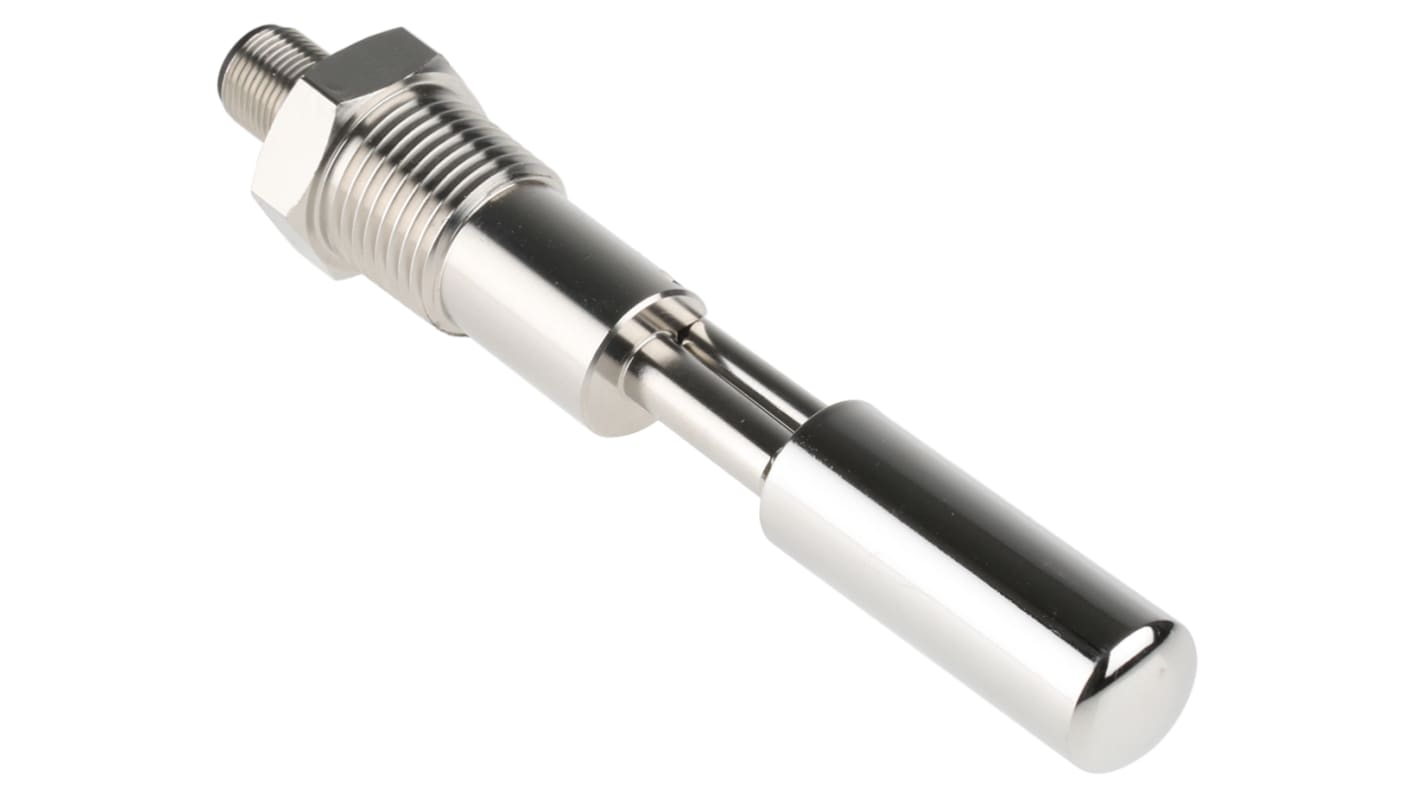

cynergy3 Horizontal Float Switches

A simple electro-mechanical device for liquid level switching in high and low-level applications. These float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed rotating the switch through 180°.

Features & Benefits

Compact design
304 grade stainless steel stem, ideally suited for use in aggressive environments
316 grade stainless steel float
Works with liquids of SG 0.8 min

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Specifications
Attribute Value
Device Type Float
Mounting Type Horizontal
Switch Output NO/NC
Body Material Stainless Steel
Cable Length 1m
Maximum Current 500 mA
Maximum Pressure 10bar
Series SSF215
