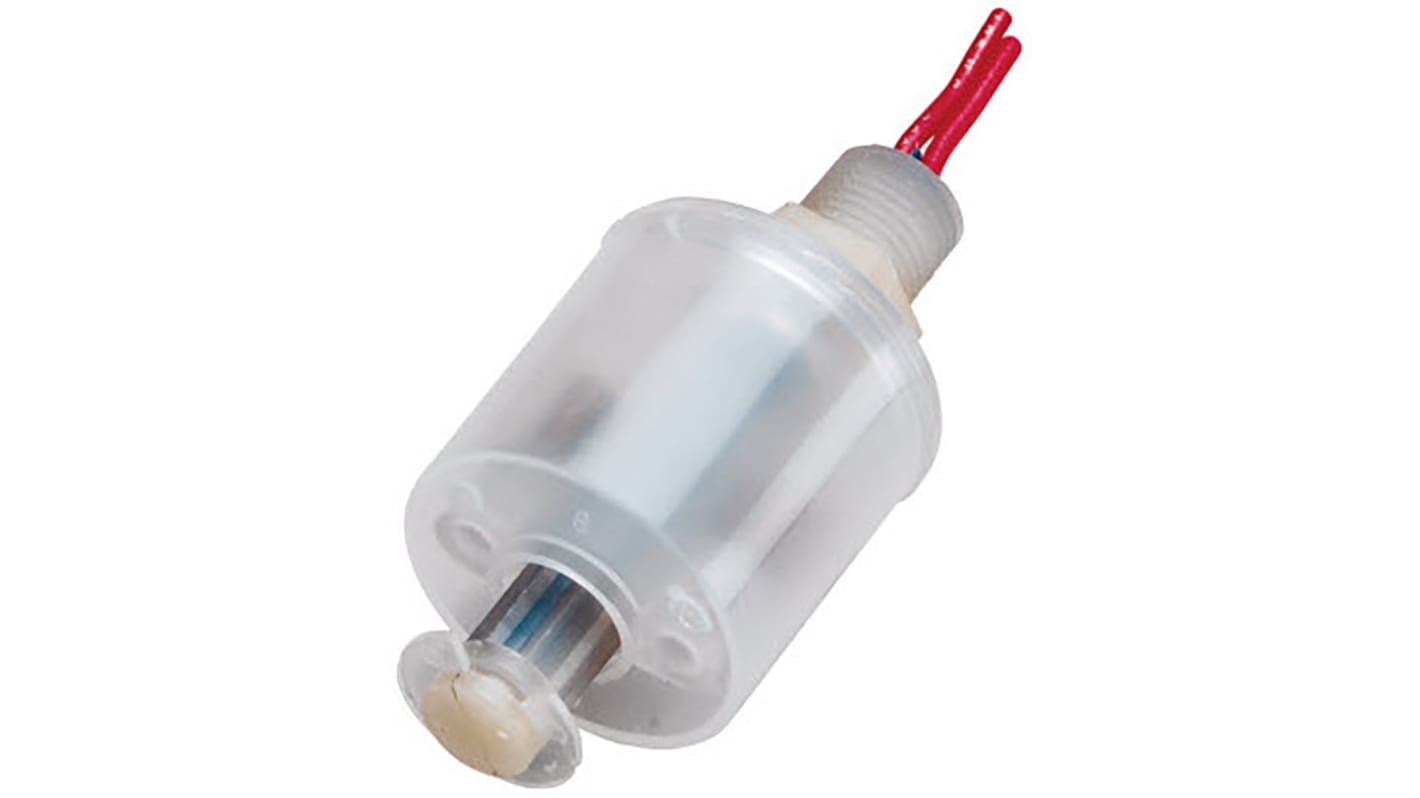

Level Switch, PVDF, 1/8" NPT, 10bar

  • RS Stock No. 122-8386
  • Mfr. Part No. 173250
  • Manufacturer Gems Sensors
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Gems Sensors LS-3

The LS-3 Series of Gems sensors level switches. Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use. Easy to install, the LS-3 can be used either way up and is easy switched between normally closed open operation by reversing the float. With its compact size NPT threads, there is sure to be a switch for your application. All models are highly reliable and excellent quality.

Specifications
Attribute Value
Device Type Float
Mounting Type Vertical
Switch Output SPST NO
Body Material PVDF
Cable Length 24in
Minimum Operating Temperature -40°C
Maximum Operating Temperature +121°C
Maximum Pressure 3bar
Standards Met CE, CSA, E45168, EU-directive 2011/65/EC, NSF 169, UL
Series LS-3
53 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 272.25
units
Per unit
1 +
MYR272.25
