Units	Per Unit	Per Pack**
100 - 700	MYR0.331	MYR33.10
800 - 1400	MYR0.319	MYR31.90
1500 +	MYR0.303	MYR30.30

Select all	Attribute	Value
	Brand	Nexperia
	Logic Family	74LVC
	Logic Function	D Type
	Input Type	Single Ended
	Output Type	Single Ended
	Output Signal Type	Single Ended
	Triggering Type	Positive Edge
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SC-88
	Pin Count	6
	Set/Reset	Master Reset
	Number of Elements per Chip	1
	Maximum Propagation Delay Time @ Maximum CL	17 ns @ 50 pF
	Maximum Operating Supply Voltage	5.5 V
	Dimensions	2.2 x 1.35 x 1mm
	Width	1.35mm
	Height	1mm
	Length	2.2mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	1.65 V
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Nexperia
	Logic Family 74LVC
	Logic Function D Type
	Input Type Single Ended
	Output Type Single Ended
	Output Signal Type Single Ended
	Triggering Type Positive Edge
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SC-88
	Pin Count 6
	Set/Reset Master Reset
	Number of Elements per Chip 1
	Maximum Propagation Delay Time @ Maximum CL 17 ns @ 50 pF
	Maximum Operating Supply Voltage 5.5 V
	Dimensions 2.2 x 1.35 x 1mm
	Width 1.35mm
	Height 1mm
	Length 2.2mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 1.65 V
	Minimum Operating Temperature -40 °C

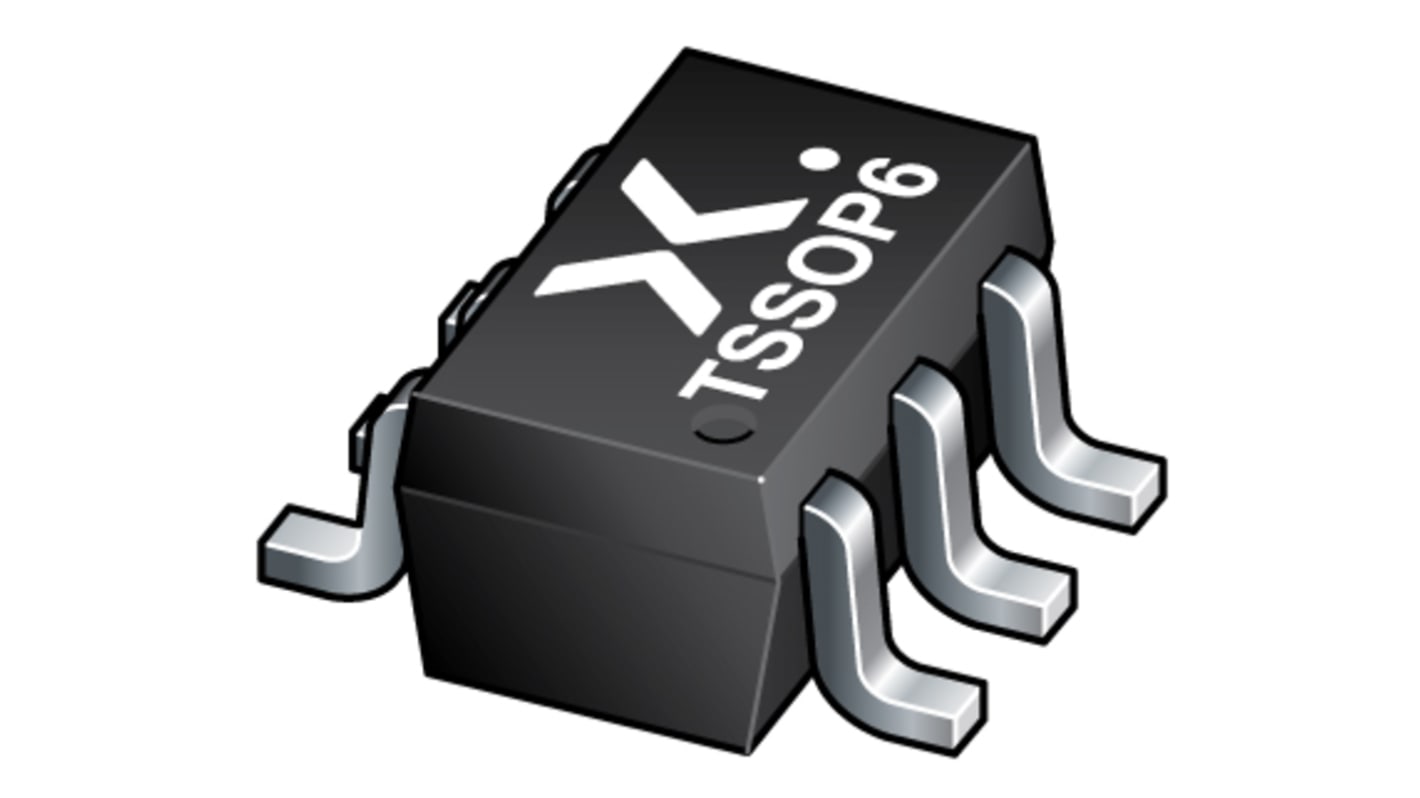

Nexperia 74LVC1G175GW,125 D Type Flip Flop IC, Single Ended, 6-Pin SC-88
