Units	Per Unit	Per Tube**
40 - 40	MYR2.271	MYR90.84
80 - 120	MYR2.221	MYR88.84
160 +	MYR2.18	MYR87.20

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	4000
	Logic Function	D Type
	Input Type	Single Ended
	Output Type	3 State
	Output Signal Type	Single Ended
	Triggering Type	Positive Edge
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	16
	Set/Reset	Master Reset
	Number of Elements per Chip	4
	Maximum Propagation Delay Time @ Maximum CL	600 ns @ 5 V
	Maximum Operating Supply Voltage	18 V
	Dimensions	9.9 x 3.91 x 1.58mm
	Minimum Operating Supply Voltage	3 V
	Minimum Operating Temperature	-55 °C
	Length	9.9mm
	Height	1.58mm
	Width	3.91mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Texas Instruments
	Logic Family 4000
	Logic Function D Type
	Input Type Single Ended
	Output Type 3 State
	Output Signal Type Single Ended
	Triggering Type Positive Edge
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 16
	Set/Reset Master Reset
	Number of Elements per Chip 4
	Maximum Propagation Delay Time @ Maximum CL 600 ns @ 5 V
	Maximum Operating Supply Voltage 18 V
	Dimensions 9.9 x 3.91 x 1.58mm
	Minimum Operating Supply Voltage 3 V
	Minimum Operating Temperature -55 °C
	Length 9.9mm
	Height 1.58mm
	Width 3.91mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +125 °C

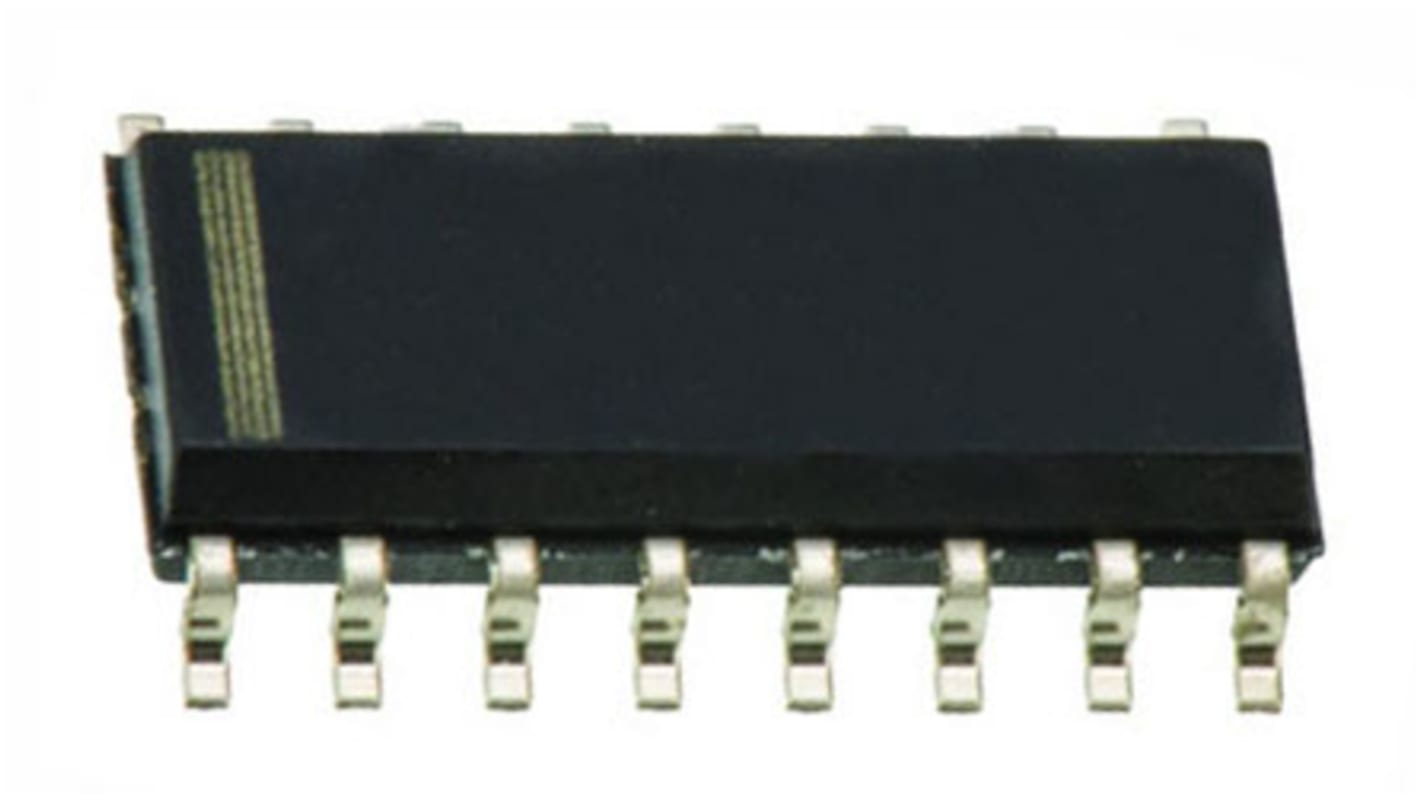

Texas Instruments CD4076BM Quad D Type Flip Flop IC, 3-State, 16-Pin SOIC

FREE delivery for orders over MYR500.00

4000 Series Flip-Flops & Latches, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
