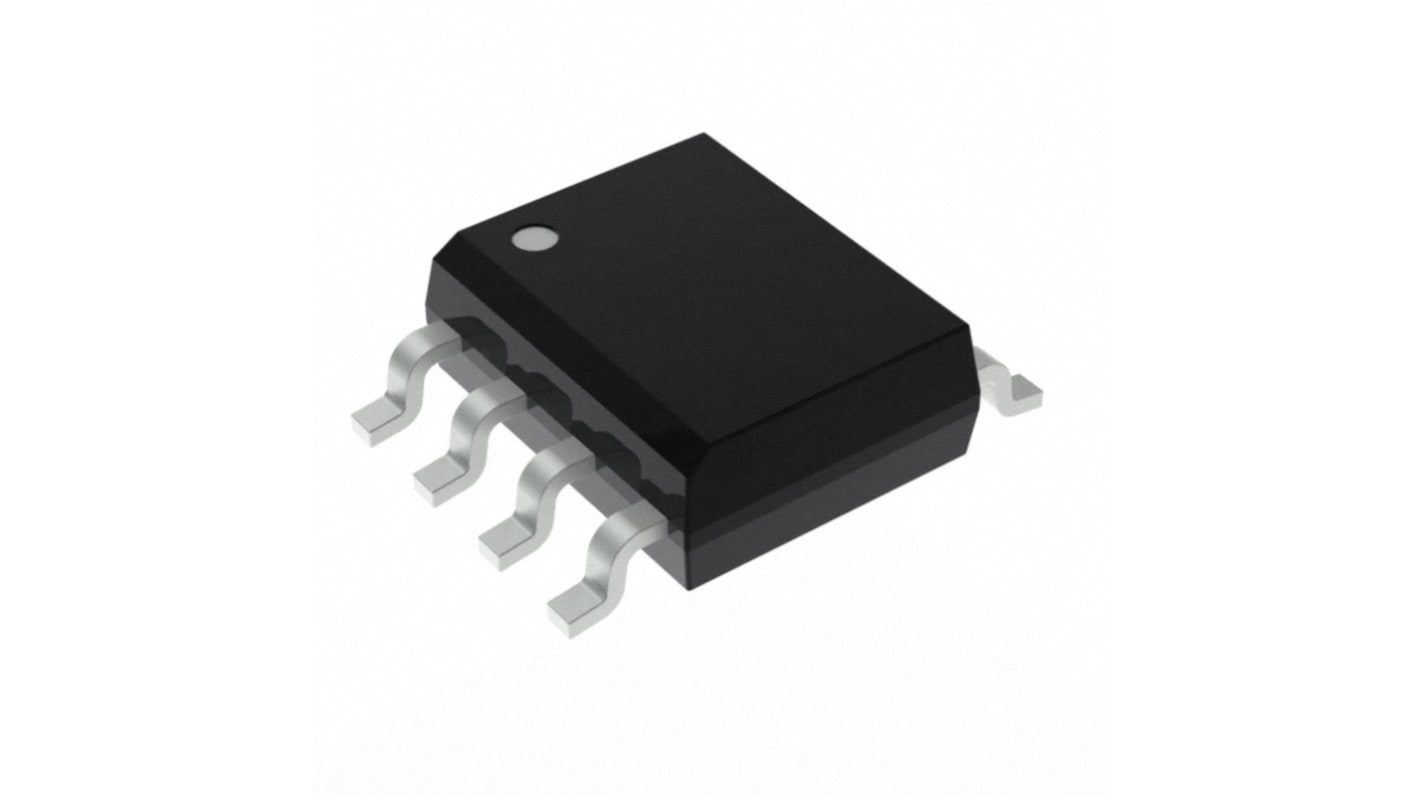

Infineon NOR 64Mbit SPI Flash Memory 8-Pin SOIC, S25FL064LABMFI013
- RS Stock No.:
- 215-5783P
- Mfr. Part No.:
- S25FL064LABMFI013
- Manufacturer:
- Infineon
Bulk discount available
Subtotal 530 units (supplied in a tube)*
MYR4,814.52
FREE delivery for orders over RM 500.00
In Stock
- Plus 910 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 530 - 1040 | MYR9.084 |
| 1050 + | MYR8.81 |
*price indicative
- RS Stock No.:
- 215-5783P
- Mfr. Part No.:
- S25FL064LABMFI013
- Manufacturer:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Memory Size | 64Mbit | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 8 M x 8 | |
| Mounting Type | Surface Mount | |
| Cell Type | NOR | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Block Organisation | Symmetrical | |
| Length | 5.28mm | |
| Height | 1.9mm | |
| Width | 5.28mm | |
| Dimensions | 5.28 x 5.28 x 1.9mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of Words | 8MB | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Random Access Time | 8ns | |
| Number of Bits per Word | 8bit | |
| Automotive Standard | AEC-Q100 | |
| Series | S25FL | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Memory Size 64Mbit | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 8 M x 8 | ||
Mounting Type Surface Mount | ||
Cell Type NOR | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Supply Voltage 3.6 V | ||
Block Organisation Symmetrical | ||
Length 5.28mm | ||
Height 1.9mm | ||
Width 5.28mm | ||
Dimensions 5.28 x 5.28 x 1.9mm | ||
Maximum Operating Temperature +85 °C | ||
Number of Words 8MB | ||
Minimum Operating Temperature -40 °C | ||
Maximum Random Access Time 8ns | ||
Number of Bits per Word 8bit | ||
Automotive Standard AEC-Q100 | ||
Series S25FL | ||
The Cypress Semiconductor FL-L family connects to a host system via a Serial Peripheral Interface (SPI). Traditional SPI single bit serial input and output (Single I/O or SIO) is supported as well as optional two bit (Dual I/O or DIO) and four bit wide Quad I/O (QIO), and Quad Peripheral Interface (QPI) commands. In addition, there are Double Data Rate (DDR) read commands for QIO and QPI that transfer address and read data on both edges of the clock.
Serial Peripheral Interface (SPI) with Multi-I/O
Read
Program Architecture
Erase Architecture
100,000 Program-Erase Cycles, minimum
20 Year Data Retention, minimum
Security Features
Read
Program Architecture
Erase Architecture
100,000 Program-Erase Cycles, minimum
20 Year Data Retention, minimum
Security Features
