Select all	Attribute	Value
	Brand	SMC
	Port Connection	G 1/4
	Maximum Operating Pressure	10 bar
	Manufacturer Series	AW20
	Drain Type	Automatic
	Filtration Size	5µm
	Port Connection Thread Size	1/4 in
	Maximum Ambient Operating Temperature	+60°C
	Minimum Process Operating Temperature	-5°C
	Minimum Operating Pressure	0.1MPa
	Port Connection Thread Standard	G
	Proof Pressure	1.5MPa
	Maximum Process Operating Temperature	+60°C
	Minimum Ambient Operating Temperature	-5°C
	Bowl Material	Polycarbonate
	Ambient Operating Temperature Range	-5 → +60°C
	Process Operating Temperature Range	-5 → +60°C

	Select all
	Brand SMC
	Port Connection G 1/4
	Maximum Operating Pressure 10 bar
	Manufacturer Series AW20
	Drain Type Automatic
	Filtration Size 5µm
	Port Connection Thread Size 1/4 in
	Maximum Ambient Operating Temperature +60°C
	Minimum Process Operating Temperature -5°C
	Minimum Operating Pressure 0.1MPa
	Port Connection Thread Standard G
	Proof Pressure 1.5MPa
	Maximum Process Operating Temperature +60°C
	Minimum Ambient Operating Temperature -5°C
	Bowl Material Polycarbonate
	Ambient Operating Temperature Range -5 → +60°C
	Process Operating Temperature Range -5 → +60°C

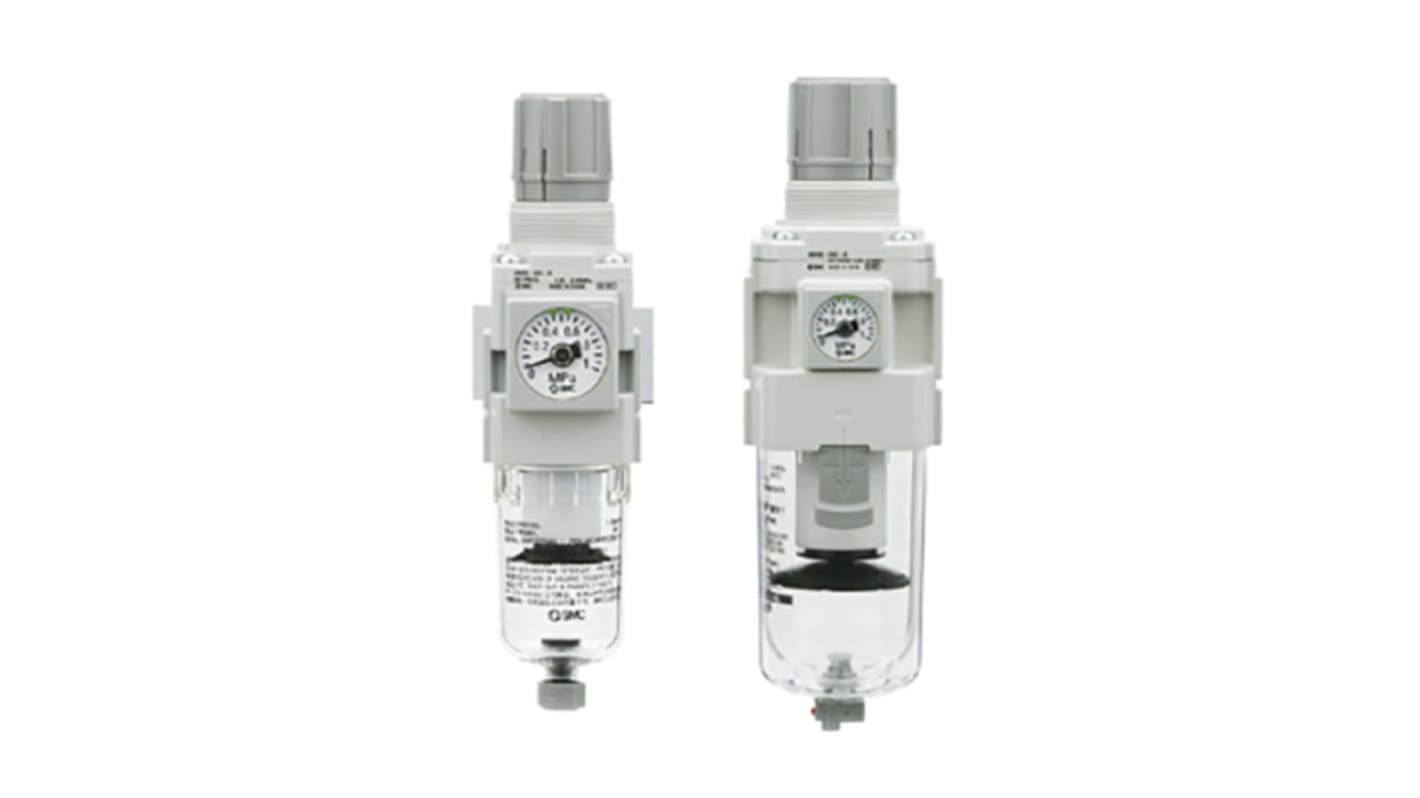

SMC AW20 Filter Regulator, 5μm, G 1/4, Automatic, 10 bar

FREE delivery for orders over MYR500.00

Modular Filter Regulator AW10-B - AW40-B
