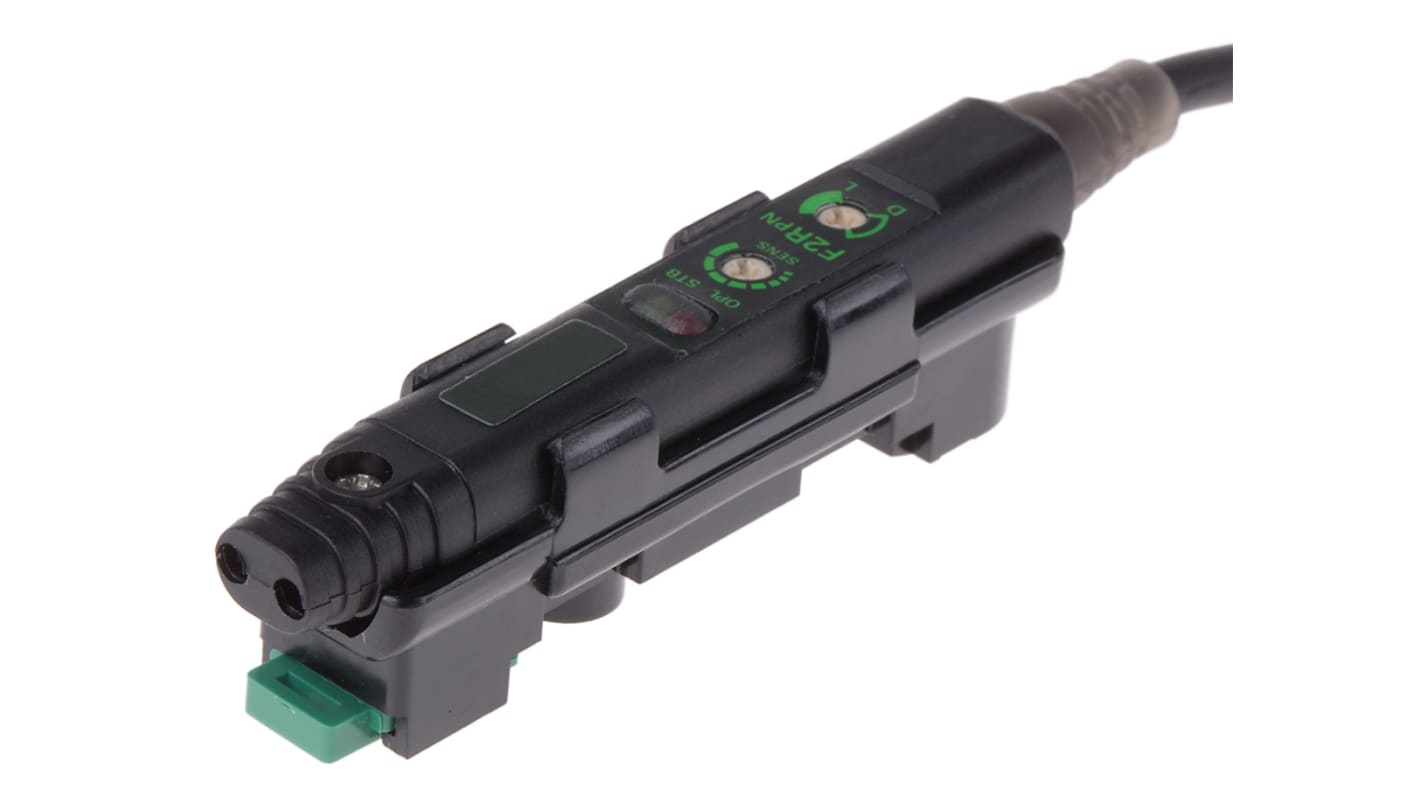

RS PRO Fibre Optic Sensor, PNP Output, 12 → 24 V dc
- RS Stock No.:
- 377-8447
- Manufacturer:
- RS PRO
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,131.72
| Units | Per Unit |
| 1 - 5 | MYR1,131.72 |
| 6 - 29 | MYR1,107.95 |
| 30 + | MYR911.84 |
- RS Stock No.:
- 377-8447
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Miniature Fibre Optic Amplifier
Easy to use fibre amplifier
Light ON/dark ON selectable
500μS response time
DIN rail mounting
Unique shape allows sensor to be tied in cable loom
Compatible with other manufacturers’ cuttable fibres
Light ON/dark ON selectable
500μS response time
DIN rail mounting
Unique shape allows sensor to be tied in cable loom
Compatible with other manufacturers’ cuttable fibres
Specifications
Attribute | Value |
|---|---|
| Output Type | PNP |
| Response Time | 500 μs |
| Light Source | Red LED |
| Electrical Connection | Cable |
| Switching Frequency | 1 kHz |
| Housing Material | PE, Plastic |
| Supply Voltage | 12 → 24 V dc |
| Length | 10mm |
| Standards Met | RoHS Compliant |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Mounting Type | DIN Rail |
