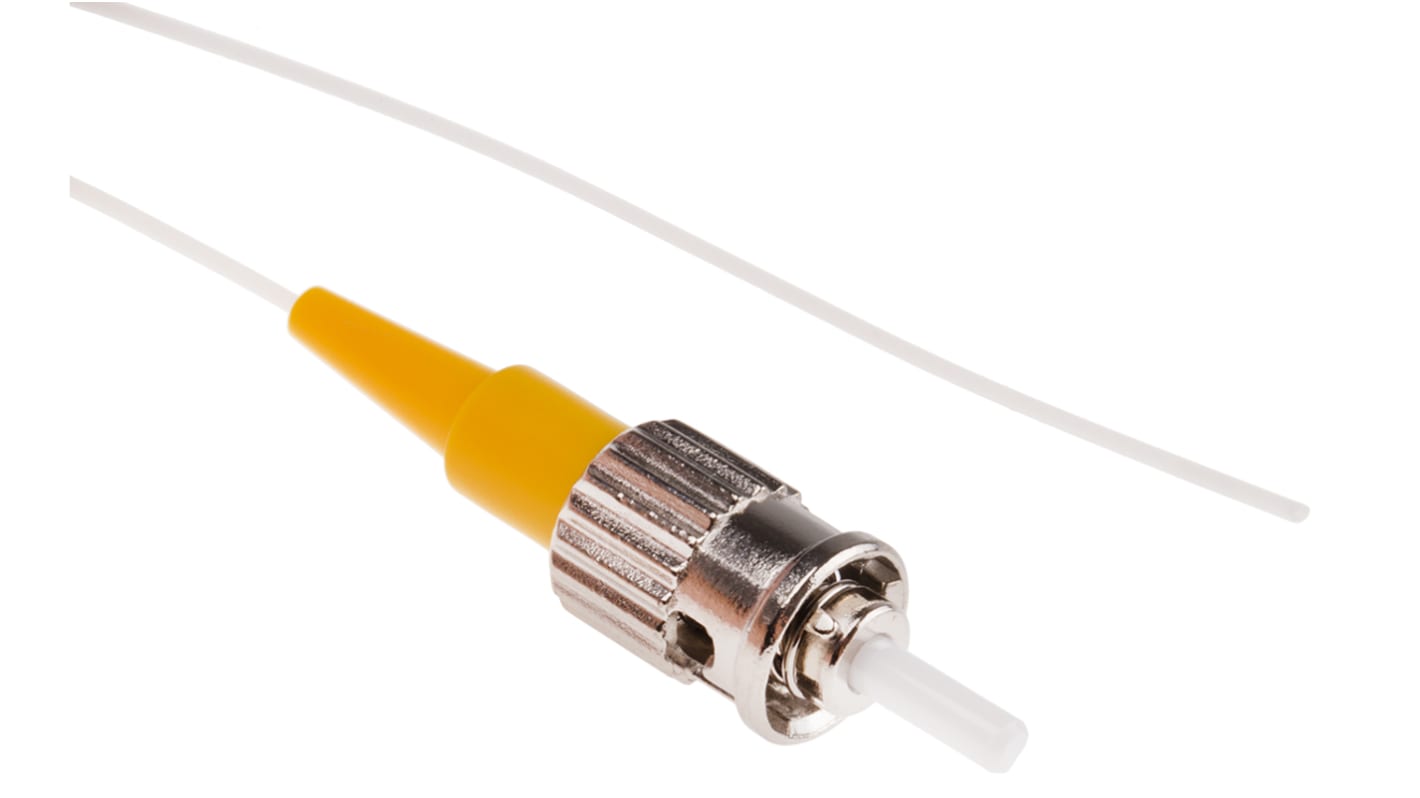

RS PRO ST to Unterminated Simplex Single Mode OS1, OS2 Fibre Optic Cable, 900μm, 1m
- RS Stock No.:
- 121-3943
- Manufacturer:
- RS PRO
212 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR18.23
| Units | Per Unit |
| 1 - 49 | MYR18.23 |
| 50 - 249 | MYR17.86 |
| 250 + | MYR14.71 |
- RS Stock No.:
- 121-3943
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Pro Fibre Optic Pigtails
From the trusted RS Pro brand, a range of fibre optic pigtails with ST, E2000 LC and SC connections.
The single mode pigtails are terminated with standard connectors and also feature a protective cap on the zirconia ceramic ferrule. The fibre optic cable assemblies in this range are available in standard white 1 m lengths or packs of 12 assorted colours in 10 m lengths
Part number 121-3943 ST simplex 1 m
Part number 121-3944 E2000 simplex 1 m
Part number 121-4221 LC simplex 2 m each with assorted colours
Part number 121-4222 SC simplex 2 m each with assorted colours
Part number 121-4223 LC simplex OM3 2 m each with assorted colours
Part number 121-4224 SC simplex OM3 2 m each with assorted colours
The single mode pigtails are terminated with standard connectors and also feature a protective cap on the zirconia ceramic ferrule. The fibre optic cable assemblies in this range are available in standard white 1 m lengths or packs of 12 assorted colours in 10 m lengths
Part number 121-3943 ST simplex 1 m
Part number 121-3944 E2000 simplex 1 m
Part number 121-4221 LC simplex 2 m each with assorted colours
Part number 121-4222 SC simplex 2 m each with assorted colours
Part number 121-4223 LC simplex OM3 2 m each with assorted colours
Part number 121-4224 SC simplex OM3 2 m each with assorted colours
Features and Benefits
LSZH buffer
REACH, RoHS
900um tight buffer or easy strip structure
REACH, RoHS
900um tight buffer or easy strip structure
Applications
Telecom
Patch panels
Wall Boxes
ODFS
Splice cassettes
Patch panels
Wall Boxes
ODFS
Splice cassettes
Specifications
Attribute | Value |
|---|---|
| Length | 1m |
| Connector 1 | ST |
| Propagation Mode | Single Mode |
| Connector 2 | Unterminated |
| Terminated/Unterminated | Terminated |
| Core Diameter | 900µm |
| Cable Construction | Simplex |
| Fibre Type | OS1, OS2 |
| Maximum Operating Temperature | +60°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -20°C |
| Maximum Pulling Tension | 6N |
| Standards Met | 2002/95/EC, IEC 61034-1/2, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754, IEC 61754-1/2, IEC 61755, ISO/IEC 11801, ISO/IEC 60332-1, ISO/IEC 60793, ISO/IEC 60794, ISO/IEC 61753, REACH/SvHC Compliant, TIA/EIA-568-C.3 |
