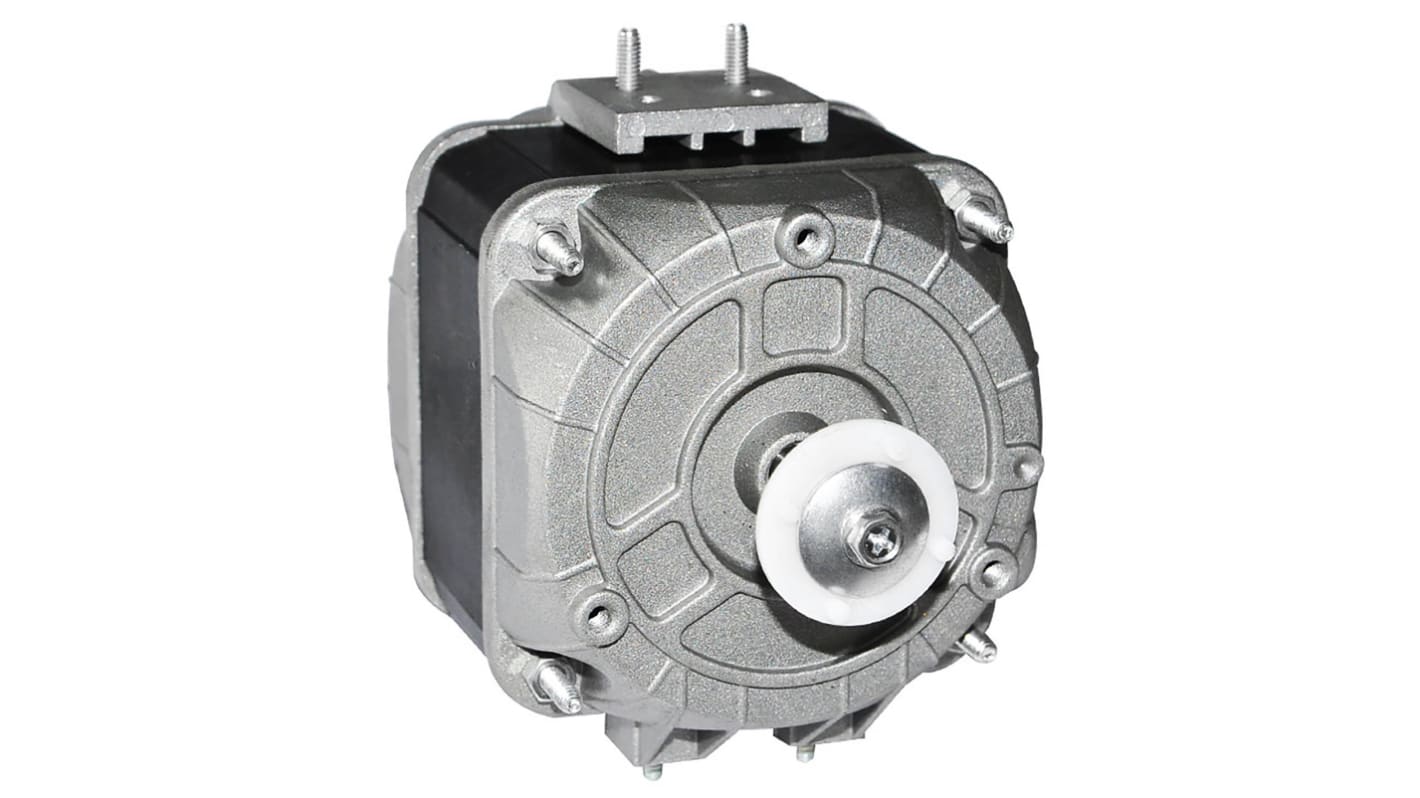

RS PRO 38W Fan Motor for use with RS PRO Impellers and Motor Brackets
- RS Stock No.:
- 221-7687
- Manufacturer:
- RS PRO
Price Each
MYR180.93
144 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Units | Per Unit |
|---|---|
| 1 - 4 | MYR180.93 |
| 5 + | MYR148.90 |
- RS Stock No.:
- 221-7687
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO AC Motors
RS PRO is proud to introduce a series of AC motors designed for use in motor drive and control applications. These electric square shaded-pole motors offer a counter-clockwise rotation with 1300 rpm rotational speed and use alternating current with 220 to 240 V supply voltage. Each AC motor is constructed with die-cast aluminium housing, dual ball bearings and supplied with three wire leads 500 mm in length.
Features and Benefits
- Square Shaded-pole Motor
- Counter clockwise rotation
- Robust and maintenance-free
- Multi-function external and internal rotors
Specification
- Housing: Die cast aluminium
- Electrical connection: 3 x 0.5 mm with brass Lead tips
- AC Motor: Shaded pole AC, Class B insulation
- IP Rating: IP42
- Dielectric Strength: 500VAC/min <1mA
- Rated Voltage: 220-240 V
- Operating Temperature: -30 °C ∼ +60 °C
- Insulation Resistance: ≥10M Ohm @ 500 VDC
- VDE Certification
RS PRO AC Motors Variants
Things to consider
RS PRO offers a wide selection of fan blades and brackets compatible with these AC motors. Browse our range using the improved filters to find your ideal solution.
Application
- Motor Drive & Control
- Low-torque applications
Specifications
Attribute | Value |
|---|---|
| For Use With | RS PRO Impellers and Motor Brackets |
| Maximum Rotational Speed | 1300rpm |
| Power Consumption | 38W |
| Supply Voltage | 220 → 240 V ac |
