Vent-Axia Lo-Carbon TX9WW T-Series Rectangular Ceiling Mounted, Wall Mounted Window Fan, Intake, 332 (Low) m³/h, 571
- RS Stock No.:
- 136-9961
- Mfr. Part No.:
- Lo-Carbon TX9WW
- Manufacturer:
- Vent-Axia
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR5,221.23
| Units | Per Unit |
| 1 + | MYR5,221.23 |
- RS Stock No.:
- 136-9961
- Mfr. Part No.:
- Lo-Carbon TX9WW
- Manufacturer:
- Vent-Axia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

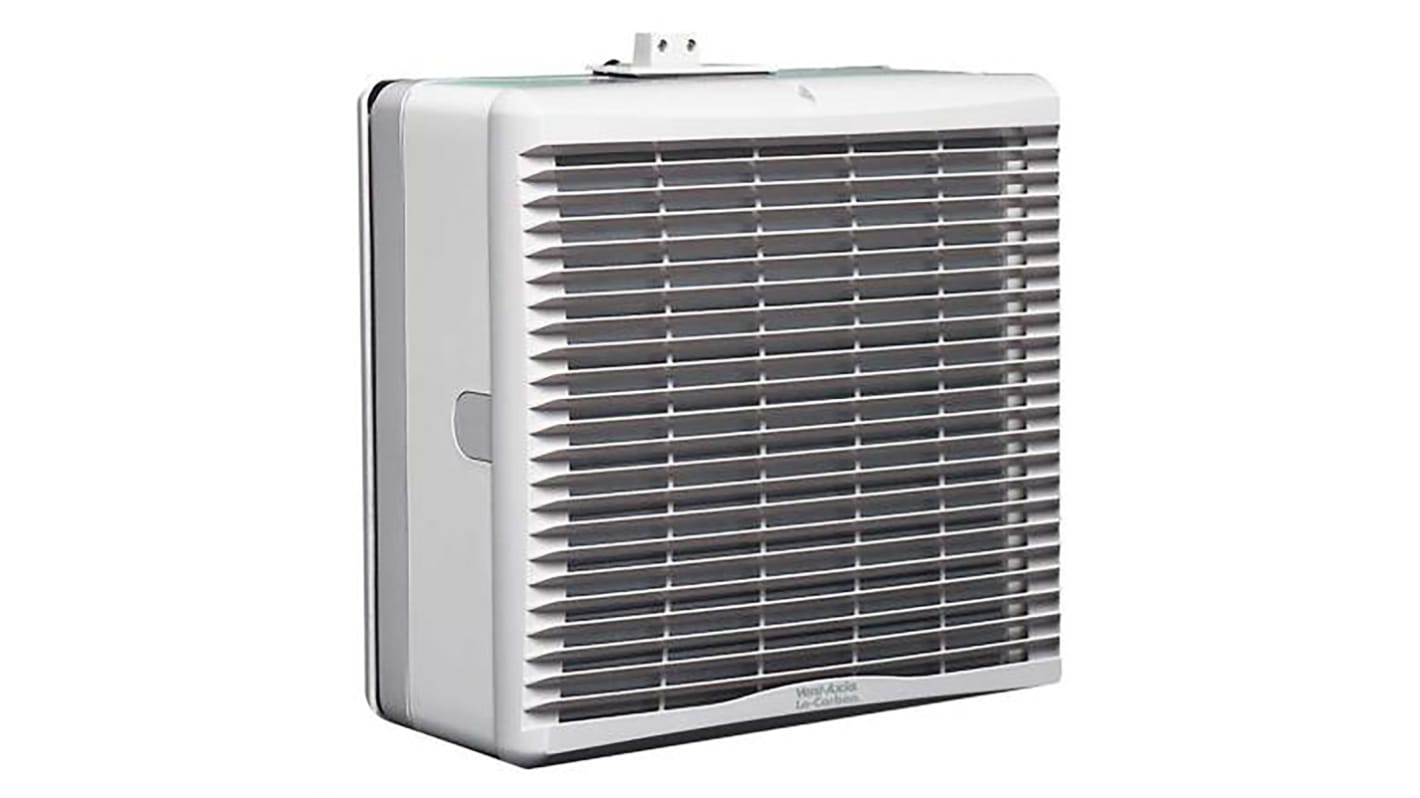

Vent Axia Lo-Carbon T-Series Wired Window Fan
This wired window fan from Vent-Axia is part of the Lo-Carbon T-Series Fan range. It utilises a newly designed grille combined with a high performance extract/intake ventilating unit. This unit can be installed through a single or double glazing and material up to 32 mm thick. Most thicknesses can be accommodated, but anything greater the use of extended fixing rods will be needed.
The T-Series fan is descreet, in terms of looks and noise. On full power it's comparable to the noise generated by a standard 4 inch domestic fan (32 dB).
The shutter is electronically controlled by an actuator with a damped action giving it a quiet operation during the instant opening and closing.
When used with the LoWatt T-Series controller, the shutter can be set to open with the fan motor switched OFF to provide natural ventilation.
Features and Benefits
Quiet ventilating fan
Fitted to most walls
Electronically controlled shutter
Intake and Extract functionality
Wired or Wire-less fan models available
Reduces your carbon footprint
Long life Lo-Carbon motor lasts twice as
long as conventional motors
long as conventional motors
Up to 70% energy saving
Easy fit connector Top Socket, standard on
all models
all models
Specifications
Attribute | Value |
|---|---|
| Function | Extraction, Intake |
| Fan Type | Extractor |
| Air Flow | 332 (Low) m³/h, 571 (Medium) m³/h, 761 (High) m³/h |
| Noise Level | 40dB |
| Mounting | Ceiling Mounted, Wall Mounted |
| Face Dimensions | 302 x 304mm |
| Depth | 189mm |
| Face Height | 302mm |
| Face Width | 304mm |
| Duct Size | 225mm |
| Supply Voltage | 230 V ac |
| Configuration | Rectangular |
| Termination Type | Screw |
| Special Features | Easy Fit Connector Top Socket Standard on all Models, Long Life Lo-Carbon Motor Lasts Twice as Long as Conventional Motors, Reduces Your Carbon Footprint, Up to 70% Energy Saving, Wired or Wireless Fan Models Available |
| Series | T-Series |
