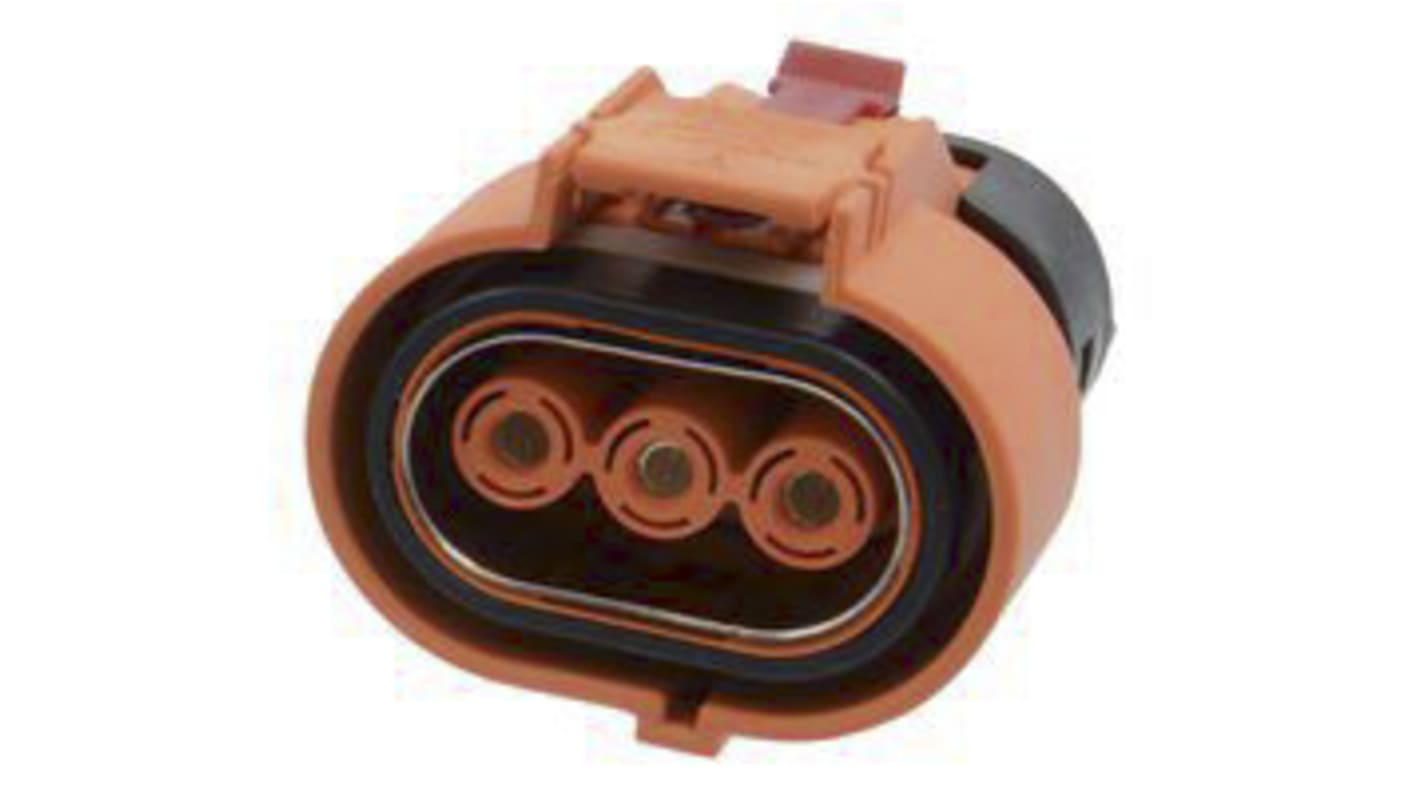

Amphenol Industrial, Epower Lite RADSOK Plug with HVIL EV Connector Plug, 7.5 to 70A
- RS Stock No.:
- 124-4048
- Mfr. Part No.:
- ELP2A03 / C10-738026-2AS3
- Manufacturer:
- Amphenol Industrial
Subtotal (1 unit)**
MYR100.16
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR100.16 |
| 5 - 9 | MYR98.43 |
| 10 + | MYR96.97 |
**price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-4048
- Mfr. Part No.:
- ELP2A03 / C10-738026-2AS3
- Manufacturer:
- Amphenol Industrial
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Range | RADSOK | |
| Series | Epower Lite | |
| Connector Type | RADSOK Plug with HVIL | |
| Number of Rows | 1 | |
| Number of Contacts | 2 | |
| Wire Size | 6 mm² | |
| Current Rating | 7.5 to 70A | |
| Operating Voltage | 800V | |
| Connector Gender | Male | |
| Contact Gender | Female | |
| Orientation | Straight | |
| Key Type | A | |
| Termination Method | Crimp | |
| Mounting Type | Cable Mount | |
| IP Rating | IP67 | |
| Better World Claim | Renewable energy solution | |
| Colour | Orange | |
| Better World Product | Yes | |
| Pin Diameter | 3.6mm | |
| Standards Met | IEC 60529, UL 94 V-0 | |
| Applications | EV/HEV | |
| Maximum Operating Temperature | +125°C | |
| For Use With | 2 Position ePower-Lite Receptacle with HVIL | |
| Height | 36.8mm | |
| Depth | 57.8mm | |
| Minimum Operating Temperature | -40°C | |
| Width | 41.8mm | |
