    Amphenol ICC RJHS Series Female RJ45 Connector, Through Hole, Cat5e, Tin Plated Copper Alloy Shield

    Amphenol ICC
    RS Stock No.:
    170-2596
    Mfr. Part No.:
    RJHS-4381
    Manufacturer:
    Amphenol ICC

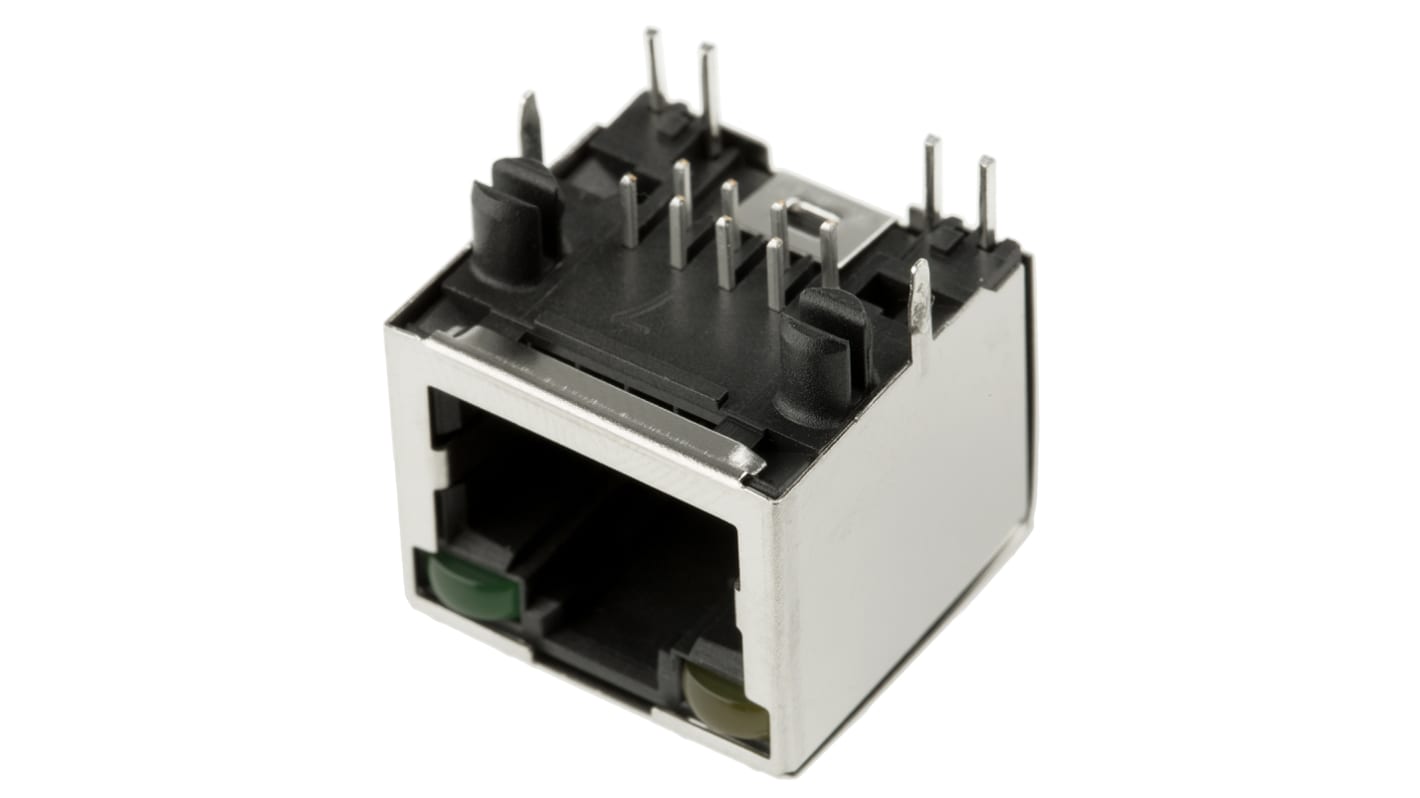

    This image is representative of the product range

    View all Ethernet Connectors
    300 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each (In a Bag of 100)

    MYR7.41

    unitsPer UnitPer Bag*
    100 - 400MYR7.41MYR741.00
    500 +MYR6.669MYR666.90
    *price indicative
    RS Stock No.:
    170-2596
    Mfr. Part No.:
    RJHS-4381
    Manufacturer:
    Amphenol ICC

    Legislation and Compliance


    Product Details

    Amphenol LED Sockets


    From Amphenol, this range of PCB mounting RJ45 (8//8 way) socket have built-in LEDs and are designed for category 5 performance. Available in both shielded and unshielded versions, a thermoplastic body ensures a component that is robust and compact. The range is available not only with discrete green and yellow LEDs, but also with bi-colour LED versions. The bi-colour types have two LEDs, both with green/yellow indication. All models are highly reliable and excellent quality.

    Features & Benefits


    A maximum contact resistance of 10 mΩ

    A minimum insulation resistance of 500 mΩ

    A current rating of 1.5A

    A voltage rating of 125 V ac

    RJ45 Socket LED Ratings


    Forward Current: 7 mA

    Forward Voltage: 2 V to 1 V (Typical.)

    Reverse Voltage: 5 V Minimum

    Power Dissipation Green: 24 mW

    Power Dissipation Yellow: 36 mW

    Note

    For discrete types, viewing from the front of the socket, the green LED is on the right, the yellow on the left.
    The Amphenol ICC, single port, right angle female PCB mounting RJ45 8 way socket have built-in LEDs and is designed for category 5 performance. It has phosphor bronze contact material.

    Maximum contact resistance of 10 mΩ
    Minimum insulation resistance of 500 mΩ
    Current rating of 1.5A
    Voltage rating of 125 V ac
    Highly reliable and excellent quality

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    Attribute
    Value
    Ethernet Connector TypeRJ45 Connector
    GenderFemale
    LAN CategoryCat5e
    Mounting TypeThrough Hole
    Number of Ports1
    Number of Ways8
    Shield TypeTin Plated Copper Alloy
    OrientationRight Angle
    Length16.51mm
    Depth15.75mm
    SeriesRJHS
    Contact MaterialPhosphor Bronze
    Contact PlatingGold over Nickel
