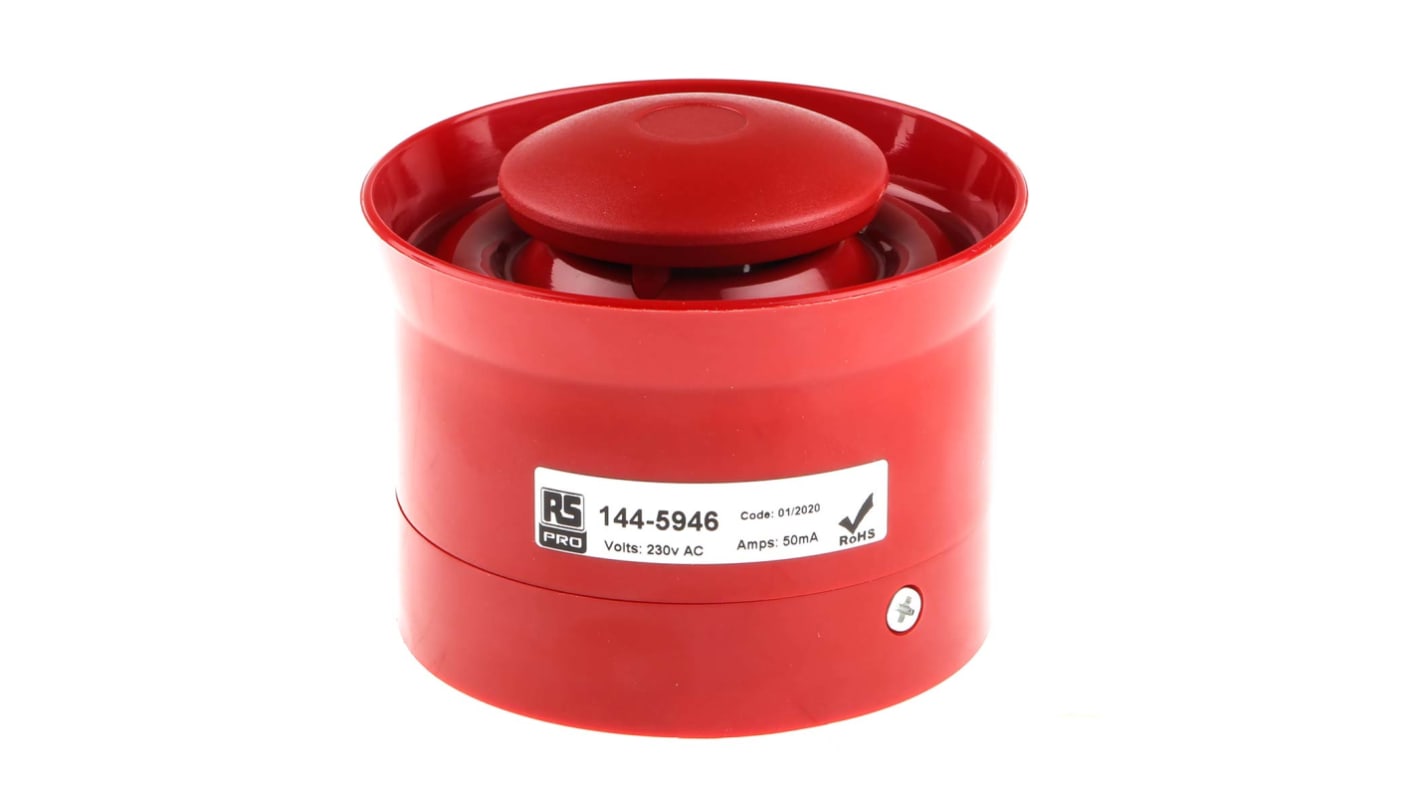

AE40M Red 8 Tone Electronic Sounder, 98 260 V ac

  • RS Stock No. 144-5946
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

8 Tone AE40M Electronic Sounder and Accessories

The AE40M electronic sounder from Moflash has 8 selectable tones and is ideal for fire alarmand industrial applications. The sounder housing is made from red ABS plastic and has a deep base with side entry via an M20 conduit knockout for IP65 protection.

Low current consumption
8 selectable tones, 100dB
Frequency 800-2580 Hz
M20 conduit knockout
IP54/65 protection
ABS plastic housing
RoHS compliant
CE marked

Note

Suitable Base - 144-5947

cEC1302 clicker is a compact dev kit with a mikroBUS™ socket for click board connectivity. It carries Microchip’s CEC1302, a 32-bit ARM® Cortex™-M4 microcontroller with an integrated cryptographic engine.

Continuously rated
Higher sound output
Economical
6XLWDEOHIRUSDQHOFRQGXLWER[
or surface mounting
Deep base version - Dustproof
and Weatherproof

Specifications
Attribute Value
Supply Voltage 98 260 V ac
IP Rating IP54, IP65
Current Type AC
Number Of Tones 8
Housing Colour Red
Mounting Style Conduit Box, Panel Mount, Surface Mount
Diameter 101 mm
Minimum Decibel 95dB
Maximum Decibel 112dB
Series AE40M
Base Length 100mm
Base Width 93 (Dia.)mm
Maximum Temperature +70°C
Housing Material ABS
Tone Type Alarm
Minimum Temperature -40°C
Standards Met CE
92 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 158.11
units
Per unit
1 +
MYR158.11
