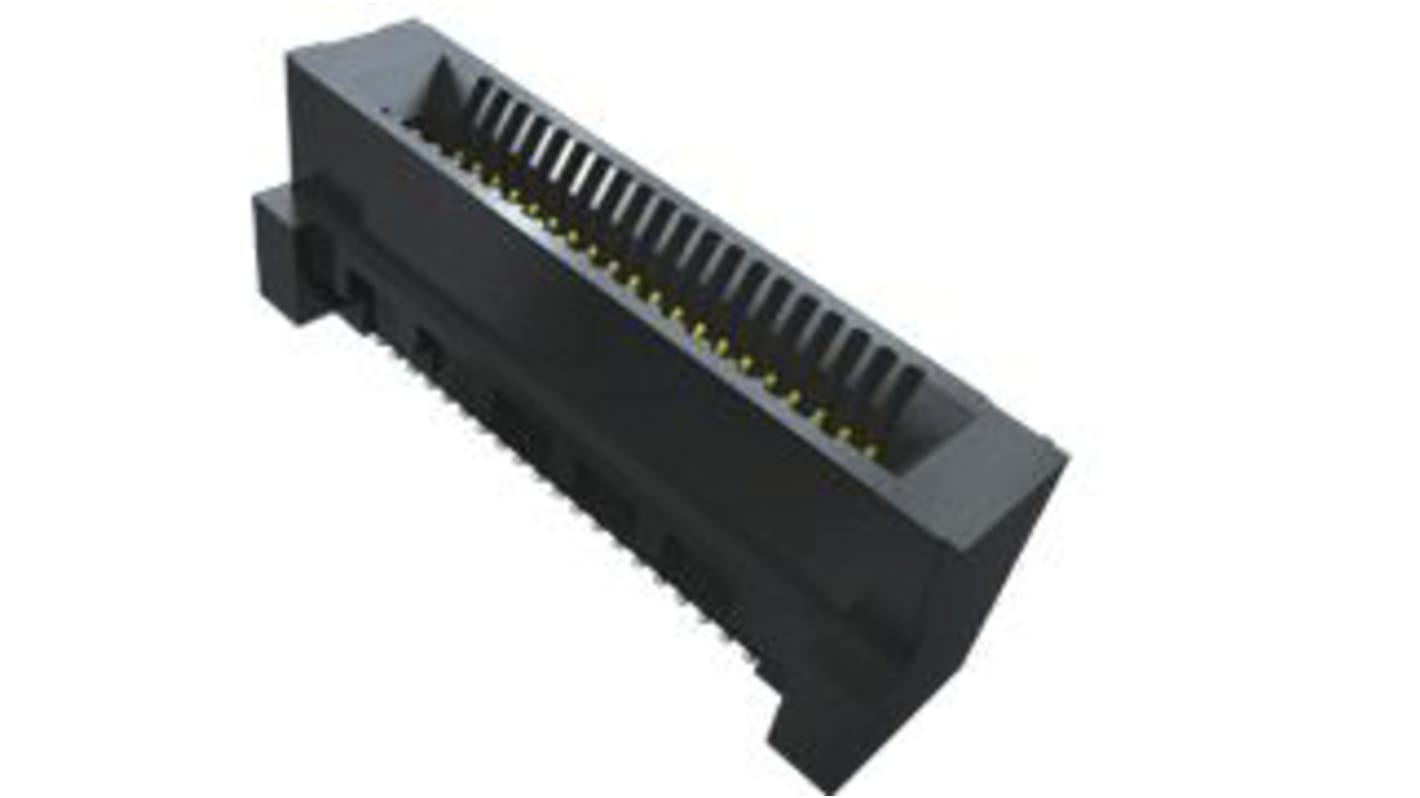

Samtec HSEC8-DV Series Vertical Female Edge Connector, Surface Mount, 100-Contacts, 0.8mm Pitch, 2-Row, Solder
- RS Stock No.:
- 180-2452
- Mfr. Part No.:
- HSEC8-150-01-S-DV-A-K-TR
- Manufacturer:
- Samtec
Temporarily out of stock - back order for despatch 29/05/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 275)
MYR27.217
| Units | Per Unit | Per Reel* |
| 275 - 1100 | MYR27.217 | MYR7,484.675 |
| 1375 + | MYR24.496 | MYR6,736.40 |
| *price indicative | ||
- RS Stock No.:
- 180-2452
- Mfr. Part No.:
- HSEC8-150-01-S-DV-A-K-TR
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 100 |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 2.8A |
| Housing Material | Liquid Crystal Polymer |
| Series | HSEC8-DV |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Depth | 7.98mm |
| Width | 7mm |
| Length | 44.6mm |
| Card Type | Card Edge |
