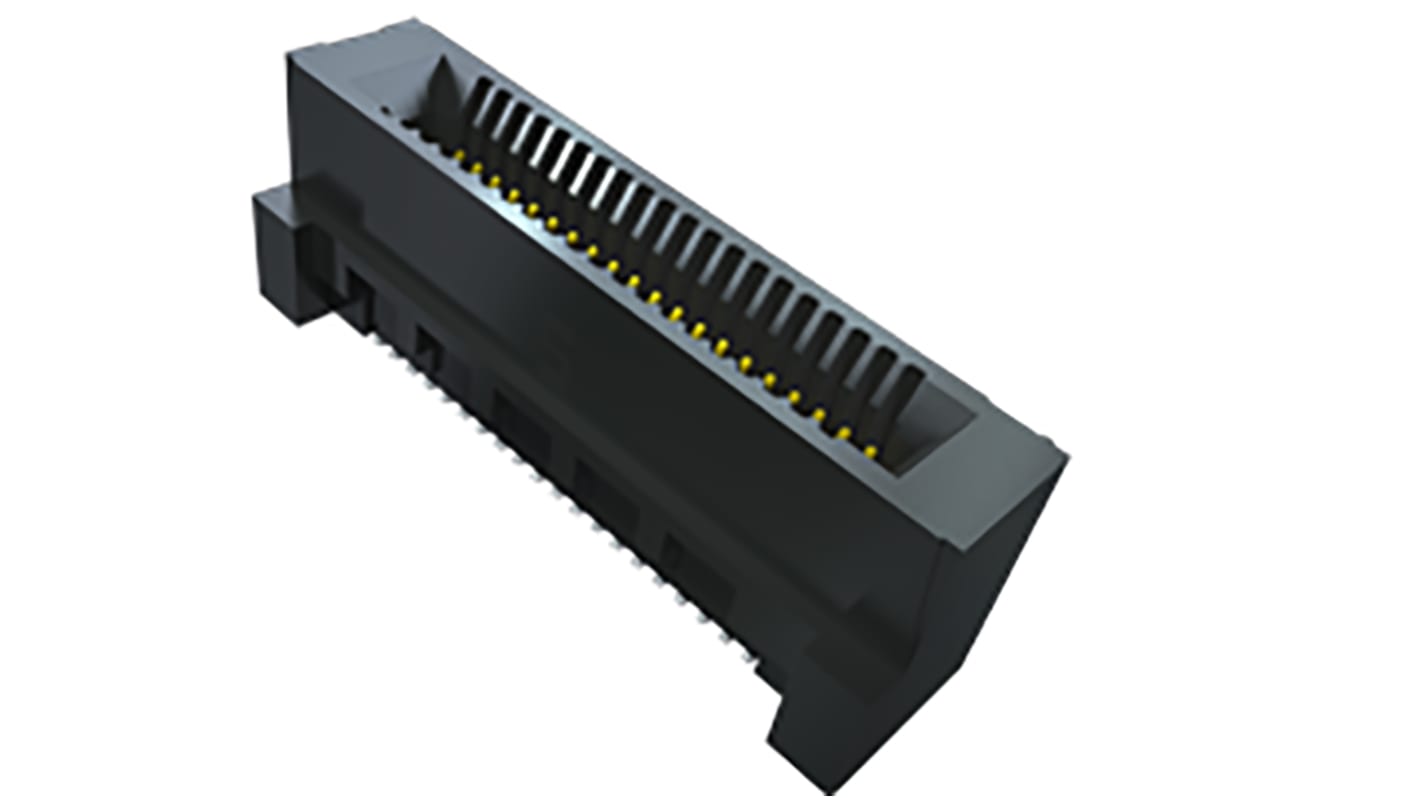

Samtec HSEC8-DV Series Vertical Female Edge Connector, Surface Mount, 60-Contacts, 0.8mm Pitch, 2-Row, Solder
- RS Stock No.:
- 179-9048
- Mfr. Part No.:
- HSEC8-130-01-S-DV-A
- Manufacturer:
- Samtec
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR26.19
| Units | Per Unit |
| 1 - 17 | MYR26.19 |
| 18 - 34 | MYR24.78 |
| 35 + | MYR22.99 |
- RS Stock No.:
- 179-9048
- Mfr. Part No.:
- HSEC8-130-01-S-DV-A
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 60 |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 2.8A |
| Housing Material | Liquid Crystal Polymer |
| Series | HSEC8-DV |
| Width | 7mm |
| Length | 28.6mm |
| Maximum Operating Temperature | +125°C |
| Card Type | Card Edge |
| Depth | 7.8mm |
| Minimum Operating Temperature | -55°C |
