Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Output Voltage	19 V
	Product Type	Display Driver
	Input Voltage	5.5 to 38 V
	Sub Type	LED Driver
	Dimming Operation	Global Dimming, Register, 7-bit PWM local brightness control
	Terminal Type	Solder
	IP Rating	IP55
	Operating Modes	Bus Driven Mode (BDM), Standalone mode (SAM)
	Driver Current	6 to 60 mA
	LED Voltage	19 V
	Series	ALED1262ZT
	Standards/Approvals	RoHS
	Number of Outputs	12
	Primary Type	12 Channel LED driver

	Select all
	Brand STMicroelectronics
	Output Voltage 19 V
	Product Type Display Driver
	Input Voltage 5.5 to 38 V
	Sub Type LED Driver
	Dimming Operation Global Dimming, Register, 7-bit PWM local brightness control
	Terminal Type Solder
	IP Rating IP55
	Operating Modes Bus Driven Mode (BDM), Standalone mode (SAM)
	Driver Current 6 to 60 mA
	LED Voltage 19 V
	Series ALED1262ZT
	Standards/Approvals RoHS
	Number of Outputs 12
	Primary Type 12 Channel LED driver

Designed for automotive applications

12 constant current output channels

19 V current generator rated voltage

Output current: from 6 mA to 60 mA

Current programmable by a single external resistor

7-bit PWM local brightness control

Slow turn-on/off time, gradual output delay and dithered clock for EMI reduction

Error detection for open LEDs

Supply voltage: from 5.5 V to 38 V

Thermal shutdown and overtemperature alert

Standalone and bus-driven mode

Custom configuration by OTP with Redundancy and ECC

400 kHz fast I²C Interface with selectable extended Hamming encoding

Wired-OR error flag connection

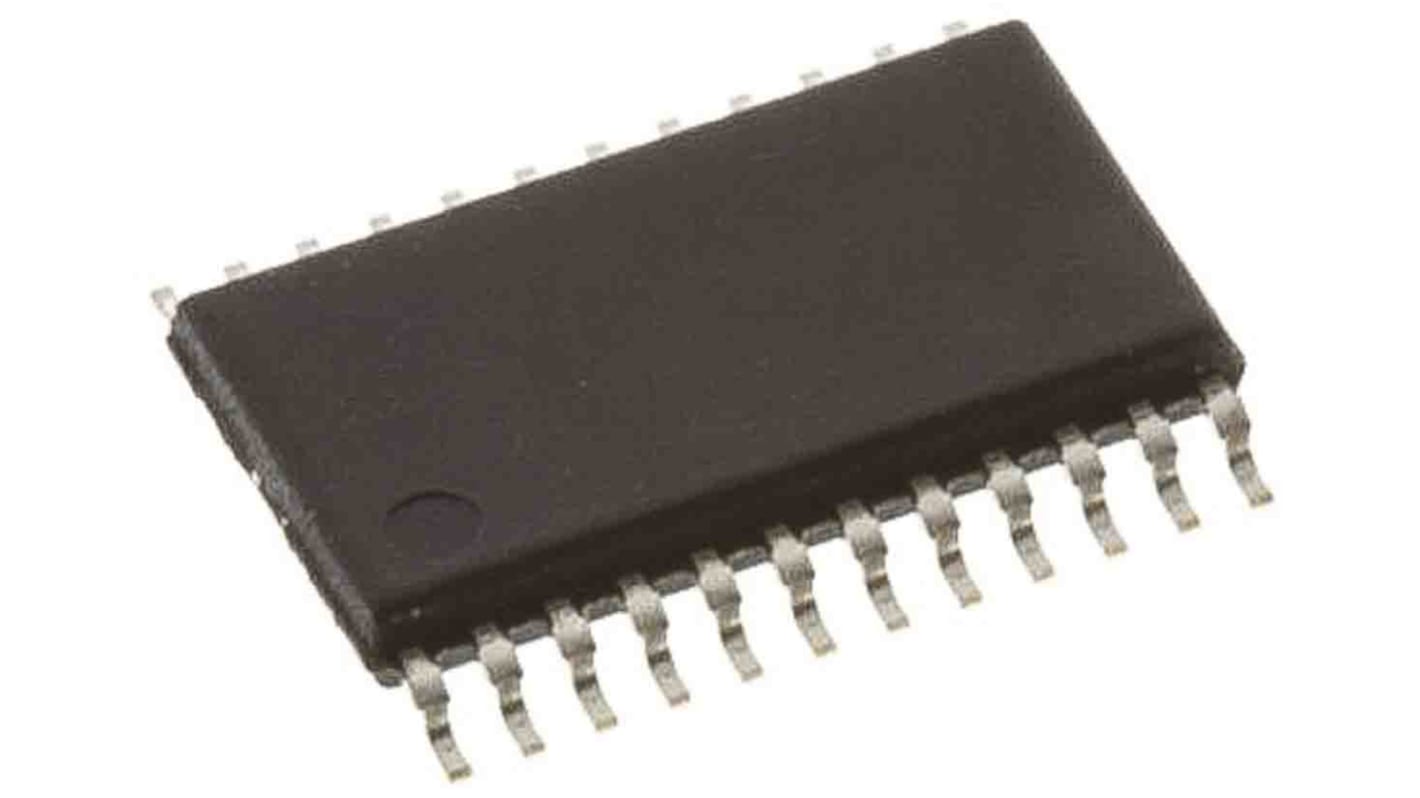

STMicroelectronics LED Driver, 19 V Output, 6 to 60 mA Global Dimming, Register, 7-bit PWM local brightness control
