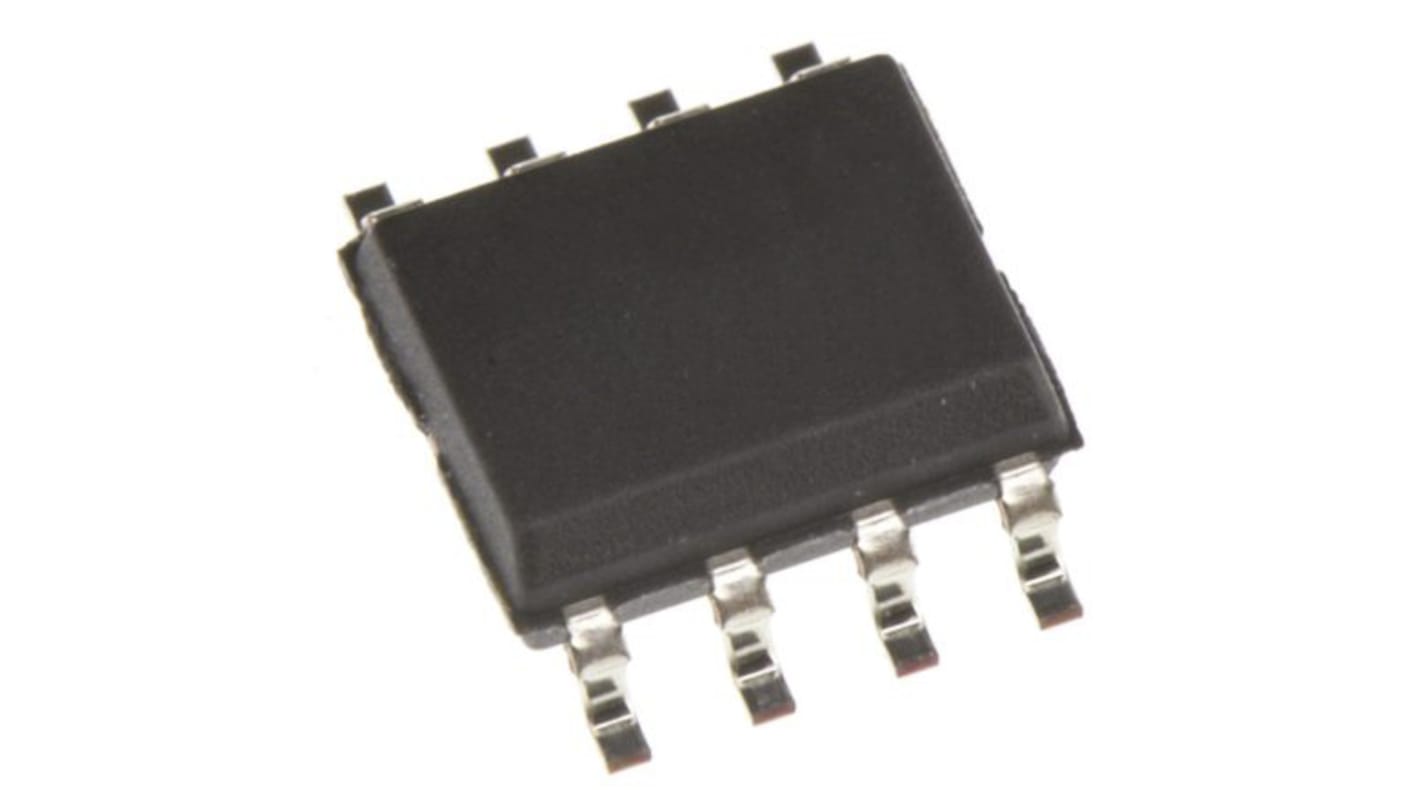

STMicroelectronics STCS05ADR SO Display Driver, 8 Pin, 3 → 5.5 V
- RS Stock No.:
- 188-9212
- Mfr. Part No.:
- STCS05ADR
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 08/04/2025, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 2500)
MYR5.092
| Units | Per Unit | Per Reel* |
| 2500 + | MYR5.092 | MYR12,730.00 |
| *price indicative | ||
- RS Stock No.:
- 188-9212
- Mfr. Part No.:
- STCS05ADR
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
The STCS05A is a BiCMOS constant current source designed to provide a precise constant current starting from a varying input voltage source. The main target is to replace discrete components solution for driving LEDs in low voltage applications such as 5 V, 12 V or 24 V giving benefits in terms of precision, integration and reliability. The current is set with external resistor up to 0.5 A with a ± 10 % precision
a dedicated pin allows implementing PWM dimming. An external capacitor allows setting the slope for the current rise from tens of microseconds to tens of milliseconds allowing reduction of EMI. An open-drain pin output provides information on load disconnection condition.
Slope control with external cap
LED disconnection diagnostic
Up to 40 V input voltage
Up to 0.5 A output current
Less than 0.5 V voltage overhead
Shutdown pin
PWM dimming pin
Applications
LED constant current supplying for varying input voltages
Low voltage lighting
Small appliances LED lighting
Car LED lights
LED disconnection diagnostic
Up to 40 V input voltage
Up to 0.5 A output current
Less than 0.5 V voltage overhead
Shutdown pin
PWM dimming pin
Applications
LED constant current supplying for varying input voltages
Low voltage lighting
Small appliances LED lighting
Car LED lights
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Package Type | SO |
| Display Type | LED |
| Number of Pins | 8 |
| Supply Voltage | 3 → 5.5 V |
| Maximum Supply Current | 0.5A |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150°C |
| Width | 4mm |
| Height | 1.65mm |
| Length | 5mm |
