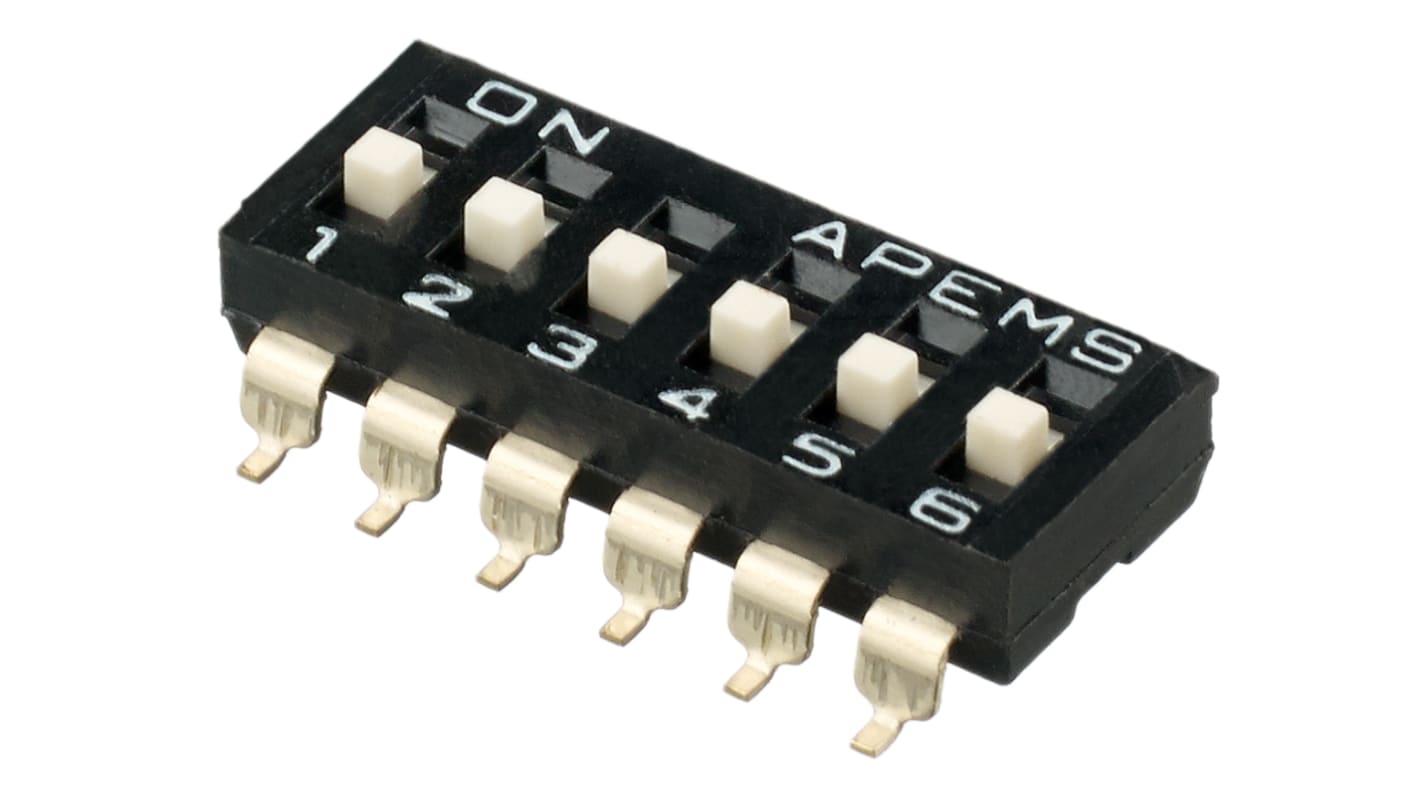

APEM 6 Way Surface Mount DIP Switch SPST, Raised Actuator Slide Actuator
- RS Stock No.:
- 877-2270
- Mfr. Part No.:
- IKD0603101
- Manufacturer:
- APEM
Bulk discount available
Subtotal (1 tube of 28 units)**
MYR174.78
1148 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Tube** |
|---|---|---|
| 28 - 7812 | MYR6.242 | MYR174.776 |
| 7840 - 15652 | MYR6.132 | MYR171.696 |
| 15680 + | MYR5.977 | MYR167.356 |
**price indicative
- RS Stock No.:
- 877-2270
- Mfr. Part No.:
- IKD0603101
- Manufacturer:
- APEM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Positions | 6 | |
| Mounting Type | Surface Mount | |
| Contact Configuration | SPST | |
| Contact Material | Phosphor Bronze (Moving Contact) | |
| Package Style | DIP | |
| Actuator Type | Raised Actuator Slide | |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +85°C | |
| Voltage Rating | 24 V dc, 50V dc | |
| Dielectric Strength | 500V ac | |
Select all | ||
|---|---|---|
Brand APEM | ||
Number of Positions 6 | ||
Mounting Type Surface Mount | ||
Contact Configuration SPST | ||
Contact Material Phosphor Bronze (Moving Contact) | ||
Package Style DIP | ||
Actuator Type Raised Actuator Slide | ||
Contact Current Rating 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +85°C | ||
Voltage Rating 24 V dc, 50V dc | ||
Dielectric Strength 500V ac | ||
