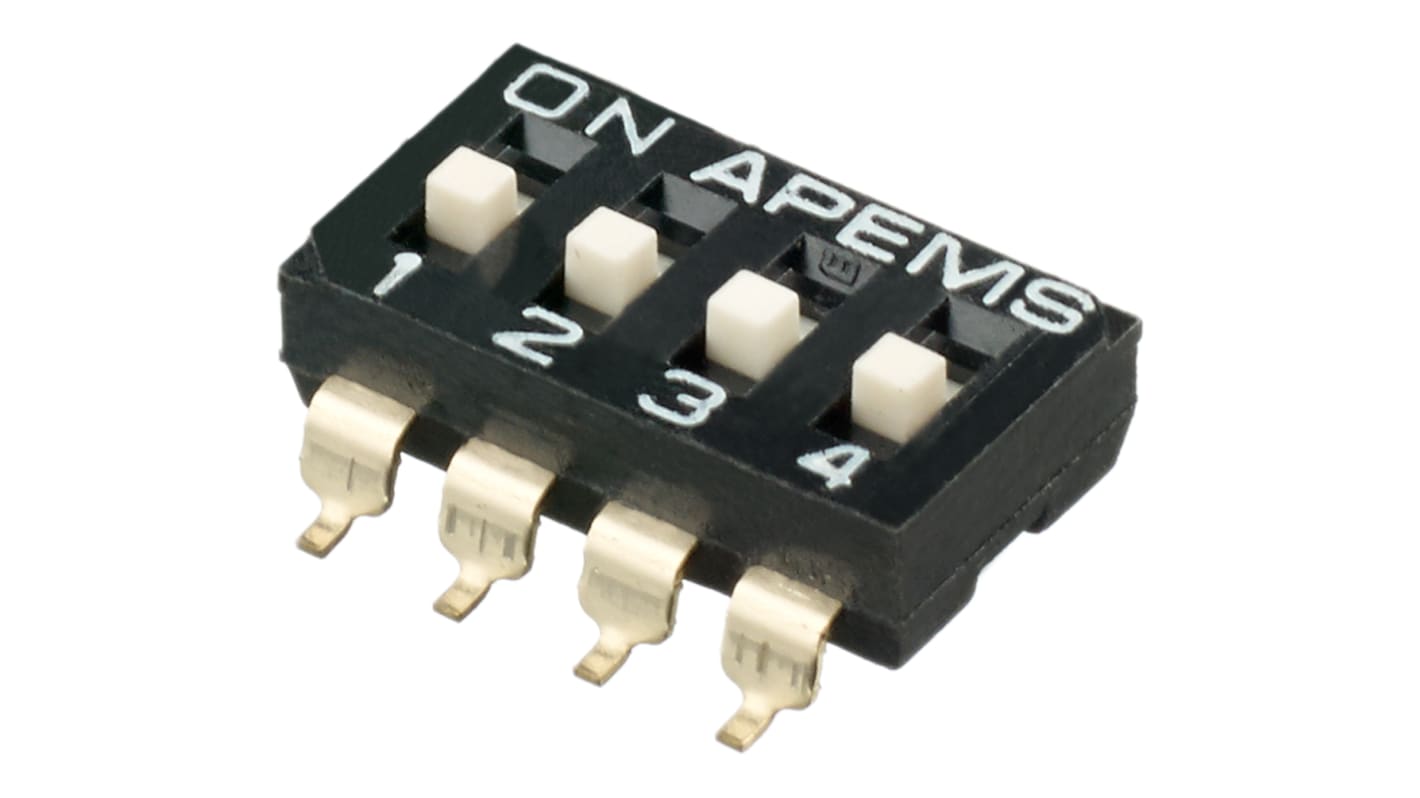

APEM 4 Way Surface Mount DIP Switch SPST, Raised Actuator Slide Actuator
- RS Stock No.:
- 877-2255
- Mfr. Part No.:
- IKD0403101
- Manufacturer:
- APEM
Subtotal (1 bag of 5 units)**
MYR30.72
460 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 5 + | MYR6.144 | MYR30.72 |
**price indicative
- RS Stock No.:
- 877-2255
- Mfr. Part No.:
- IKD0403101
- Manufacturer:
- APEM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Positions | 4 | |
| Mounting Type | Surface Mount | |
| Contact Configuration | SPST | |
| Contact Material | Phosphor Bronze (Moving Contact) | |
| Package Style | DIP | |
| Actuator Type | Raised Actuator Slide | |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +85°C | |
| Voltage Rating | 24 V dc, 50V dc | |
| Dielectric Strength | 500V ac | |
Select all | ||
|---|---|---|
Brand APEM | ||
Number of Positions 4 | ||
Mounting Type Surface Mount | ||
Contact Configuration SPST | ||
Contact Material Phosphor Bronze (Moving Contact) | ||
Package Style DIP | ||
Actuator Type Raised Actuator Slide | ||
Contact Current Rating 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +85°C | ||
Voltage Rating 24 V dc, 50V dc | ||
Dielectric Strength 500V ac | ||
