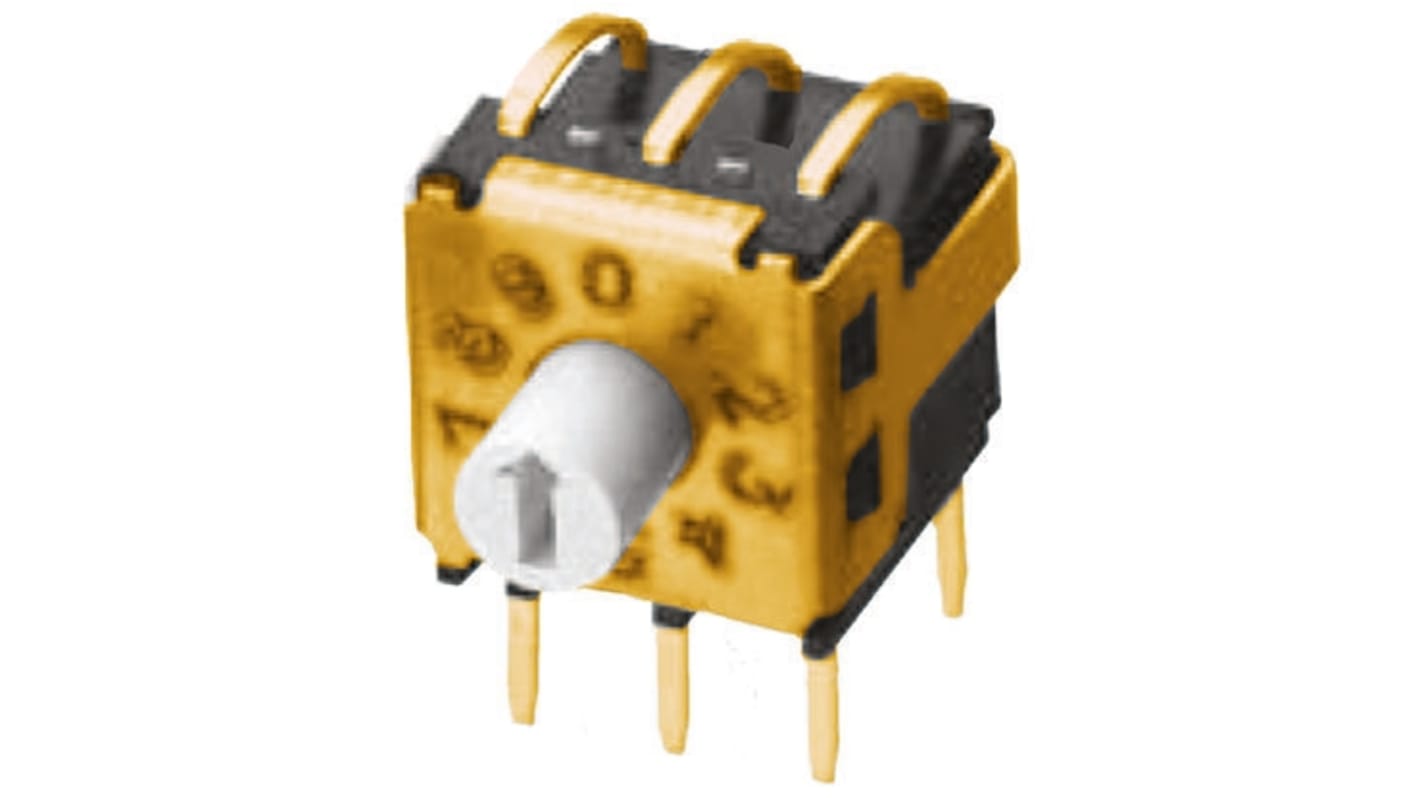

Omron 10 Way Through Hole DIP Switch, Rotary Shaft Actuator
- RS Stock No.:
- 707-2942
- Mfr. Part No.:
- A6KV-102RS
- Manufacturer:
- Omron
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR39.93
| Units | Per Unit |
| 1 - 49 | MYR39.93 |
| 50 - 99 | MYR38.57 |
| 100 + | MYR36.74 |
- RS Stock No.:
- 707-2942
- Mfr. Part No.:
- A6KV-102RS
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Miniature Rotary DIP Switch - A6K/A6KS Series
Miniature 7.2 x 7.2 mm size
Mounting space reduced by 50% (compared to conventional models)
Gold-plated contacts ensure high reliability
Mounting space reduced by 50% (compared to conventional models)
Gold-plated contacts ensure high reliability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Contact Material | Gold Plated |
| Package Style | DIP |
| Actuator Type | Rotary Shaft |
| Contact Current Rating | 25 mA@ 24 V dc |
| Mechanical Life | 20000Operations |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +80°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 250V ac |
