C&K’s series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. C&K DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.

Handheld electronic devices and portable computers
Instrumentation and controls
Address switching for industrial controls
Computers and peripherals (logic switching, data storage devices)
Automation components (such as timers)
Function controlling in numerous applications
Security functions (alarms, access controls, smoke detectors)

Process sealed – withstands soldering and cleaning
Compact size saves space – 36% smaller than traditional 10mm DIP
Crisp, positive detent ensures actuation
Address switching applications
Data storage devices
Instrumentation

Select all	Attribute	Value
	Brand	C & K
	Number of Positions	10
	Mounting Type	Surface Mount
	Contact Material	Beryllium Copper (Contact), Brass (Terminal)
	Package Style	DIP
	Actuator Type	Rotary
	Contact Current Rating	0.4 VA
	Mechanical Life	30000Operations
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-20°C
	Operating Temperature Range	-20 → +85°C
	Voltage Rating	0.4 V ac, 20V ac/dc
	Dielectric Strength	300V ac

	Select all
	Brand C & K
	Number of Positions 10
	Mounting Type Surface Mount
	Contact Material Beryllium Copper (Contact), Brass (Terminal)
	Package Style DIP
	Actuator Type Rotary
	Contact Current Rating 0.4 VA
	Mechanical Life 30000Operations
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -20°C
	Operating Temperature Range -20 → +85°C
	Voltage Rating 0.4 V ac, 20V ac/dc
	Dielectric Strength 300V ac

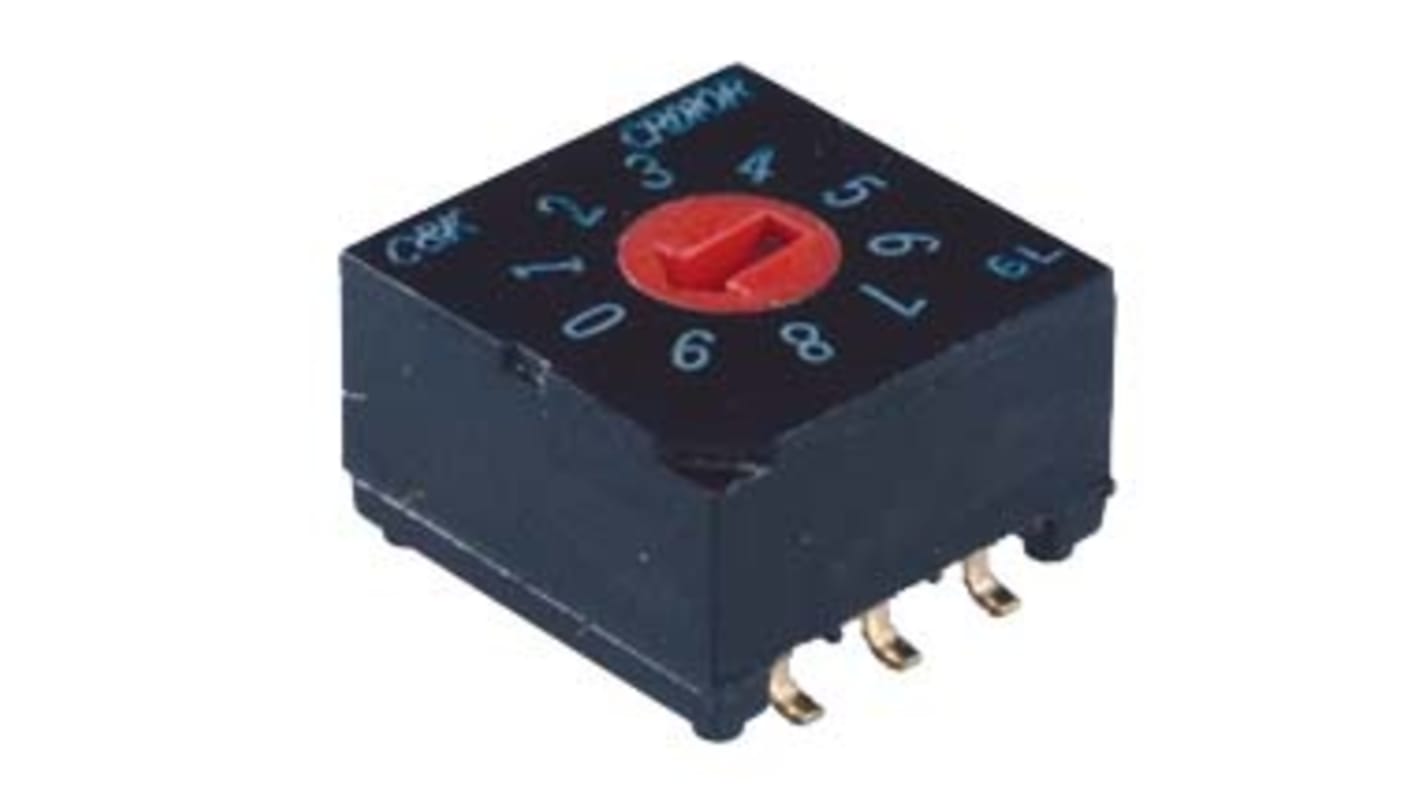

C & K 10 Way Surface Mount DIP Switch, Rotary Actuator
