Weidmüller PRO ECO Switch-Mode Power Supply Unit DIN Rail Power Supply 264V ac AC/DC Input 56V dc, 10 A Output DC 480 W

RS Stock No.:: 923-6539
Mfr. Part No.:: 1469610000
Manufacturer:: Weidmüller

Weidmüller PRO ECO Switch-Mode Power Supply Unit DIN Rail Power Supply 264V ac AC/DC Input 56V dc, 10 A Output DC 480 W

Subtotal (1 unit)*

MYR1,242.15

FREE delivery for orders over RM 500.00

In Stock

Plus 9 unit(s) shipping from 20 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,242.15

*price indicative

RS Stock No.:: 923-6539
Mfr. Part No.:: 1469610000
Manufacturer:: Weidmüller

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Series	PRO ECO
	Product Type	DIN Rail Power Supply
	Sub Type	Switch-Mode Power Supply Unit
	Maximum Output Voltage	56V dc
	Electrical Phase	1
	Number of Outputs	1
	Input Voltage Type	AC/DC
	Power	480W
	Output Current	10A
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Output Voltage Type	DC
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	No
	Depth	120mm
	Height	125mm
	Standards/Approvals	VDE 0100-410/DIN57100-410, IEC 60068-2-6, IEC 1709, IEC 60068-2-27, VDE 0106-101, IEC 61558-2-16, 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8
	Width	100mm
	Maximum Input Voltage	264V ac
	Minimum Input Voltage	85V ac
	Efficiency	93%

	Select all
	Brand Weidmüller
	Series PRO ECO
	Product Type DIN Rail Power Supply
	Sub Type Switch-Mode Power Supply Unit
	Maximum Output Voltage 56V dc
	Electrical Phase 1
	Number of Outputs 1
	Input Voltage Type AC/DC
	Power 480W
	Output Current 10A
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Output Voltage Type DC
	Maximum Operating Temperature 70°C
	Hazardous Area Certification No
	Depth 120mm
	Height 125mm
	Standards/Approvals VDE 0100-410/DIN57100-410, IEC 60068-2-6, IEC 1709, IEC 60068-2-27, VDE 0106-101, IEC 61558-2-16, 61000-4-4, 61000-4-5, 61000-4-6, CE, cULus, EAC, EN 50178 VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8
	Width 100mm
	Maximum Input Voltage 264V ac
	Minimum Input Voltage 85V ac
	Efficiency 93%

COO (Country of Origin):: CN

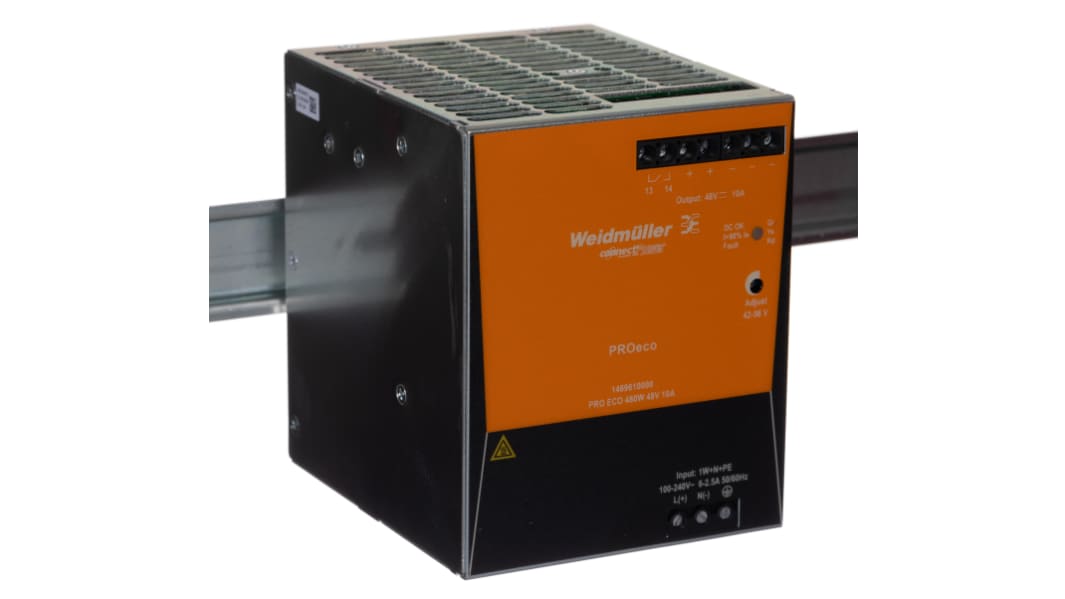

Weidmuller DIN Rail Power Supply, Screw Connection, 48V DC Output Voltage - PRO ECO Series -1469610000

When you want a reliable energy source for your setup, reach for this DIN rail power supply from Weidmuller. This switch-mode unit uses an input voltage of 85 to 264V AC or 80 to 370V DC to provide a steady output voltage of 48V DC, making it just the thing for medium-voltage applications. Its IP20 rating means it's finger-safe and protected against objects larger than 12mm, so you can handle it without worrying about electrical shocks. It's a smooth operator, as it has a low ripple of

Features & Benefits

• Protection against overloads and short circuits to keep systems safe from electrical damage

• Performs reliably in harsh conditions, thanks to its wide operating temperature range between -25°C and +70°C

• LED indicators make it a cinch to monitor

• Mounts horizontally on a standard DIN rail for speedy installation

Applications

• Process control

• Factory automation

• Commercial power management

What are the dimensions of this PSU?

This unit fits easily into tight spaces, thanks to its compact dimensions of 125 (H) x 100 (W) x 120mm (D).
