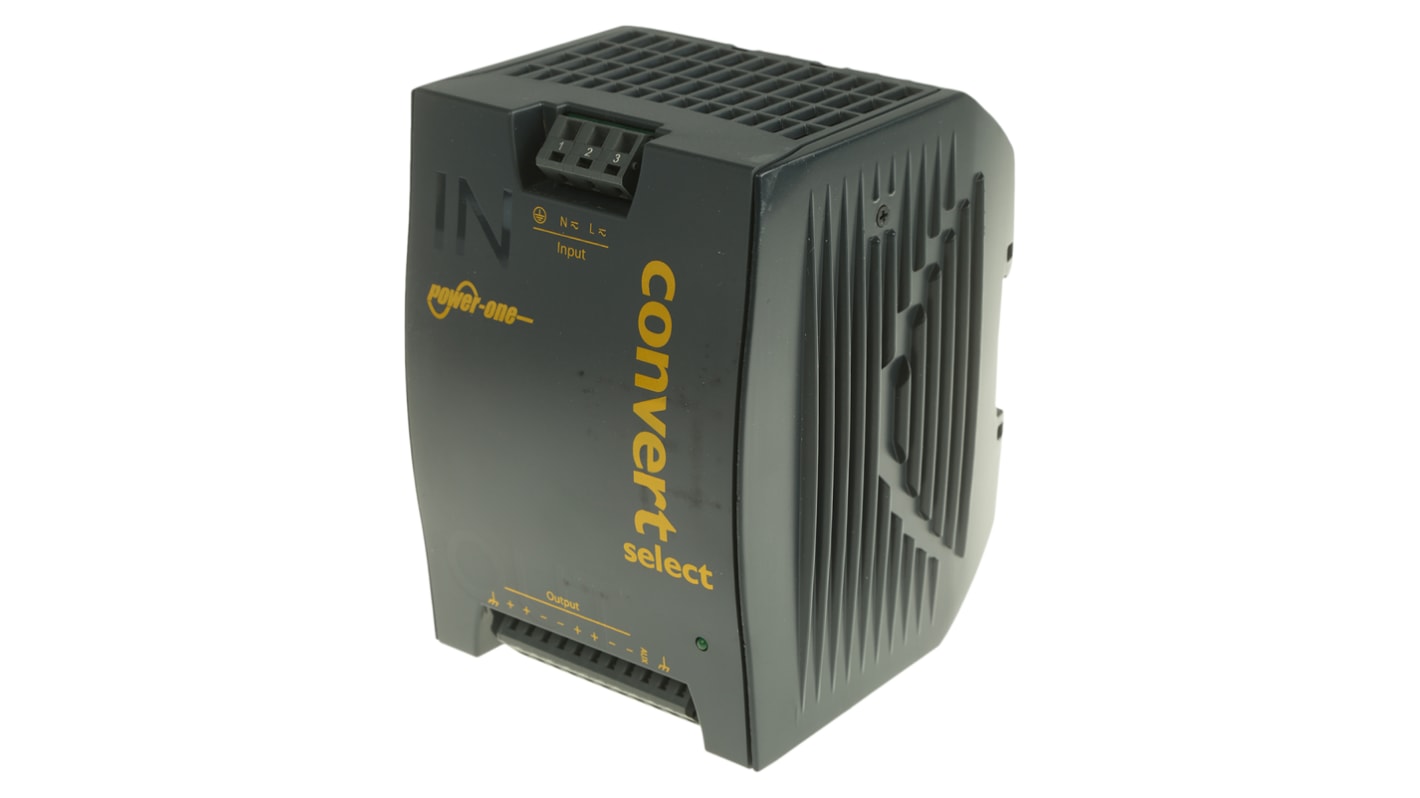

Power-One LWR Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 350V dc ac, dc Input, 48V dc dc
- RS Stock No.:
- 913-1627
- Mfr. Part No.:
- LWR1801-6EG
- Manufacturer:
- Power-One
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,970.75
| Units | Per Unit |
| 1 + | MYR1,970.75 |
- RS Stock No.:
- 913-1627
- Mfr. Part No.:
- LWR1801-6EG
- Manufacturer:
- Power-One
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SK
Product Details
125 & 250W Industrial Grade Convert Select Series
The Convert Select series are DIN Rail mountable DC-DC and AC-DC converters. They have power factor correction with low harmonic distortion, negligibly low inrush current, high immunity to transients and surges, and low electromagnetic emissions. Internal protection circuits such as input over/under voltage lockout, thermal protection, output overvoltage protection by a control loop ensure safe operation of the final system. The Convert Select series are designed according to the latest industry requirements and standards.
Features and Benefits
Rugged 35 mm DIN Rail snap-fit design
Class I equipment
Universal AC-input or DC-input with single stage conversion
Power factor correction, harmonics IEC/EN 61000-3-2
Virtually no inrush current
Power factor correction, harmonics IEC/EN 61000-3-2
Immunity to IEC/EN61000-4-2/3/4/5/6/11
High efficiency 89%
Short-term peak capacity 150% nominal rating, with rectangular current limit
Independently regulated outputs
Outputs: no load, overload and short circuit proof
MTBF greater than 600000 hours
Emissions according to EN 55011/022
PCBs coated by protective lacquer
High reliability
RoHS compliant
Class I equipment
Universal AC-input or DC-input with single stage conversion
Power factor correction, harmonics IEC/EN 61000-3-2
Virtually no inrush current
Power factor correction, harmonics IEC/EN 61000-3-2
Immunity to IEC/EN61000-4-2/3/4/5/6/11
High efficiency 89%
Short-term peak capacity 150% nominal rating, with rectangular current limit
Independently regulated outputs
Outputs: no load, overload and short circuit proof
MTBF greater than 600000 hours
Emissions according to EN 55011/022
PCBs coated by protective lacquer
High reliability
RoHS compliant
Applications
The Convert Select series are suitable to power building control systems, factory automation, industrial controls, instrumentation, electromagnetic drives, fans and other DC loads.
Note
Operating temperature is without de-rating.
Approvals
CE, cSAus, cULus.
Standards
EN/IEC60950, UL1950, CSA22.22 950, IEC/EN50178, IEC61010, UL508.
Approvals
EN/IEC60950; UL1950; CSA22.22 950; IEC/EN50178; IEC61010; UL508
Standards
IEC, EN, UL
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 48V dc |
| Output Current | 2.5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 90 → 350V dc |
| Power Rating | 124W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 114mm |
| Width | 103mm |
| Depth | 138mm |
| Series | LWR |
| Maximum Temperature | +60°C |
| Standards Met | EN 55032, EN 62368-1, UL 62368-1 |
| Mounting Type | DIN Rail Mount |
| Special Features | High Reliability, High Efficiency, Overload, Short Circuit Proof, Virtually No Inrush Current |
| Ripple And Noise | 100 mV Pk-Pk, 1200 mV Pk-Pk |
| Efficiency | 88.0% |
| Minimum Temperature | -40°C |
| Output Voltage Adjustment Range | 48.0 to 51.6V |
