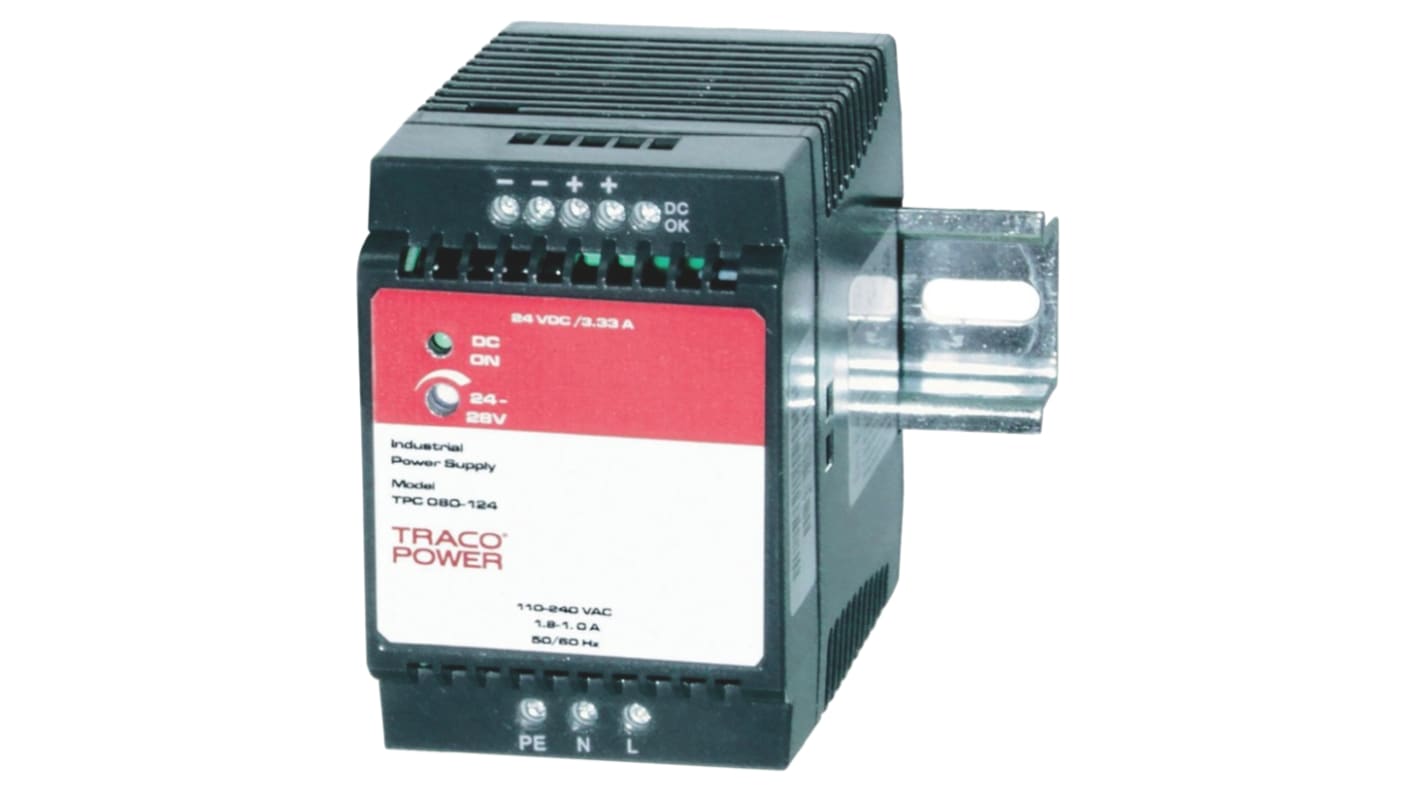

TRACOPOWER TPC Switched Mode DIN Rail Power Supply 264V ac AC/DC Input 28.8V dc, 3.3 A Output DC 80 W

RS Stock No.:: 808-6661
Mfr. Part No.:: TPC 080-124
Manufacturer:: TRACOPOWER

TRACOPOWER TPC Switched Mode DIN Rail Power Supply 264V ac AC/DC Input 28.8V dc, 3.3 A Output DC 80 W

Subtotal (1 unit)*

MYR369.44

FREE delivery for orders over RM 150.00

In Stock

46 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 17 December 2026
Plus 8 unit(s) shipping from 04 February 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR369.44

*price indicative

RS Stock No.:: 808-6661
Mfr. Part No.:: TPC 080-124
Manufacturer:: TRACOPOWER

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Series	TPC
	Product Type	DIN Rail Power Supply
	Sub Type	Switched Mode
	Maximum Output Voltage	28.8V dc
	Electrical Phase	1
	Input Voltage Type	AC/DC
	Number of Outputs	1
	Power	80W
	Output Current	3.3A
	IP Rating	IP20
	Remote signal DC-OK	Yes
	Output Voltage Type	DC
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Height	90mm
	Hazardous Area Certification	No
	Width	63mm
	Standards/Approvals	EN 60950-1
	Depth	96.5mm
	Maximum Input Voltage	264V ac
	Efficiency	87%
	Minimum Input Voltage	85V ac

	Select all
	Brand TRACOPOWER
	Series TPC
	Product Type DIN Rail Power Supply
	Sub Type Switched Mode
	Maximum Output Voltage 28.8V dc
	Electrical Phase 1
	Input Voltage Type AC/DC
	Number of Outputs 1
	Power 80W
	Output Current 3.3A
	IP Rating IP20
	Remote signal DC-OK Yes
	Output Voltage Type DC
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Height 90mm
	Hazardous Area Certification No
	Width 63mm
	Standards/Approvals EN 60950-1
	Depth 96.5mm
	Maximum Input Voltage 264V ac
	Efficiency 87%
	Minimum Input Voltage 85V ac

COO (Country of Origin):: CN

Traco Power DIN Rail Power Supply, 0.5% Load Regulation, 96.5mm Depth - TPC Series - TPC 080-124

Take your system's voltage to a level playing field with this DIN rail power supply from Traco Power. It converts an input voltage between 90 and 375V DC or 85 and 264V AC to a smooth 24V DC output. An 87% efficiency rating means the unit keeps its cool by minimising heat loss. Thanks to a broad operating temperature range between -25°C and +70°C, you can trust it to handle tough conditions. Plastic housing provides protection from wear, so you can be sure this is an option that stays the course.

• Overvoltage and short-circuit protections for electrical safety

• Low ripple and noise of 100mV pk-pk reduces interference, ensuring a reliable output

• Two-second start-up time delivers speedy power conversion

• Mean time between failures of over 1.5 million operational cycles for long-lasting use

Applications

• HVAC systems

• Medical equipment

• Industrial automation

How big is this power supply?

It has a space-saving design of 90 (H) x 63 (W) x 96.5mm (D) to ensure a neat fit in setups with limited space.

Can I turn on the unit remotely?

Yes, it has a remote on/off feature for convenience.
