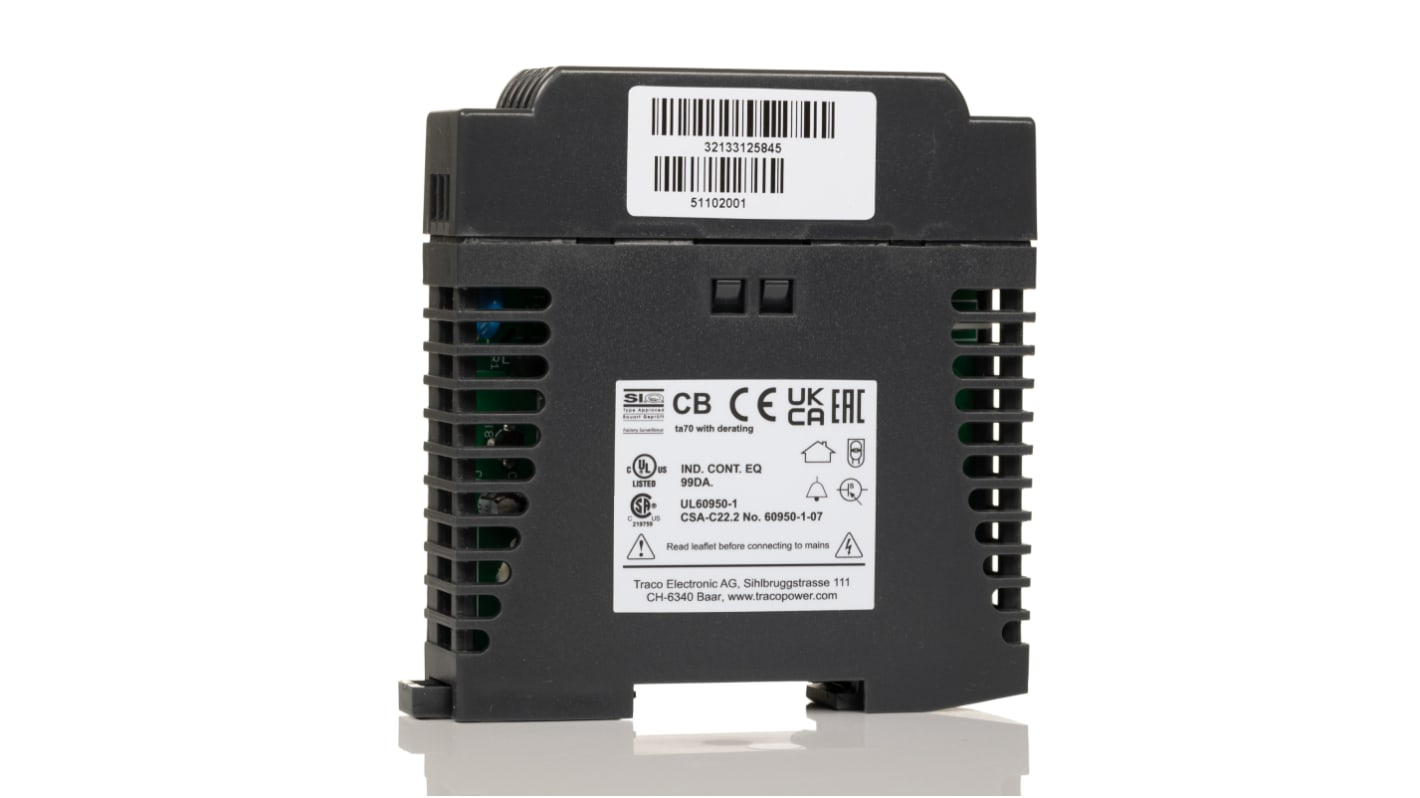

TRACOPOWER TPC Switched Mode DIN Rail Power Supply 375 V dc, 264V ac AC/DC Input 15V dc, 2.2 A Output DC 26 W
- RS Stock No.:
- 808-6645
- Distrelec Article No.:
- 169-91-066
- Mfr. Part No.:
- TPC 030-112
- Manufacturer:
- TRACOPOWER
Subtotal (1 unit)*
MYR246.86
FREE delivery for orders over RM 150.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR246.86 |
*price indicative
- RS Stock No.:
- 808-6645
- Distrelec Article No.:
- 169-91-066
- Mfr. Part No.:
- TPC 030-112
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Series | TPC | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | Switched Mode | |
| Maximum Output Voltage | 15V dc | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC/DC | |
| Power | 26W | |
| Output Current | 2.2A | |
| IP Rating | IP20 | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, EN 60950-1, UL/CSA 60950-1 | |
| Hazardous Area Certification | No | |
| Width | 26.5mm | |
| Depth | 90mm | |
| Height | 96.5mm | |
| Maximum Input Voltage | 375, 264V dc | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 84% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Series TPC | ||
Product Type DIN Rail Power Supply | ||
Sub Type Switched Mode | ||
Maximum Output Voltage 15V dc | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Input Voltage Type AC/DC | ||
Power 26W | ||
Output Current 2.2A | ||
IP Rating IP20 | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, EN 60950-1, UL/CSA 60950-1 | ||
Hazardous Area Certification No | ||
Width 26.5mm | ||
Depth 90mm | ||
Height 96.5mm | ||
Maximum Input Voltage 375, 264V dc | ||
Minimum Input Voltage 85V ac | ||
Efficiency 84% | ||
- COO (Country of Origin):
- CN
Traco Power DIN Rail Power Supply, 100 mVpk-pk Ripple and Noise, 3000V AC Isolation Voltage - TPC Series - TPC 030-112
Boot up the components in your cabinet in a flash with this DIN rail power supply from Traco Power. It mounts onto a standard 35mm rail in a snap with the help of its clip-on design. The unit is primed and ready for any European ErP-rated application, thanks to its low 0.3W standby electricity usage and high 84% energy efficiency rating. The 26W output suits light-duty setups like lighting rigs, small motors and residential HVAC systems.
Features & Benefits
• Performs in demanding applications thanks to its wide -25°C to +70°C temperature range
• Universal input range between 85 to 264V AC plugs seamlessly into any mains supply
• Screw terminals mean you can make vibration-proof connections without needing complex tools
• IP20 rating indicates it's safe to handle during installation and repair as it's touch-proof and protected against small wires
• 'Power good' signal allows for at-a-glance diagnostics
Applications
• Hospitality industry
• Manufacturing facilities
• Schools and colleges
What protections are built into this component?
This unit features both overload and short-circuit protection to guard against damage caused by common power errors.
