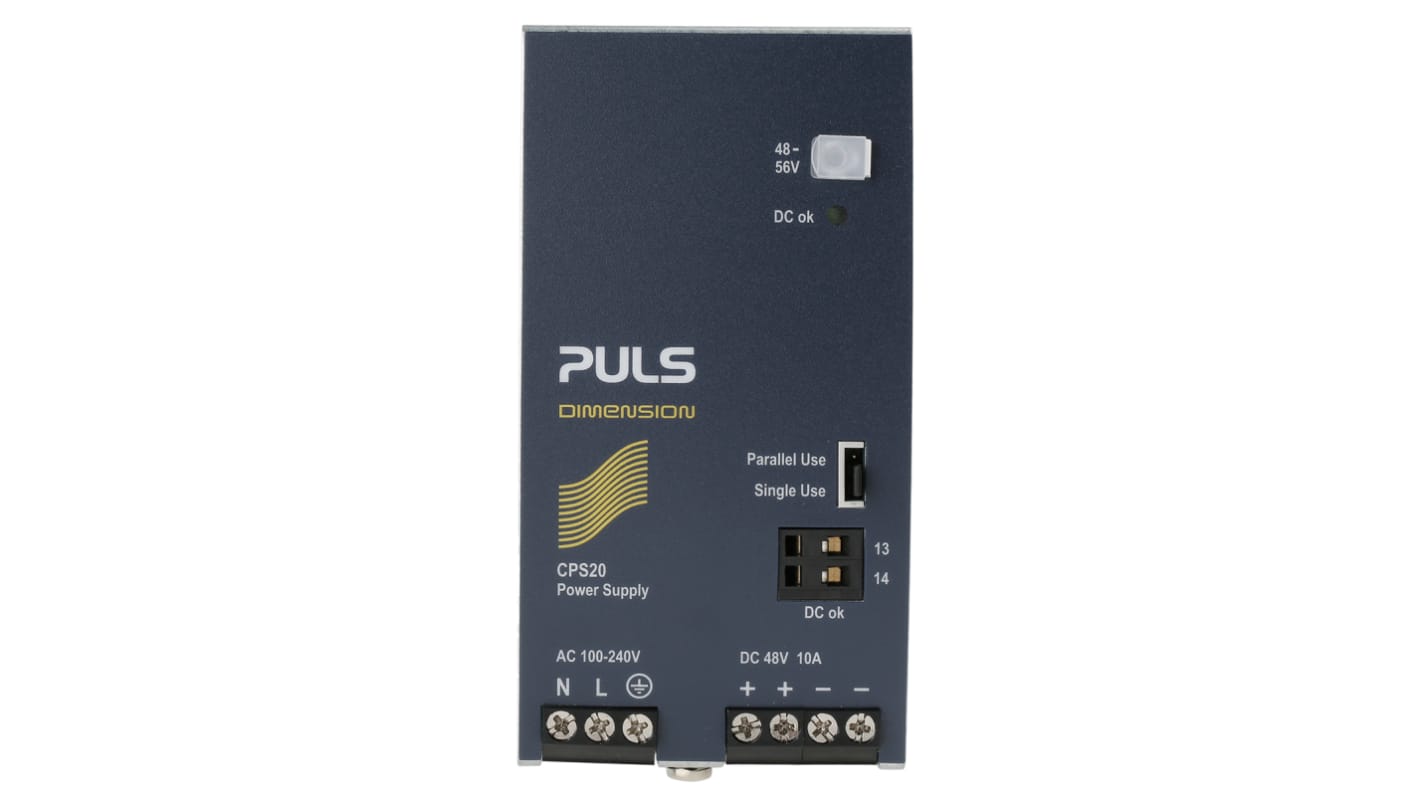

PULS DIMENSION Switched Mode DIN Rail Power Supply 240V ac AC Input 56V dc, 10 A Output DC 480 W

RS Stock No.:: 796-1719
Distrelec Article No.:: 110-41-289
Mfr. Part No.:: CPS20.481
Manufacturer:: PULS

PULS DIMENSION Switched Mode DIN Rail Power Supply 240V ac AC Input 56V dc, 10 A Output DC 480 W

Subtotal (1 unit)*

MYR2,759.44

FREE delivery for orders over RM 150.00

In Stock

34 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR2,759.44

*price indicative

RS Stock No.:: 796-1719
Distrelec Article No.:: 110-41-289
Mfr. Part No.:: CPS20.481
Manufacturer:: PULS

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	PULS
	Product Type	DIN Rail Power Supply
	Series	DIMENSION
	Maximum Output Voltage	56V dc
	Sub Type	Switched Mode
	Electrical Phase	1
	Input Voltage Type	AC
	Number of Outputs	1
	Power	480W
	Output Current	10A
	IP Rating	IP54
	Output Voltage Type	DC
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Width	65mm
	Standards/Approvals	EN 50178 + EN 60950
	Hazardous Area Certification	No
	Depth	127mm
	Height	124mm
	Maximum Input Voltage	240V ac
	Efficiency	93.9%
	Minimum Input Voltage	100V ac

	Select all
	Brand PULS
	Product Type DIN Rail Power Supply
	Series DIMENSION
	Maximum Output Voltage 56V dc
	Sub Type Switched Mode
	Electrical Phase 1
	Input Voltage Type AC
	Number of Outputs 1
	Power 480W
	Output Current 10A
	IP Rating IP54
	Output Voltage Type DC
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Width 65mm
	Standards/Approvals EN 50178 + EN 60950
	Hazardous Area Certification No
	Depth 127mm
	Height 124mm
	Maximum Input Voltage 240V ac
	Efficiency 93.9%
	Minimum Input Voltage 100V ac

Datasheet

COO (Country of Origin):: CZ

PULS DIN Rail Power Supply

The PULS Dimensions C- Line series of DIN rail switch mode power supply has an output current rating of 10A at 48VDC. It has a single-phase input voltage ranging between 100VAC and 240VAC with active power factor correction(PFC). These are cost optimised power supplies specifically designed with uncompromised quality and reliability for high-performance. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission. High immunity makes it suitable for almost every situation.

Note:

Power de-rating @ +60 to +70°C.

Features and Benefits

20% output power reserves up to 45°C continuously allowed

Cost effective

DC-OK relay contact

Efficiency up to 93.9%

Excellent partial load efficiency

Large screw terminals

Minimal inrush current surge

Operation temperature ranging between -25°C and 70°C

Power rating is 480W

Ripple factor and noise is 50mV

Safe HiccupPLUS overload mode

Slim design

Wide range auto select input

Applications

Communication and instrumentation equipment

Industrial control

Office

Certifications

ATEX approved

IEC

IECEX approved

SELV

UL approved
