Select all	Attribute	Value
	Brand	Chinfa
	Series	AMR4
	Type	Switched Mode
	Electrical Phase	1
	AC or DC Input Voltage	ac
	Number of Outputs	1
	Input Voltage	90 → 264V ac
	AC or DC Output Voltage	dc
	Output Voltage	12V dc
	Output Current	4.5A
	Dimensions	71 x 56.5 x 91mm
	Width	56.5mm
	Height	91mm
	Depth	57mm
	Minimum Temperature	-40°C
	Mounting Type	DIN Rail Mount
	Ripple And Noise	50mV
	Maximum Temperature	+71°C
	Load Regulation	±1%
	MTBF	582000h
	Standards Met	EN 55032, EN 62368-1, UL 62368-1, UL508

	Select all
	Brand Chinfa
	Series AMR4
	Type Switched Mode
	Electrical Phase 1
	AC or DC Input Voltage ac
	Number of Outputs 1
	Input Voltage 90 → 264V ac
	AC or DC Output Voltage dc
	Output Voltage 12V dc
	Output Current 4.5A
	Dimensions 71 x 56.5 x 91mm
	Width 56.5mm
	Height 91mm
	Depth 57mm
	Minimum Temperature -40°C
	Mounting Type DIN Rail Mount
	Ripple And Noise 50mV
	Maximum Temperature +71°C
	Load Regulation ±1%
	MTBF 582000h
	Standards Met EN 55032, EN 62368-1, UL 62368-1, UL508

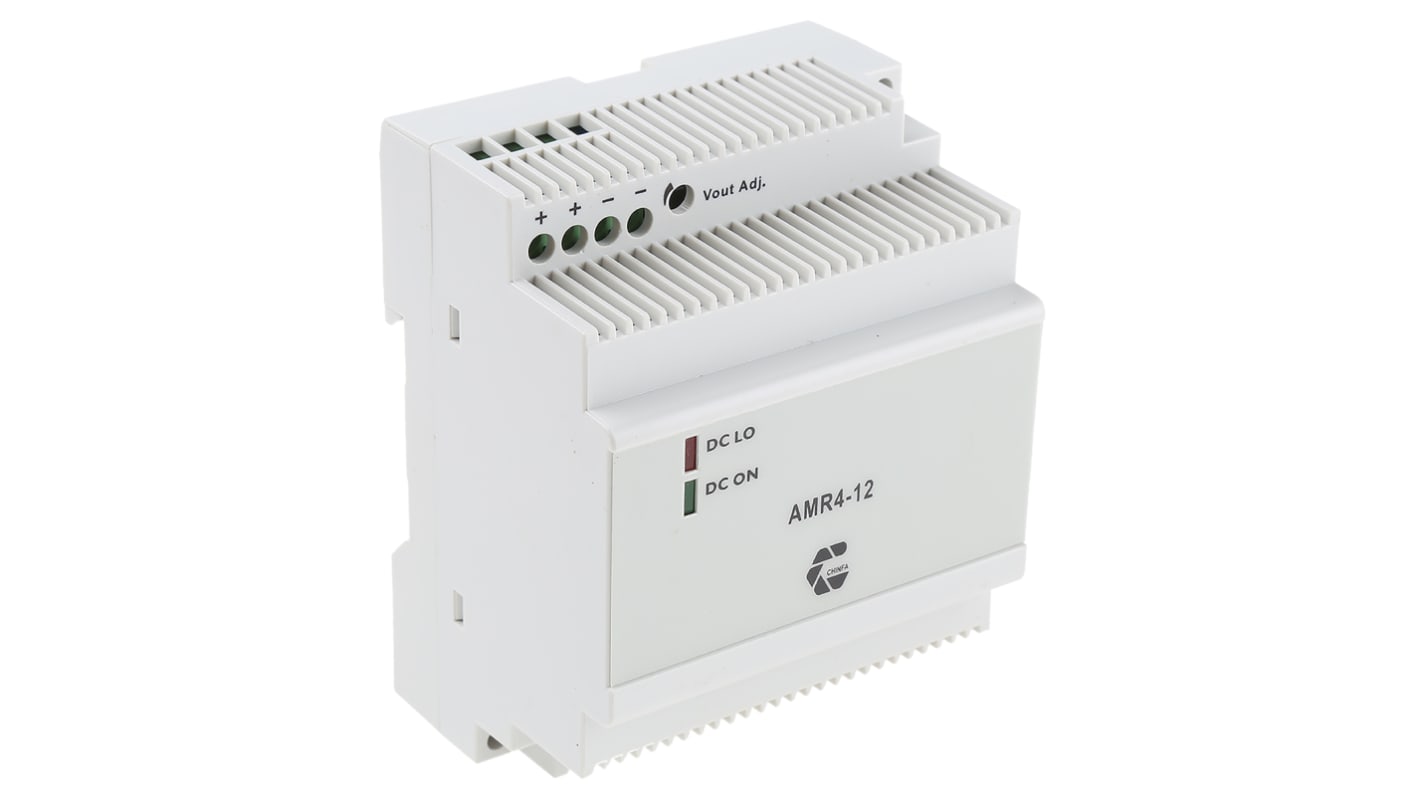

Chinfa AMR4 Switched Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 12V dc dc Output, 4.5A Output, 54W

FREE delivery for orders over MYR500.00

CHINFA DIN Rail Power Supply

Features and Benefits

Applications

Certifications

Related links
