Select all	Attribute	Value
	Brand	TRACOPOWER
	Series	TSP
	Type	Switched Mode
	Number of Outputs	1
	AC or DC Input Voltage	ac
	Input Voltage	85 → 264V ac
	AC or DC Output Voltage	dc
	Output Voltage	12V dc
	Output Current	12A
	Dimensions	110 x 54 x 110mm
	Width	54mm
	Height	110mm
	Depth	110mm
	Mounting Type	DIN Rail Mount
	Efficiency	87%
	Minimum Temperature	-25°C
	Standards Met	CE
	Special Features	3-Years Warranty
	Load Regulation	±0.5%
	Maximum Temperature	+70°C
	Output Voltage Adjustment Range	12 → 16V
	Ripple And Noise	200mV Pk-Pk
	MTBF	1200000h

	Select all
	Brand TRACOPOWER
	Series TSP
	Type Switched Mode
	Number of Outputs 1
	AC or DC Input Voltage ac
	Input Voltage 85 → 264V ac
	AC or DC Output Voltage dc
	Output Voltage 12V dc
	Output Current 12A
	Dimensions 110 x 54 x 110mm
	Width 54mm
	Height 110mm
	Depth 110mm
	Mounting Type DIN Rail Mount
	Efficiency 87%
	Minimum Temperature -25°C
	Standards Met CE
	Special Features 3-Years Warranty
	Load Regulation ±0.5%
	Maximum Temperature +70°C
	Output Voltage Adjustment Range 12 → 16V
	Ripple And Noise 200mV Pk-Pk
	MTBF 1200000h

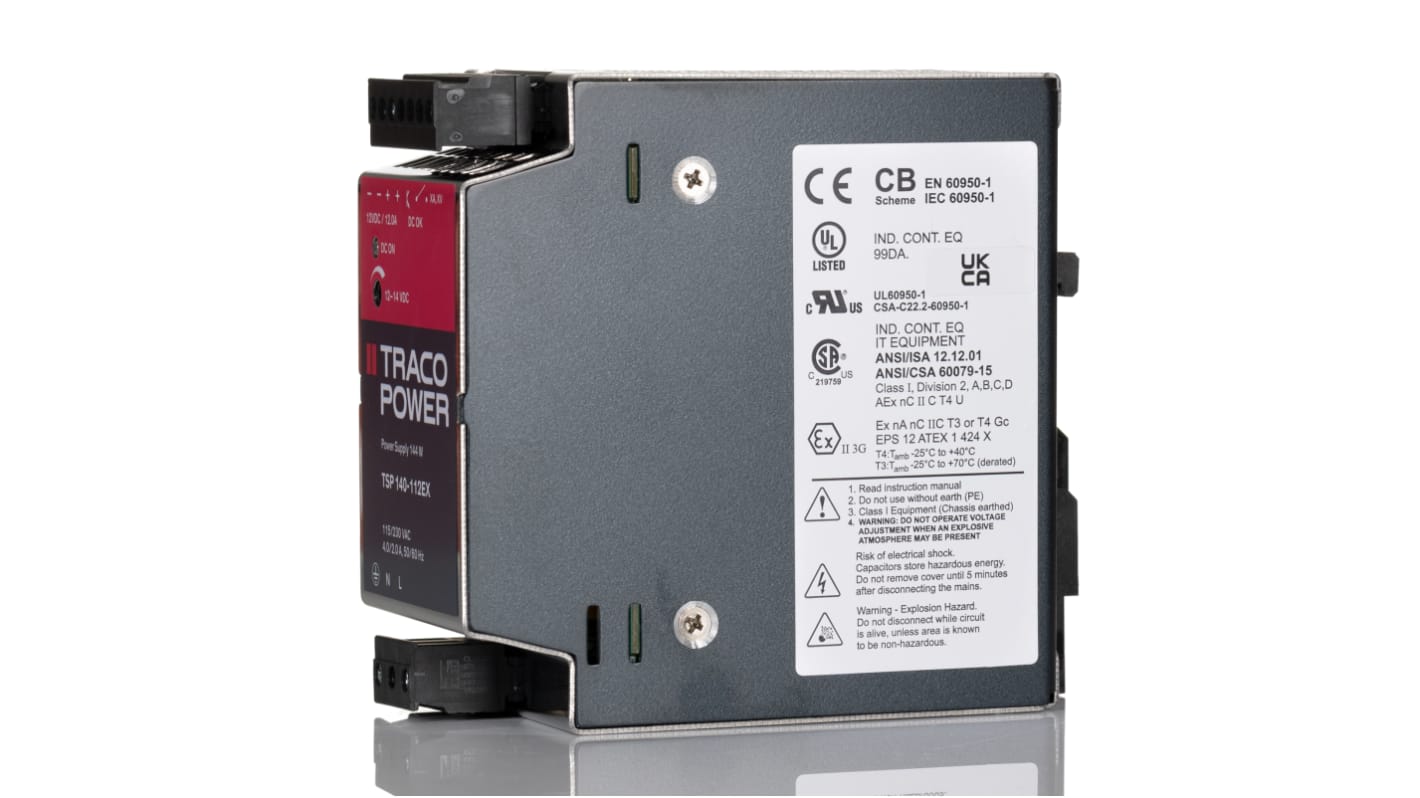

TRACOPOWER TSP Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 12A Output, 144W

FREE delivery for orders over RM 500.00

Traco Power DIN Rail Power Supply, 25A Maximum Inrush Current, 47 to 63Hz Input Frequency - TSP Series - TSP 140-112 EX

Features & Benefits

Applications

Can I install this unit in a location prone to vibration?

Caution

Related links
