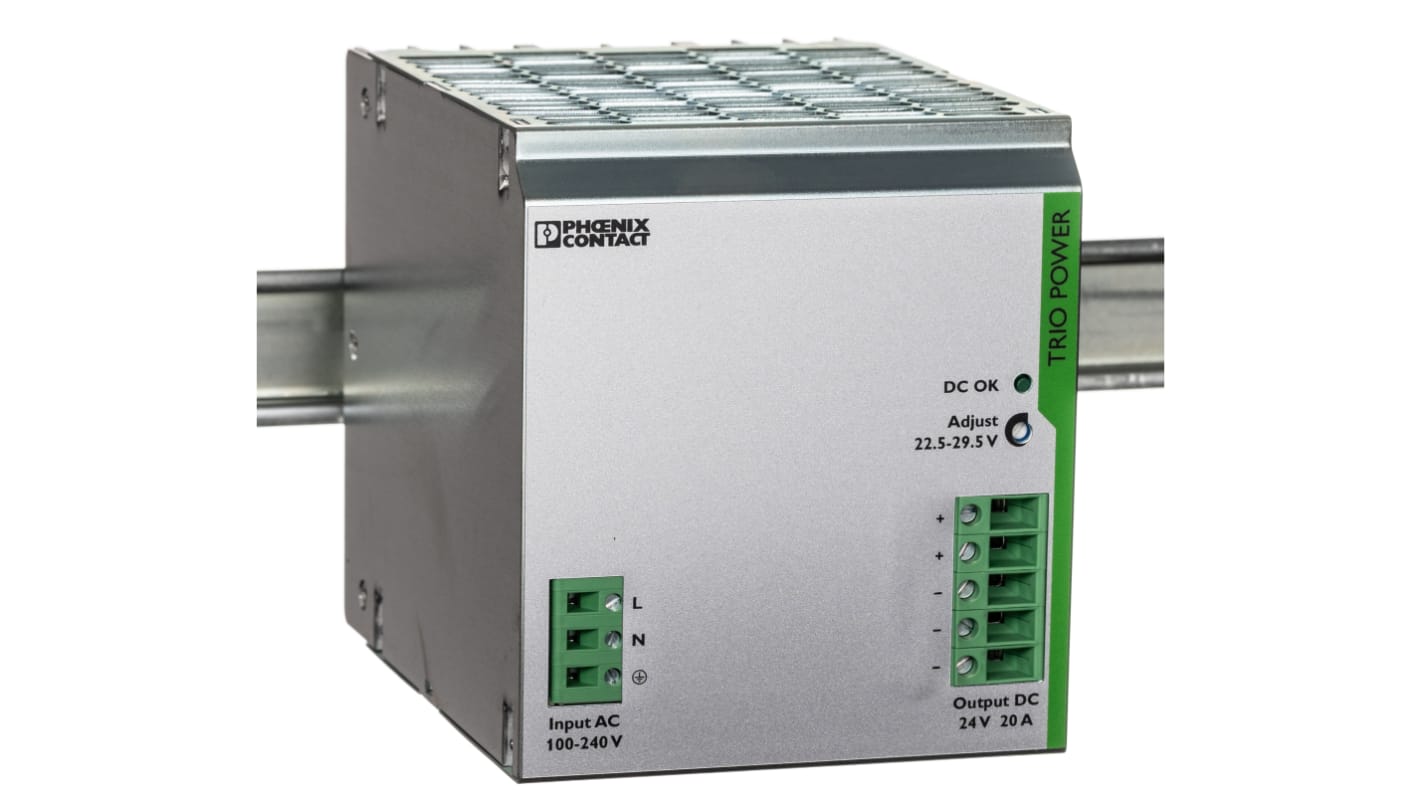

Phoenix Contact TRIO POWER Switch Mode PSU, 85 → 264V ac ac Input, 24V dc dc Output, 20A Output, 480W
- RS Stock No.:
- 607-7630
- Mfr. Part No.:
- 2866381
- Manufacturer:
- Phoenix Contact
View all DIN Rail Power Supplies
1 In SG stock for delivery within 2 working days
18 In Global stock for delivery within 4 working day(s)
Price Each
MYR3,156.49
| units | Per Unit |
| 1 - 4 | MYR3,156.49 |
| 5 + | MYR2,597.79 |
- RS Stock No.:
- 607-7630
- Mfr. Part No.:
- 2866381
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
Product Details
TRIO-PS/1AC/ Single Phase Power Supplies
Suitable for worldwide applications with a wide range input voltage, and with adjustable output compensation can be made for long cable runs and battery charging applications, can be used on networks where the phases become imbalanced, withstands up to 300Vac input.
Features and Benefits:
Single-phase power supplies 85 to 264Vac input and a 600 Vdc version
Operating temperature range 0 to +70°C
Operating temperature range 0 to +70°C
Typical applications:
Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.
Approvals
UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved
Specifications
| Attribute | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 130mm |
| Series | TRIO POWER |
| Width | 115mm |
| Mounting Type | DIN Rail Mount |
| Depth | 130mm |
| Minimum Temperature | -25°C |
| Efficiency | 91% |
| MTBF | 915000h |
| Load Regulation | ±1% |
| Ripple And Noise | 10mV Pk-Pk |
| Maximum Temperature | +70°C |
