RS PRO Power Supply DIN Rail Power Supply 264V ac AC Input 24V dc, 20 A Output DC 480 W
- RS Stock No.:
- 284-0492
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
MYR1,602.18
FREE delivery for orders over RM 150.00
In Stock
- Plus 22 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,602.18 |
*price indicative
- RS Stock No.:
- 284-0492
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | RS PRO | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Sub Type | Power Supply | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| Input Voltage Type | AC | |
| Power | 480W | |
| Output Current | 20A | |
| Minimum Operating Temperature | -20°C | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | Yes | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | BS6681, EN6681, UL | |
| Width | 129mm | |
| Height | 85.5mm | |
| Depth | 125mm | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 90V ac | |
| Efficiency | 92% | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series RS PRO | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 24V dc | ||
Sub Type Power Supply | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
Input Voltage Type AC | ||
Power 480W | ||
Output Current 20A | ||
Minimum Operating Temperature -20°C | ||
Output Voltage Type DC | ||
Remote signal DC-OK Yes | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals BS6681, EN6681, UL | ||
Width 129mm | ||
Height 85.5mm | ||
Depth 125mm | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 90V ac | ||
Efficiency 92% | ||
- COO (Country of Origin):
- CN

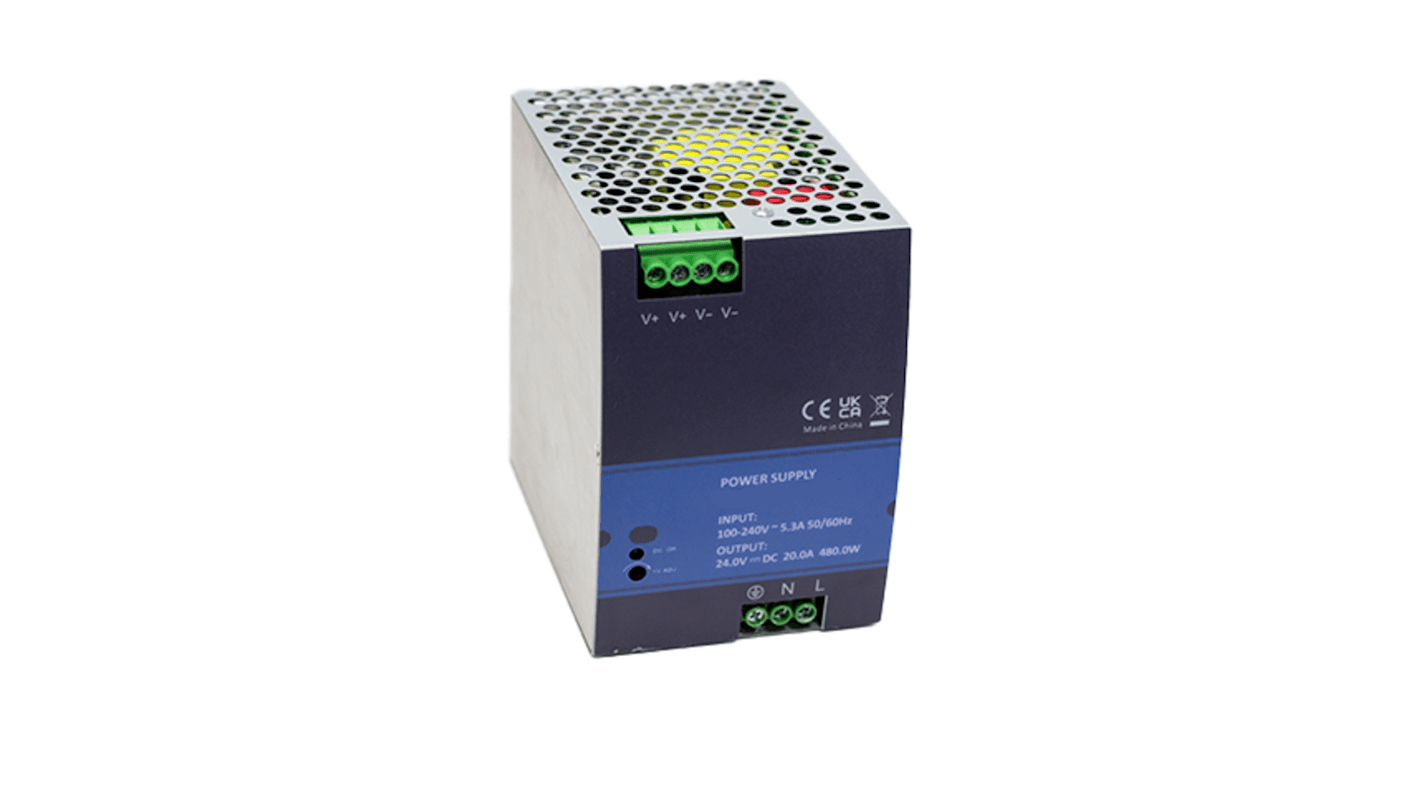

RS PRO AC-DC Single Phase Switching Power Supply with 1 Output (90 → 264 V ac)
A highly efficient and compact single phase AC to DC switching mode power supply with universal AC input. ideal for use with a wide range of equipment or machinery and suitable for use in industrial applications.
Simple to install into existing setups the AC DC power supply features screw terminal connections and can be easily mounted onto a 35mm DIN rail.
Designed to benefit from natural convection cooling the switching power supply is very quiet when in operation and requires minimal maintenance.
Built with a host of protective features the DIN rail power supply is protected from over voltage, over current and short circuits with additional vibration and shock resistance.
A reliable and protected DIN rail SMPS fit for industrial environments.
Features and Benefits
AC-DC Switch Mode power supply
DIN rail mount
Supply voltage of 90 → 264 V ac
Single Phase
1 outputs
Universal AC input
Input current of 4.8/2.4 A
High efficiency
Output short circuit, over-current and over voltage protection
Vibration and shock resistance
IP20 rated
Screw terminal connection
Natural convection cooling
Standards and Approvals: UL508, EN62368-1, BS62368-3.
