Wago 787 Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 90 → 373V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 240-7970
- Mfr. Part No.:
- 787-722
- Manufacturer:
- Wago
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR587.21
| Units | Per Unit |
| 1 + | MYR587.21 |
- RS Stock No.:
- 240-7970
- Mfr. Part No.:
- 787-722
- Manufacturer:
- Wago
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

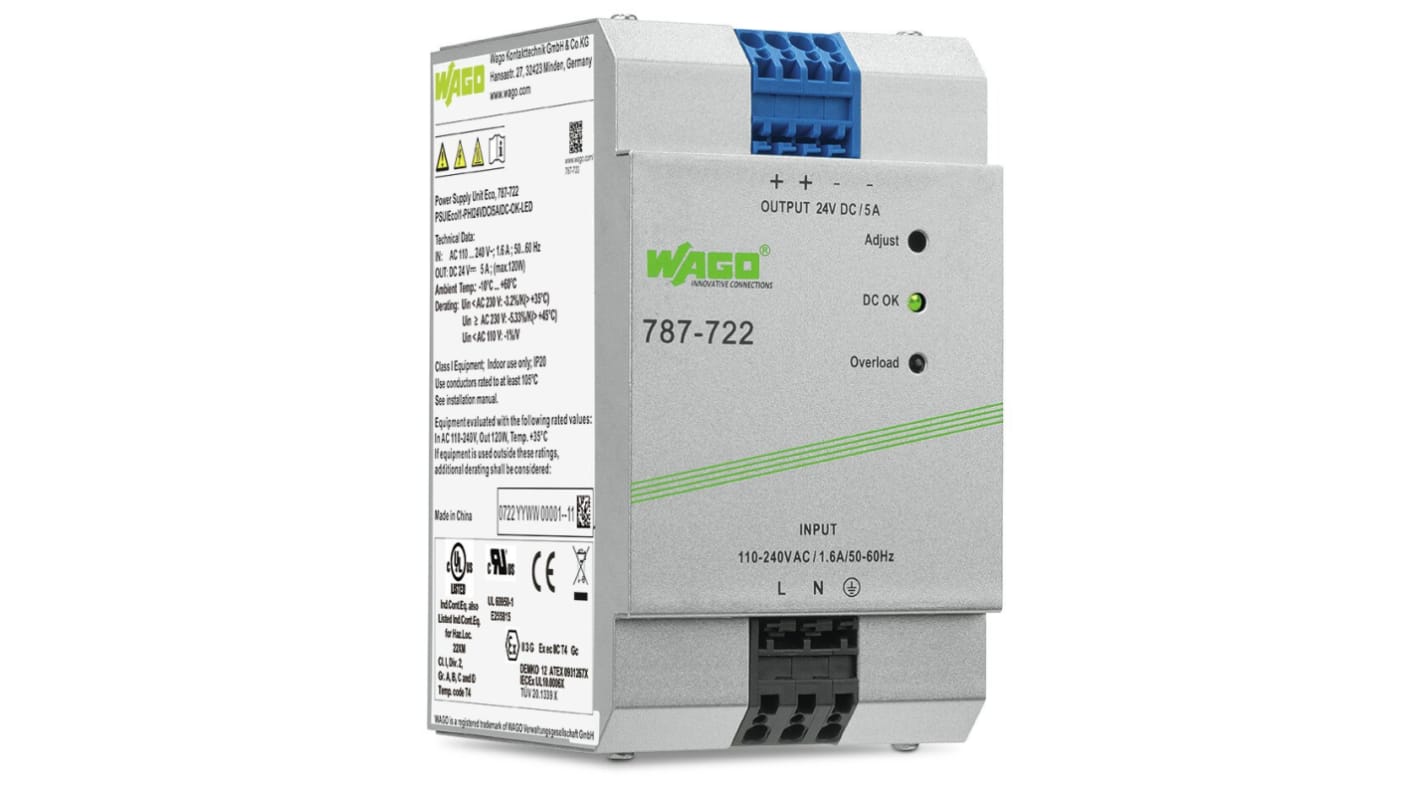

Wago DIN Rail Power Supply, 24V DC Output Voltage, 120W Power Rating - 787 Series - 787-722
When efficiency is a top priority, surge ahead with this DIN rail power supply from Wago. It converts input voltages between 85 and 264V AC or between 90 and 373V DC into a steady output voltage of 24V DC for use with low-voltage equipment. It’s a cinch to install by clipping directly onto a DIN rail. Natural convection cooling prevents the power supply from overheating when it's horizontally mounted, keeping you and your equipment safe.
Features & Benefits
• Short circuit protection kicks in automatically in the event of a fault to protect your machinery from damage
• Efficiency of 86% means little energy is wasted as heat
• LED indicator shows its operating status at a glance
• IP20 rating indicates it’s finger-safe and protected against objects over 12mm in size
• Performs reliably in challenging environments, thanks to a broad operating temperature range between -10°C and +60°C
• Efficiency of 86% means little energy is wasted as heat
• LED indicator shows its operating status at a glance
• IP20 rating indicates it’s finger-safe and protected against objects over 12mm in size
• Performs reliably in challenging environments, thanks to a broad operating temperature range between -10°C and +60°C
Applications
• Process control
• Factory automation
• Power distribution
• Factory automation
• Power distribution
What's the power rating of this DIN rail power supply?
It has a power rating of 120W, making it just the thing for use in heavy-duty systems.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264 V ac / 90 → 373V dc |
| Power Rating | 120W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 92mm |
| Width | 75mm |
| Depth | 136mm |
| Series | 787 |
| Output Voltage Adjustment Range | 22 → 28V |
| Standards Met | CE, cRUus, cULus |
| Maximum Temperature | +60°C |
| MTBF | 480kh |
| Efficiency | 86% |
| Minimum Temperature | -10°C |
| Hazardous Area Certification | ATEX, IECEx |
| Ripple And Noise | 100mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
