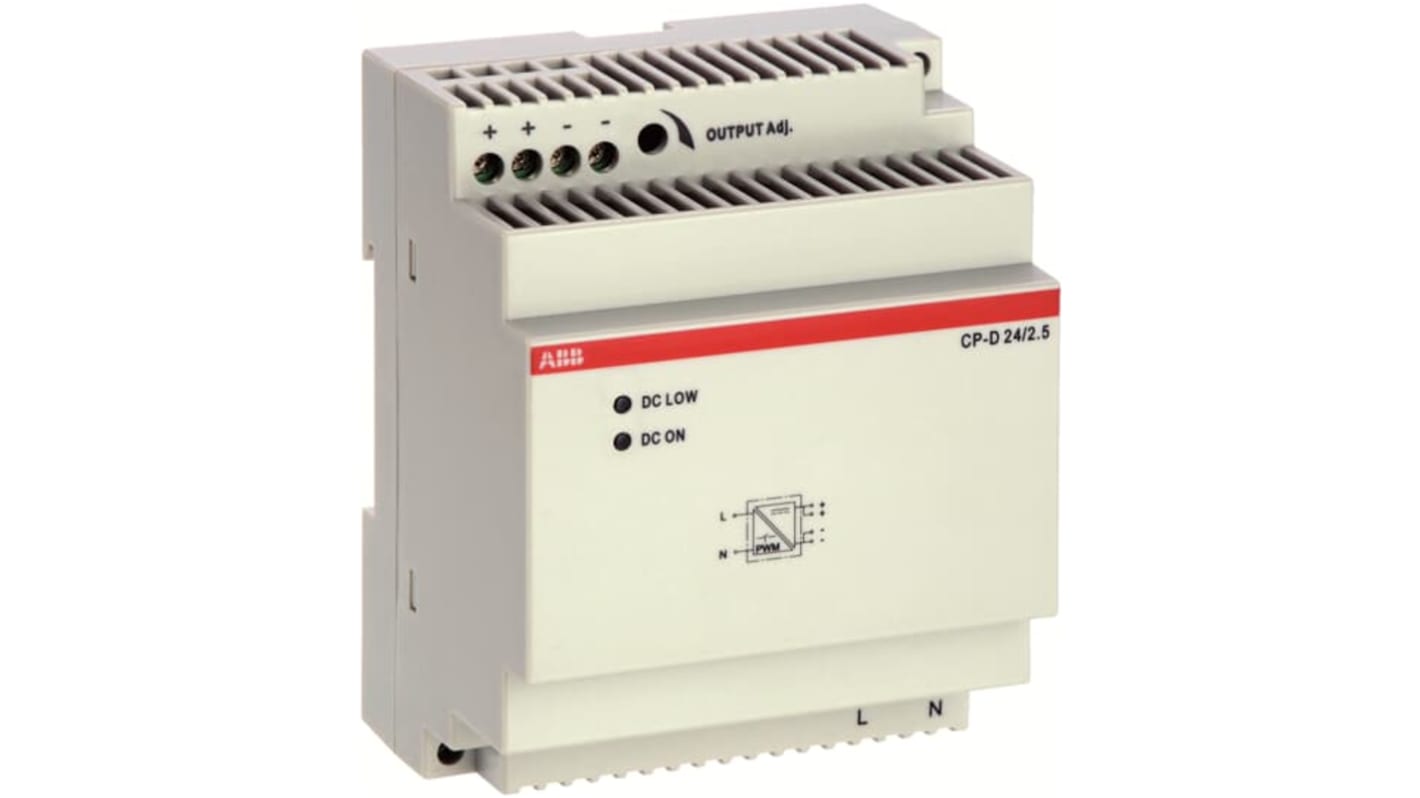

ABB CP-D Switched Mode DIN Rail Power Supply 240V ac AC Input 24V dc, 2.5 A Output DC 60 W

RS Stock No.:: 231-9525
Mfr. Part No.:: 1SVR427044R0200 CP-D 24VDC/2.5A
Manufacturer:: ABB

ABB CP-D Switched Mode DIN Rail Power Supply 240V ac AC Input 24V dc, 2.5 A Output DC 60 W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

MYR558.84

FREE delivery for orders over RM 150.00

In Stock

1 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from 11 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR558.84

*price indicative

RS Stock No.:: 231-9525
Mfr. Part No.:: 1SVR427044R0200 CP-D 24VDC/2.5A
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Series	CP-D
	Product Type	DIN Rail Power Supply
	Sub Type	Switched Mode
	Maximum Output Voltage	24V dc
	Electrical Phase	1
	Input Voltage Type	AC
	Number of Outputs	1
	Power	60W
	Output Current	2.5A
	IP Rating	IP20
	Output Voltage Type	DC
	Remote signal DC-OK	No
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	No
	Standards/Approvals	RoHS
	Width	71mm
	Depth	57.5mm
	Height	91mm
	Maximum Input Voltage	240V ac
	Minimum Input Voltage	100V ac

	Select all
	Brand ABB
	Series CP-D
	Product Type DIN Rail Power Supply
	Sub Type Switched Mode
	Maximum Output Voltage 24V dc
	Electrical Phase 1
	Input Voltage Type AC
	Number of Outputs 1
	Power 60W
	Output Current 2.5A
	IP Rating IP20
	Output Voltage Type DC
	Remote signal DC-OK No
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Hazardous Area Certification No
	Standards/Approvals RoHS
	Width 71mm
	Depth 57.5mm
	Height 91mm
	Maximum Input Voltage 240V ac
	Minimum Input Voltage 100V ac

Datasheet - 1SVR427044R0200

COO (Country of Origin):: TW

ABB CP-D Series DIN Rail Power Supply, 60W Power, 24V DC Output Voltage - 1SVR427044R0200 CP-D 24VDC/2.5A

This DIN rail power supply provides regulated 24VDC output for industrial control and automation equipment. It accepts single-phase AC input and is designed for mounting on standard DIN rail systems in control panels. The unit delivers continuous DC power for devices requiring a compact, panel-mounted supply under routine industrial conditions.

Features and Benefits:

• 24VDC output at 2.5A supports moderate load devices
• 60W rating allows sustained power delivery for automation circuits
• 100-240VAC input enables global single-phase operation
• Switched‑mode design reduces heat and improves efficiency
• Operates from -40 to 70°C for wide ambient tolerance
• IP20 enclosure provides Basic panel protection in cabinets

Applications

• Suitable for powering PLCs and I/O modules in control cabinets
• Ideal for supplying sensors and field Interface modules
• Used with small motor drivers and relay modules
• Can be used for auxiliary power in factory automation racks

What is the expected output current capability under continuous load?

The device provides a continuous DC output current of 2.5A for connected equipment.

What input voltage range is acceptable for stable operation?

It accepts AC mains from 100VAC up to 240VAC on a single‑phase supply.

How does the product perform in harsh temperature conditions?

It is specified to operate across a wide span from -40°C up to 70°C to accommodate extreme ambient environments.

Which environmental and safety marking is included?

The design meets RoHS requirements for restricted substances.

What physical mounting and protection class does it use?

It is intended for DIN rail mounting and features an IP20 rating for indoor enclosure use.
