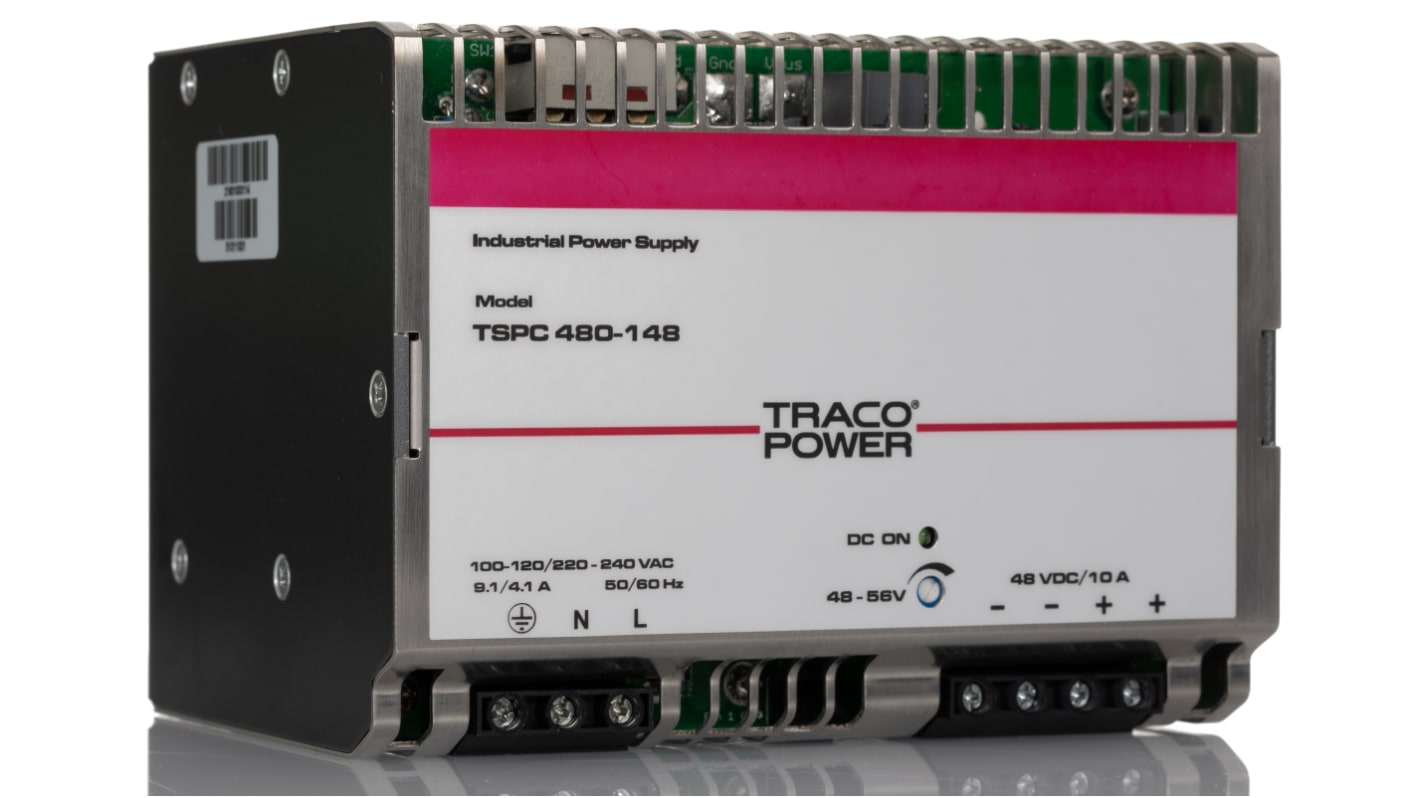

TRACOPOWER TSPC Power Supply DIN Rail Power Supply 264V ac AC Input 56V dc, 10 A Output DC 480 W
- RS Stock No.:
- 199-1773
- Distrelec Article No.:
- 300-08-642
- Mfr. Part No.:
- TSPC 480-148
- Manufacturer:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR1,093.01
FREE delivery for orders over RM 150.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 11 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR1,093.01 |
| 10 - 14 | MYR1,066.24 |
| 15 + | MYR1,027.57 |
*price indicative
- RS Stock No.:
- 199-1773
- Distrelec Article No.:
- 300-08-642
- Mfr. Part No.:
- TSPC 480-148
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Series | TSPC | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 56V dc | |
| Sub Type | Power Supply | |
| Input Voltage Type | AC | |
| Power | 480W | |
| Output Current | 10A | |
| IP Rating | IP20 | |
| Remote signal DC-OK | Yes | |
| Minimum Operating Temperature | -25°C | |
| Output Voltage Type | DC | |
| Maximum Operating Temperature | 70°C | |
| Depth | 110mm | |
| Height | 110mm | |
| Hazardous Area Certification | ATEX EN 60079, UL | |
| Width | 150mm | |
| Standards/Approvals | CSA 22.2 No 60950-1-07, IEC/EN 61010-2-201, IEC/EN 61000-4-6, EN 50178, EN 60079-15 II3G EX nA IIC T4, EN 60204-1, CSA-C22.2 No.107, IEC/EN 61000-4-5, IEC/EN 61010-1, EN 61558-2-6, EN 55022 Class B, EN 61000-6-2, IEC/EN 61000-4-8, EN 55011 Class B, IEC/EN 61000-4-4, IEC/EN 60950-1, IEC/EN 61000-4-11, EN 61558-2-16, EN 61000-6-3, IEC/EN 61000-4-3, EN 61204-3, UL 60950-1, IEC/EN 61000-4-2, UL 508 | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Efficiency | 93% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Series TSPC | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 56V dc | ||
Sub Type Power Supply | ||
Input Voltage Type AC | ||
Power 480W | ||
Output Current 10A | ||
IP Rating IP20 | ||
Remote signal DC-OK Yes | ||
Minimum Operating Temperature -25°C | ||
Output Voltage Type DC | ||
Maximum Operating Temperature 70°C | ||
Depth 110mm | ||
Height 110mm | ||
Hazardous Area Certification ATEX EN 60079, UL | ||
Width 150mm | ||
Standards/Approvals CSA 22.2 No 60950-1-07, IEC/EN 61010-2-201, IEC/EN 61000-4-6, EN 50178, EN 60079-15 II3G EX nA IIC T4, EN 60204-1, CSA-C22.2 No.107, IEC/EN 61000-4-5, IEC/EN 61010-1, EN 61558-2-6, EN 55022 Class B, EN 61000-6-2, IEC/EN 61000-4-8, EN 55011 Class B, IEC/EN 61000-4-4, IEC/EN 60950-1, IEC/EN 61000-4-11, EN 61558-2-16, EN 61000-6-3, IEC/EN 61000-4-3, EN 61204-3, UL 60950-1, IEC/EN 61000-4-2, UL 508 | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Efficiency 93% | ||
- COO (Country of Origin):
- CN
TRACOPOWER TSPC Series DIN Rail Power Supply, DIN Rail Mount, 10A Output Current - TSPC 480-148
This DIN rail power supply by TRACOPOWER provides a reliable and efficient solution for industrial environments. With a rugged metal case designed for harsh conditions, this power supply offers high performance and electrical immunity. It is known for its excellent specifications and ability to withstand electrical disturbances, making it an ideal choice for industrial systems and machines.
Features & Benefits
• Overload and overtemperature protection
• Power boost up to 120% for heavy-duty requirements
• ATEX certification for hazardous locations
• Wall mounting for secure installation
Applications
• Ideal for use in industrial automation systems
• Suitable for machinery operating in harsh environments
• Can be used for applications requiring a reliable power supply with high immunity to disturbances
Can it operate in extreme temperatures?
Yes, it has an operating temperature range of –25°C to +70°C, making it suitable for harsh environments.
Will it provide overload protection?
Yes, this power supply offers overload and overtemperature protection for added safety.
Is it suitable for hazardous locations?
Yes, it is ATEX certified for applications in hazardous locations.
Can it be mounted on a wall?
Yes, there is a wall mounting option available for easy installation.
