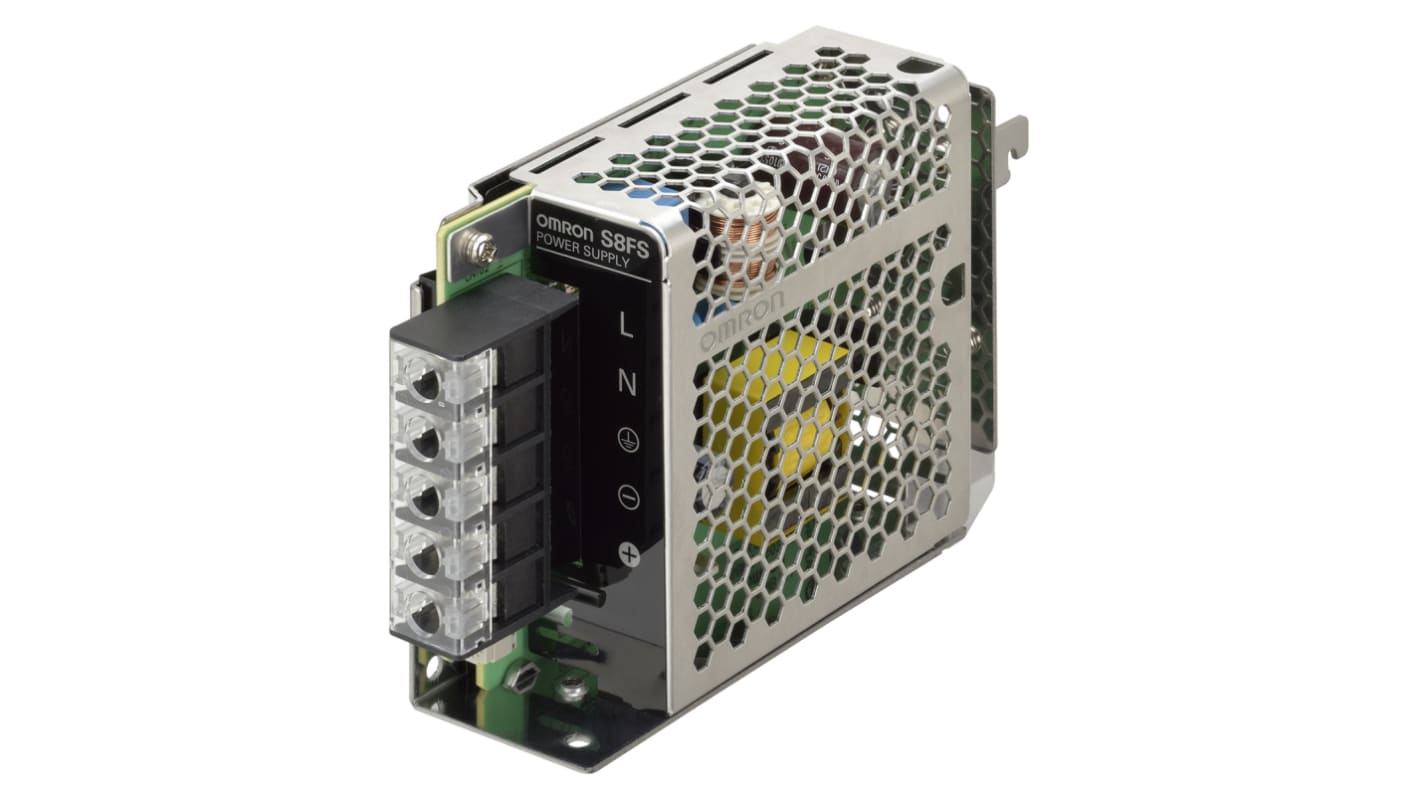

Omron S8FS-G Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 15V dc dc
- RS Stock No.:
- 184-9498
- Mfr. Part No.:
- S8FS-G05015CD
- Manufacturer:
- Omron
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR634.70
| Units | Per Unit |
| 1 + | MYR634.70 |
- RS Stock No.:
- 184-9498
- Mfr. Part No.:
- S8FS-G05015CD
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Superior Basic Performance That Ensures Reliability. Greater Usability.
Superior basic performance that ensures reliability Ambient temperatures up to 70°C, greater resistance to rusting with aluminium/stainless steel case, and applications at altitudes up to 3, 000 m.
Greater Usability The Terminal Block Cover prevents screws from dropping out and the Front Cover prevents ingress of foreign matter.
Greater Usability The Terminal Block Cover prevents screws from dropping out and the Front Cover prevents ingress of foreign matter.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 15V dc |
| Output Current | 3.5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 80 → 370V dc |
| Power Rating | 50W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 42mm |
| Width | 137mm |
| Depth | 105mm |
| Series | S8FS-G |
| Load Regulation | 1% |
| Mounting Type | DIN Rail Mount |
| Output Voltage Adjustment Range | -10 → +15% |
| Maximum Temperature | +70°C |
| MTBF | 135000h |
| Ripple And Noise | 40mV Pk-Pk |
| Efficiency | 88 (Typ.)% |
| Minimum Temperature | -20°C |
