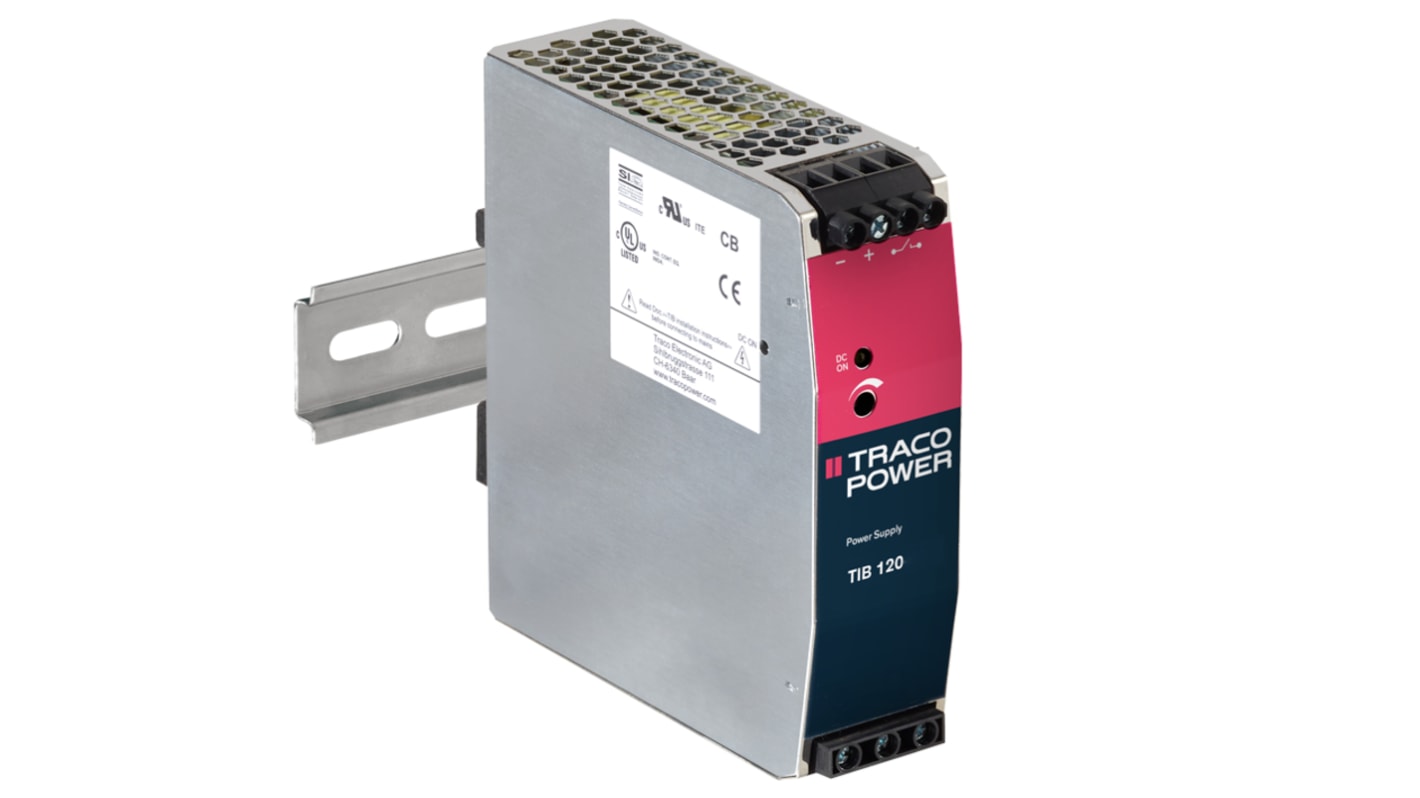

TRACOPOWER TIB 120 Linear DIN Rail Power Supply 264V ac AC Input 56V dc, 2.5 A Output DC 120 W
- RS Stock No.:
- 184-8539
- Distrelec Article No.:
- 301-40-690
- Mfr. Part No.:
- TIB 120-148
- Manufacturer:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR529.84
FREE delivery for orders over RM 150.00
In Stock
- Plus 11 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR529.84 |
| 10 - 14 | MYR511.26 |
| 15 + | MYR499.99 |
*price indicative
- RS Stock No.:
- 184-8539
- Distrelec Article No.:
- 301-40-690
- Mfr. Part No.:
- TIB 120-148
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DIN Rail Power Supply | |
| Series | TIB 120 | |
| Sub Type | Linear | |
| Maximum Output Voltage | 56V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Number of Outputs | 1 | |
| Power | 120W | |
| Output Current | 2.5A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Output Voltage Type | DC | |
| Maximum Operating Temperature | 70°C | |
| Height | 124.2mm | |
| Width | 36mm | |
| Depth | 118.6mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | CE, CSA C22.2 No 60950-1-03, cULus, Division 2, EN 60079-0, EN 60079-15, EN 60079-7, EX II3G Ex ec nC IIC GC Class I, IEC EN 60950-1, UL 508, UL 60950-1 | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 94% | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DIN Rail Power Supply | ||
Series TIB 120 | ||
Sub Type Linear | ||
Maximum Output Voltage 56V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Number of Outputs 1 | ||
Power 120W | ||
Output Current 2.5A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Output Voltage Type DC | ||
Maximum Operating Temperature 70°C | ||
Height 124.2mm | ||
Width 36mm | ||
Depth 118.6mm | ||
Hazardous Area Certification No | ||
Standards/Approvals CE, CSA C22.2 No 60950-1-03, cULus, Division 2, EN 60079-0, EN 60079-15, EN 60079-7, EX II3G Ex ec nC IIC GC Class I, IEC EN 60950-1, UL 508, UL 60950-1 | ||
Maximum Input Voltage 264V ac | ||
Efficiency 94% | ||
Minimum Input Voltage 85V ac | ||
Slim profile, for DIN-rail mounting
Alternative side-mounting for flat panels
High power factor by active power correction
Very high efficiency up to 94.5%
Back power immunity
150% peak current for 4 sec.
Operating temperature range: –25°C to +70°C max.
Adjustable output voltage
Short circuit and overload protection
DC–OK indicator
