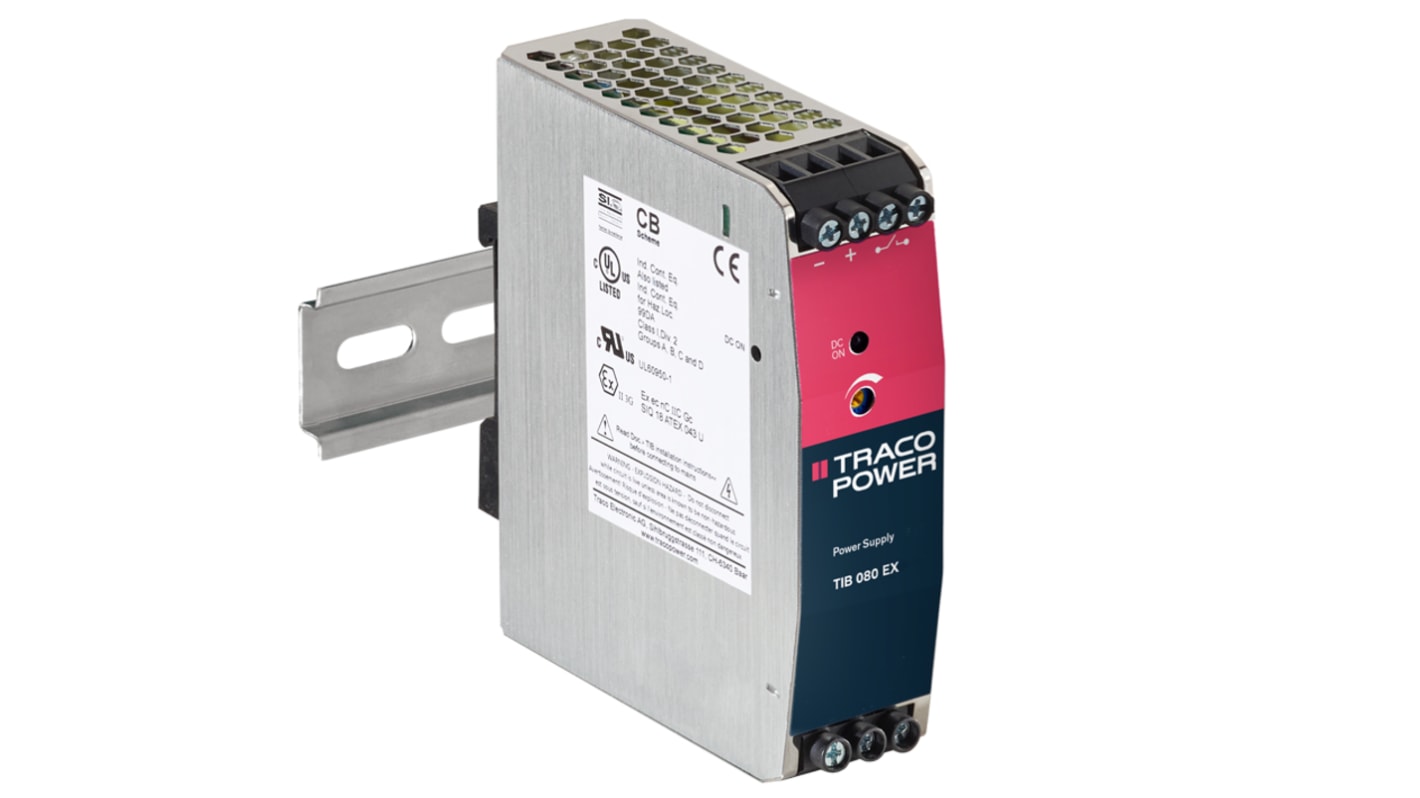

TRACOPOWER, TIB 080 DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 3.4A Output Current

  • RS Stock No. 184-8532
  • Mfr. Part No. TIB 080-124EX
  • Manufacturer TRACOPOWER
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Slim profile, for DIN-rail mounting
Alternative side-mounting for flat panels
High power factor by active power correction
Very high efficiency up to 94.5%
Back power immunity
150% peak current for 4 sec.
Operating temperature range: –25°C to +70°C max.
Adjustable output voltage
Short circuit and overload protection
DC–OK indicator

Specifications
Attribute Value
AC or DC Input Voltage Ac
AC or DC Output Voltage Dc
Input Voltage 85 → 264V ac
Output Voltage 24 V dc
Output Current 3.4 A
Power Rating 80W
Number of Outputs 1
Electrical Phase 1
Type Power Supply
Height 114.2mm
Width 32mm
Depth 98.6mm
MTBF >1950000h
Series TIB 080
Standards Met CE Certified, CSA C22.2 No 60950-1-03, CULus Recognized, Division 2, EN 60079-0, EN 60079-15, EN 60079-7, EX II3G Ex ec nC IIC GC Class I, IEC/EN 60950-1, UL 508, UL 60950-1
Load Regulation 0.5%
Special Features Alternative Side-Mounting for Flat Panels, Back Power Immunity, High Power Factor by Active Power Correction, Slim Profile for DIN-Rail Mounting
Ripple And Noise 100mV Pk-Pk
Maximum Temperature +70°C
Efficiency 90%
Mounting Type DIN Rail Mount
Output Voltage Adjustment Range 23.5 → 28V
Minimum Temperature -40°C
Hazardous Area Certification ATEX
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 467.10
units
Per unit
1 - 9
MYR467.10
10 - 14
MYR443.80
15 +
MYR429.80
