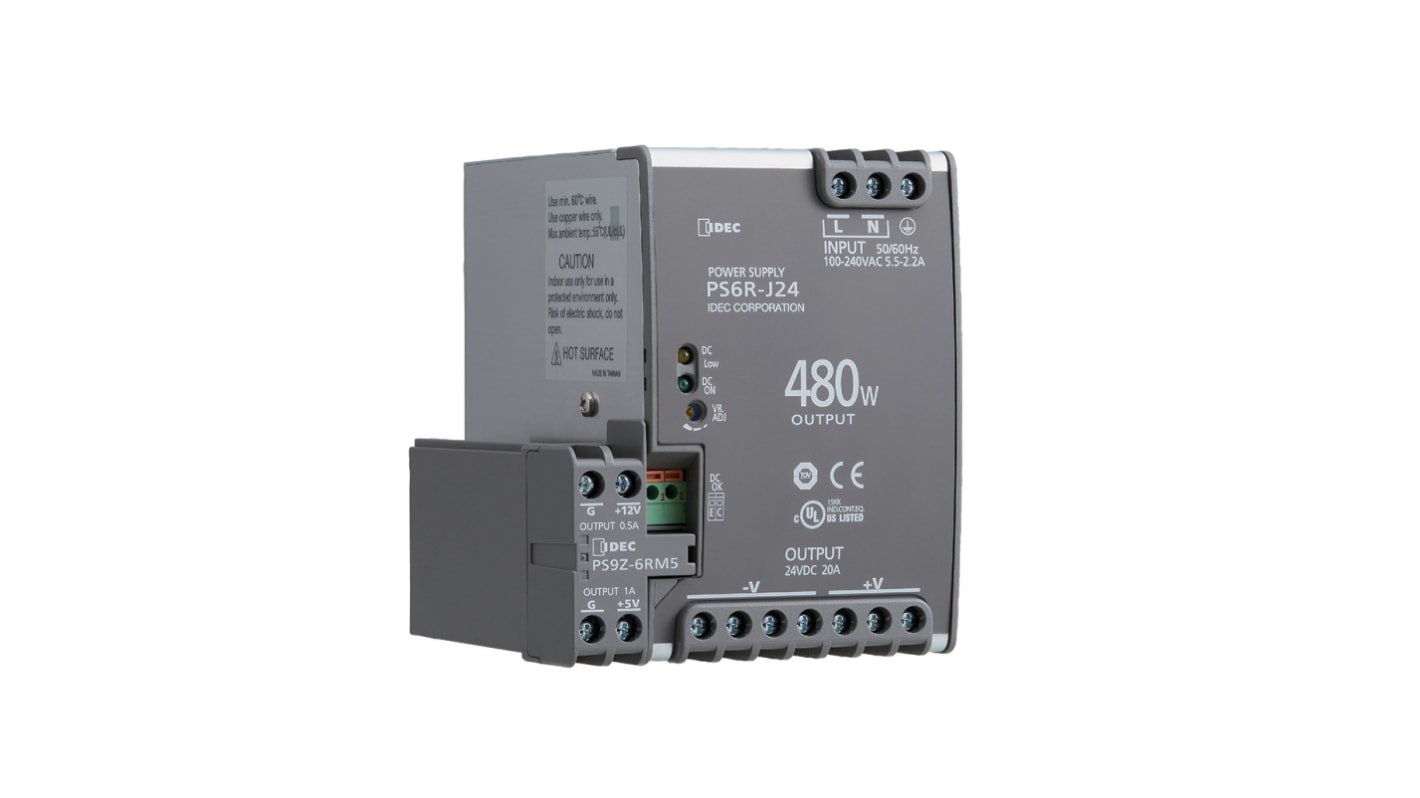

Idec PS6R Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 110 → 350V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 179-5356
- Mfr. Part No.:
- PS6R-J24
- Manufacturer:
- Idec
Discontinued product
- RS Stock No.:
- 179-5356
- Mfr. Part No.:
- PS6R-J24
- Manufacturer:
- Idec
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Idec | |
Series | PS6R | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 85 → 264 V ac / 110 → 350V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 20A | |
Power Rating | 480W | |
Dimensions | 85 x 125 x 125mm | |
Depth | 125mm | |
Width | 85mm | |
Height | 125mm | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | ±10% | |
Ripple And Noise | 1.5 (Ripple)% Pk-Pk | |
Standards Met | ANSI/ISA, CE:TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, EN 61204-3, UL 310, UL 508 | |
Special Features | Finger Safe Construction Prevents Electric Shocks, Plug-In Branch Terminal Module for Additional Terminals, Plug-In Output Modules for Additional Output Voltages | |
Load Regulation | 0.6% | |
Mounting Type | DIN Rail Mount | |
Efficiency | 93% | |
Minimum Temperature | -10°C | |
