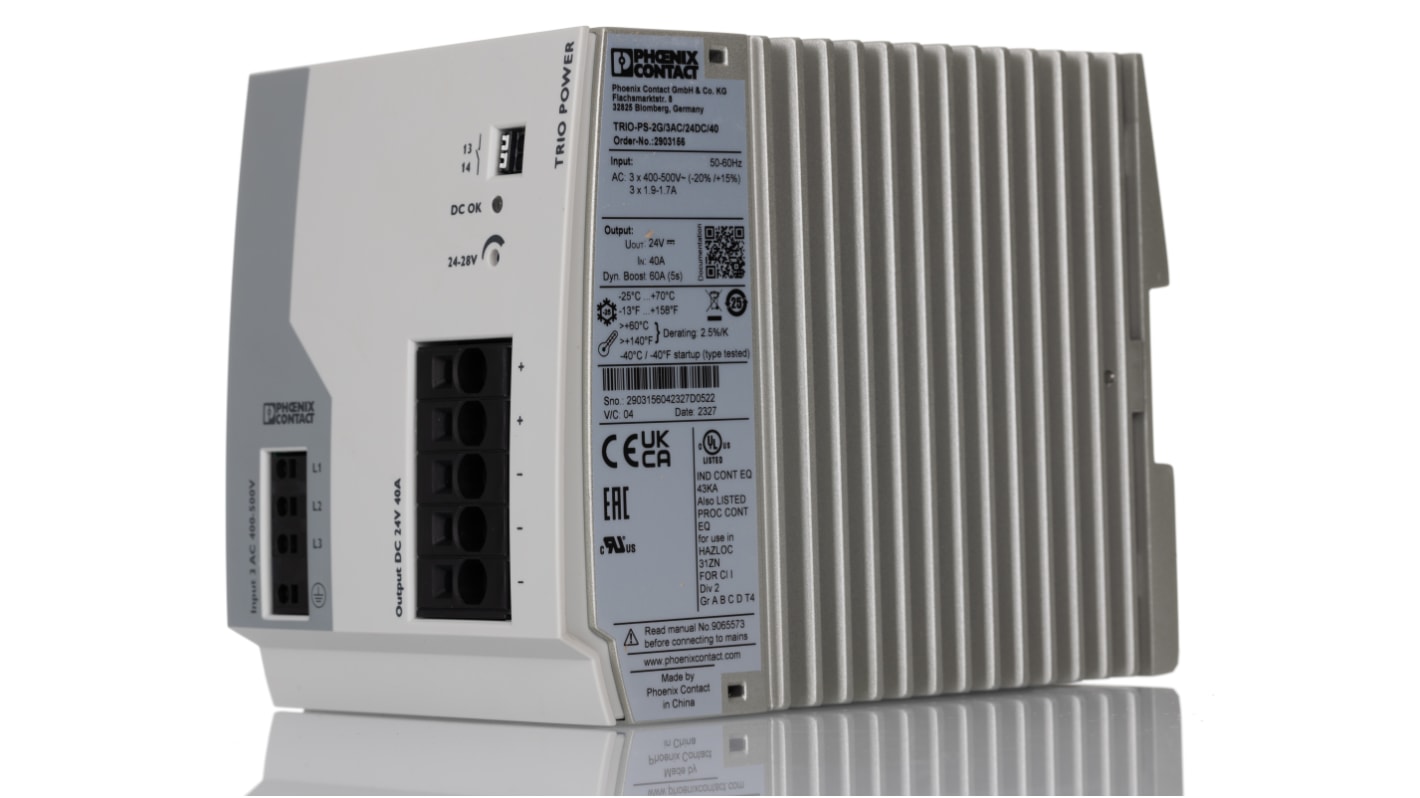

Phoenix Contact TRIO-PS-2G/3AC/24DC/40 Switched Mode DIN Rail Power Supply, 3 x 400V ac ac Input, 24V dc dc Output, 40A
- RS Stock No.:
- 134-9905
- Mfr. Part No.:
- 2903156
- Manufacturer:
- Phoenix Contact
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Box of 1
MYR1,963.40
| Box(es) | Per Box |
| 1 + | MYR1,963.40 |
- RS Stock No.:
- 134-9905
- Mfr. Part No.:
- 2903156
- Manufacturer:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TRIO-PS/3AC/ Three Phase Power Supplies
Suitable for worldwide applications with a wide range input voltage, and with adjustable output compensation can be made for long cable runs and battery charging applications, can be used on networks where the phases become imbalanced, withstands up to 300Vac input.
Features and benefits:
Three phase power supplies
Output Voltage: 24Vdc
Input voltage 3 x 320 to 575 Vac
Operating temperature range 0 to +70°C
Output Voltage: 24Vdc
Input voltage 3 x 320 to 575 Vac
Operating temperature range 0 to +70°C
Typical Applications:
The 3 phase PSUs are commonly used in areas such as power hungry and high density data centres, power grids as well as other electronic applications with a load that is greater than 1000 watts.
Approvals
UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved
Phoenix Contact TRIO-PS-2G/3AC/24DC/40 DIN Rail Power Supply, 960W - 2903156
This DIN rail power supply from Phoenix Contact is a reliable solution for machine building applications. With a power rating of 960W, it ensures a robust electrical design and features dynamic boost technology for efficient power conversion.
Features & Benefits
• 40A output current for reliable power supply
• Transient surge protection for added safety
• Dynamic Boost technology with 150% of nominal current for increased system availability
• Tool-free fast connection technology for ease of installation
• Transient surge protection for added safety
• Dynamic Boost technology with 150% of nominal current for increased system availability
• Tool-free fast connection technology for ease of installation
Applications
• Ideal for use in machine building applications
• Ensures reliable power supply under challenging conditions
• Tailored to the stringent requirements of industrial environments
• Suitable for a wide temperature range from -25°C to +70°C
• Ensures reliable power supply under challenging conditions
• Tailored to the stringent requirements of industrial environments
• Suitable for a wide temperature range from -25°C to +70°C
Can it handle a wide temperature range?
Yes, the DIN rail power supply can operate in temperatures ranging from -25°C to +70°C.
Will it provide reliable power for machine building applications?
Yes, the power supply ensures a stable and reliable power supply for various loads.
Is it easy to install?
Yes, with tool-free fast connection technology, installation is quick and convenient.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 40A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 3 x 400 V ac → 500V ac |
| Power Rating | 960W |
| Number of Outputs | 2 |
| Height | 130mm |
| Width | 160mm |
| Depth | 160mm |
| Series | TRIO-PS-2G/3AC/24DC/40 |
| Minimum Temperature | -25°C |
| Efficiency | 93.3% |
| MTBF | >1051000 h @ 40 °C, >1730000 h @ 25 °C, >512000 h @ 60°C |
| Standards Met | cUL, cUL Recognised, cULus Recognised, EAC, UL, UL Recognised |
| Special Features | Dynamic Boost, Ensure Reliable Supply of All Loads, Optimally Tailored to the Stringent Requirements, Perfected For Use in Machine Building, Performs Under Challenging Ambient Conditions, Robust Electrical & Mechanical Design, Tool-Free Fast Connection Technology for Solid and Stranded Conductors with Ferrule |
| Maximum Temperature | +70°C |
| Mounting Type | DIN Rail Mount |
