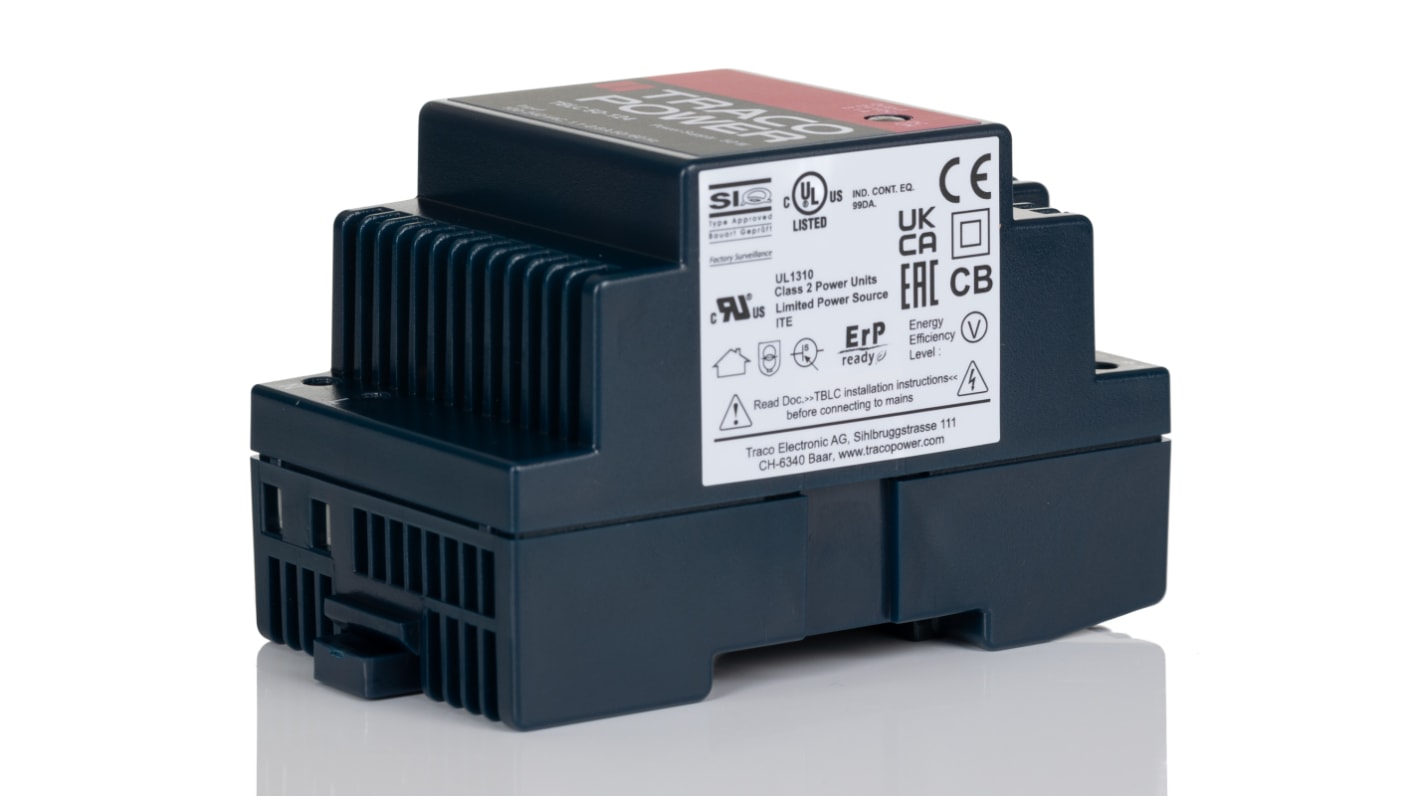

TRACOPOWER TBLC 50 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.1A Output, 50W
- RS Stock No.:
- 125-8550
- Mfr. Part No.:
- TBLC 50-124
- Manufacturer:
- TRACOPOWER
29 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR324.67
Units | Per Unit |
1 - 4 | MYR324.67 |
5 + | MYR267.20 |
- RS Stock No.:
- 125-8550
- Mfr. Part No.:
- TBLC 50-124
- Manufacturer:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Traco Power DIN Rail Power Supply, 0.3% Line Regulation, 180g Weight - TBLC Series - TBLC 50-124
Efficiently energise your equipment with this DIN rail power supply from Traco Power. It turns a mains electricity supply into the steady 24V DC and 2.1A output your sensitive devices need. Thanks to a universal input voltage range between 85V and 264V DC, you can use this device virtually anywhere. A high efficiency rating of 89% means it converts most of the energy it takes in and doesn't get over-heated as it works.
Features & Benefits
• 50W rating means it's suitable for mid-power applications
• Compact dimensions of 59.5 (W) x 89.5 (H) x 59.5mm (D), so it takes up minimal space on your DIN rail
• Operating temperature range between -25°C and +70°C means it's handy in harsh settings
• IP20 rating indicates protection against accidental touch and solid objects larger than 12mm, for safe handling and installation
• Low profile design means you can mount it on a flat rack
• Compact dimensions of 59.5 (W) x 89.5 (H) x 59.5mm (D), so it takes up minimal space on your DIN rail
• Operating temperature range between -25°C and +70°C means it's handy in harsh settings
• IP20 rating indicates protection against accidental touch and solid objects larger than 12mm, for safe handling and installation
• Low profile design means you can mount it on a flat rack
Applications
• Construction industry
• Industrial automation
• Transportation infrastructure
• Industrial automation
• Transportation infrastructure
Does this device offer protection against overcurrents?
Yes, it's protected against short circuits and overcurrents to keep users and equipment safe from hazards.
Specifications
Attribute | Value |
---|---|
Type | Switched Mode |
Output Voltage | 24V dc |
Output Current | 2.1A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 85 → 264V ac |
Power Rating | 50W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 59.5mm |
Width | 54mm |
Depth | 89.5mm |
Series | TBLC 50 |
Special Features | Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes |
Maximum Temperature | +70°C |
Standards Met | ErP Compliant |
MTBF | 1900kh |
Output Voltage Adjustment Range | 24 → 28V |
Load Regulation | 0.3% |
Efficiency | 89% |
Ripple And Noise | 50mV Pk-Pk |
Minimum Temperature | -25°C |
Mounting Type | DIN Rail Mount |
