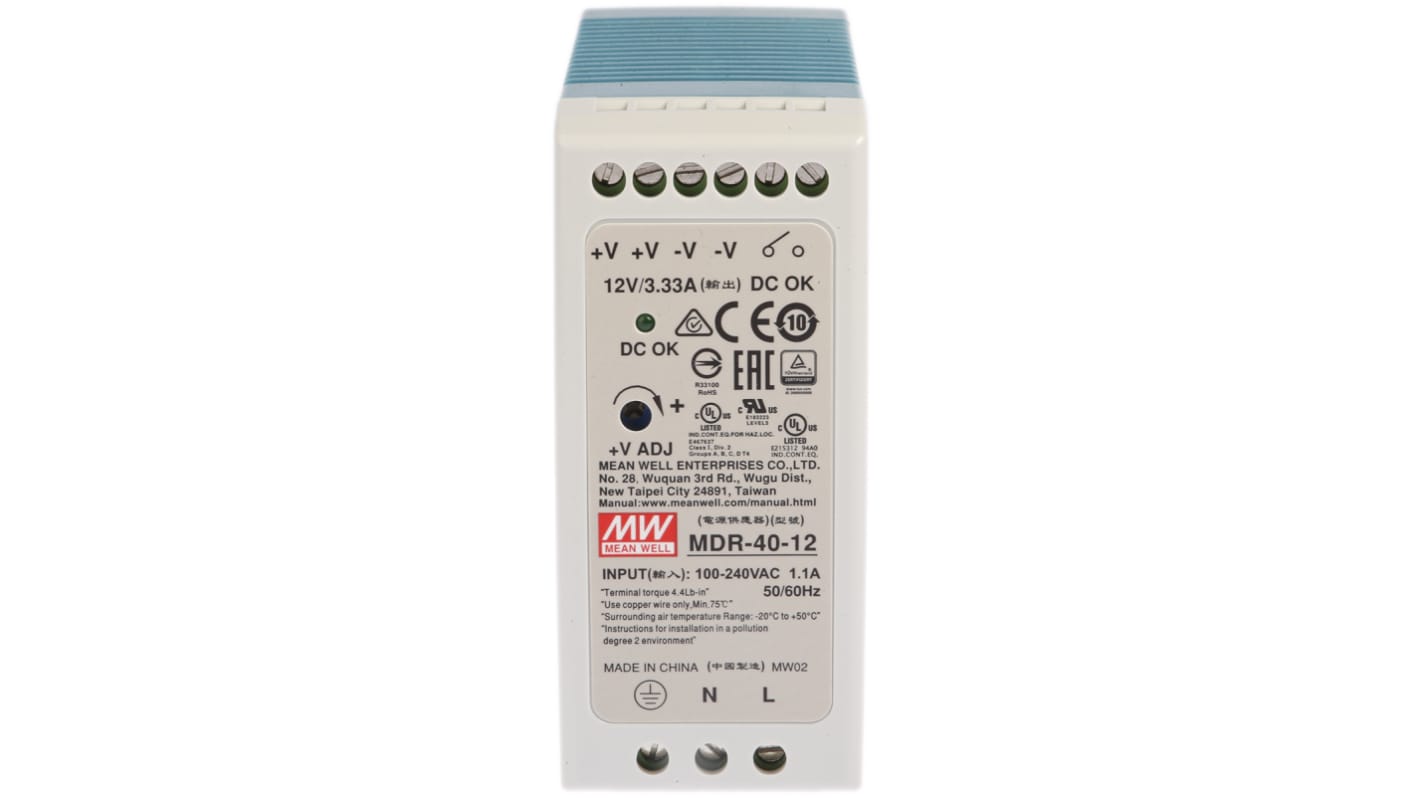

MEAN WELL MDR Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 3.33A Output, 40W
- RS Stock No.:
- 428-423
- Distrelec Article No.:
- 169-76-142
- Mfr. Part No.:
- MDR-40-12
- Manufacturer:
- MEAN WELL
Subtotal (1 unit)*
MYR106.01
FREE delivery for orders over RM 500.00
In Stock
- 160 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR106.01 |
*price indicative
- RS Stock No.:
- 428-423
- Distrelec Article No.:
- 169-76-142
- Mfr. Part No.:
- MDR-40-12
- Manufacturer:
- MEAN WELL
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Series | MDR | |
| Type | Switched Mode | |
| Electrical Phase | 1 | |
| AC or DC Input Voltage | ac | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 12V dc | |
| Output Current | 3.33A | |
| Dimensions | 100 x 40 x 90mm | |
| Height | 100mm | |
| Width | 40mm | |
| Depth | 90mm | |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 | |
| Load Regulation | ±1% | |
| Minimum Temperature | -20°C | |
| MTBF | 301.7kh | |
| Hazardous Area Certification | B, C, Class I Division 2 Group A, D Hazardous Location T4 | |
| Output Voltage Adjustment Range | 12 → 15V | |
| Ripple And Noise | 120mV Pk-Pk | |
| Mounting Type | DIN Rail Mount | |
| Maximum Temperature | +70°C | |
| Special Features | Overvoltage and Short Circuit Protection | |
