ABB CP-E Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 48V dc dc

RS Stock No.:: 234-436
Mfr. Part No.:: 1SVR427031R2000 CP-E 48/1.25
Manufacturer:: ABB

ABB CP-E Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 48V dc dc

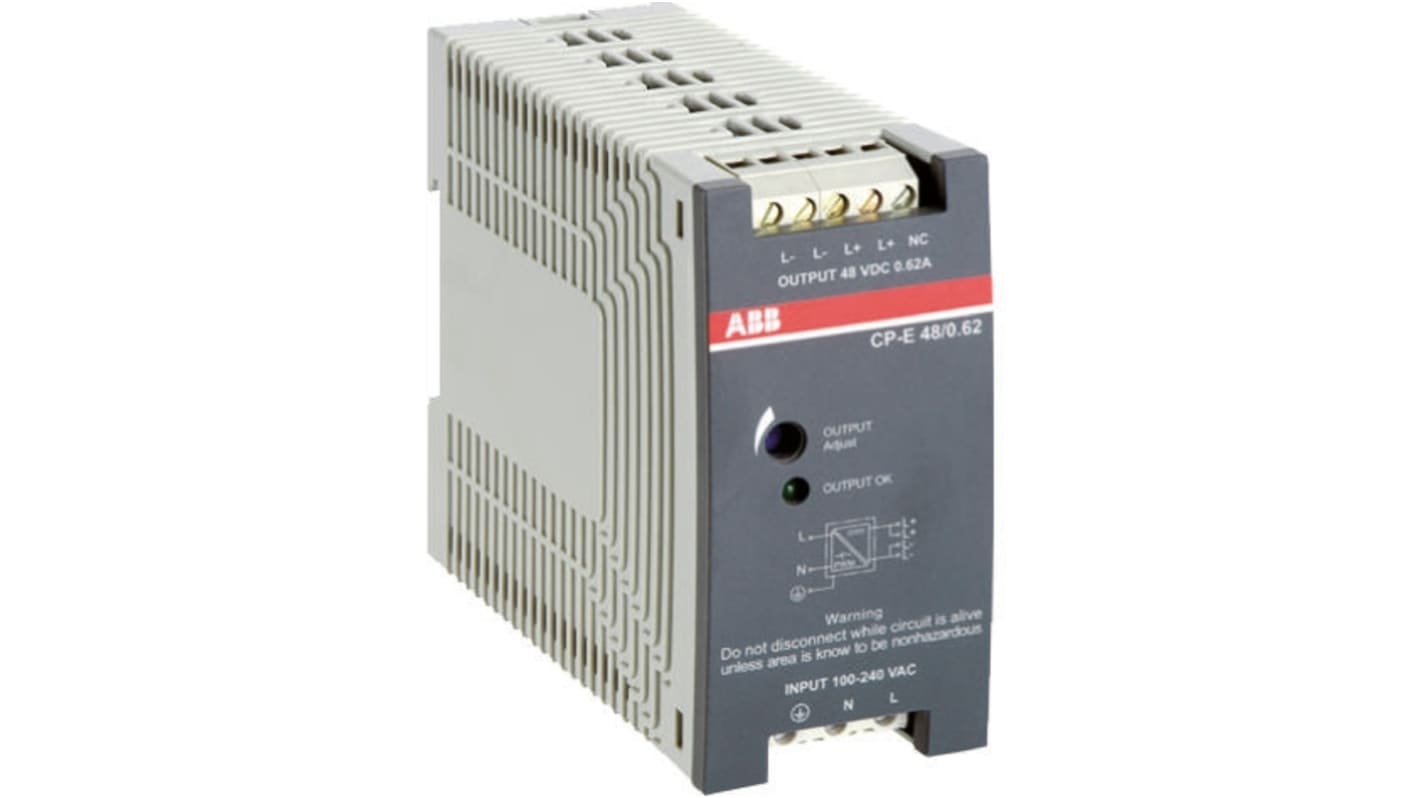

This image is representative of the product range

View all DIN Rail Power Supplies

Bulk discount available

Subtotal (1 unit)*

MYR787.68

FREE delivery for orders over RM 500.00

Temporarily out of stock

Shipping from 14 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 5	MYR787.68
6 +	MYR771.11

*price indicative

Compare

Alternative

This product is not currently available. Here is our alternative recommendation.

TRACOPOWER TCL Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 85 → 375V dc ac, dc Input, 48V dc dc

RS Stock No.: 466-7023

Each

MYR521.83

RS Stock No.:: 234-436
Mfr. Part No.:: 1SVR427031R2000 CP-E 48/1.25
Manufacturer:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Series	CP-E
	Type	Switched Mode
	Electrical Phase	1
	AC or DC Input Voltage	ac, dc
	Number of Outputs	1
	Input Voltage	85 → 264 V ac / 90 → 375V dc
	AC or DC Output Voltage	dc
	Output Voltage	48V dc
	Output Current	1.25A
	Dimensions	115 x 43.5 x 88.5mm
	Depth	115mm
	Height	88.5mm
	Width	40.5mm
	Maximum Temperature	+85°C
	Efficiency	89.0%
	Output Voltage Adjustment Range	48.0 to 55.0V
	Mounting Type	DIN Rail Mount
	Load Regulation	±0.5%
	Ripple And Noise	50mV Pk-Pk
	Minimum Temperature	-10°C

	Select all
	Brand ABB
	Series CP-E
	Type Switched Mode
	Electrical Phase 1
	AC or DC Input Voltage ac, dc
	Number of Outputs 1
	Input Voltage 85 → 264 V ac / 90 → 375V dc
	AC or DC Output Voltage dc
	Output Voltage 48V dc
	Output Current 1.25A
	Dimensions 115 x 43.5 x 88.5mm
	Depth 115mm
	Height 88.5mm
	Width 40.5mm
	Maximum Temperature +85°C
	Efficiency 89.0%
	Output Voltage Adjustment Range 48.0 to 55.0V
	Mounting Type DIN Rail Mount
	Load Regulation ±0.5%
	Ripple And Noise 50mV Pk-Pk
	Minimum Temperature -10°C

Switch mode power supplies CP-E series

The CP-E range of DIN Rail PSUs from ABB offer enhanced functionality. The switch mode power supply units are economic and can be operated at an ambient temperature of up to 70°C. With adjustable output voltages, they can also be adapted to the application required.
This range offers output voltages from 5 V dc to 48 V dc at output currents of 06.25 A to 20 A. Thermal efficiency of up to 90% means that there is low power and heat dissipation allowing operation of the PSU without any forced cooling.
The switch mode power supply can be snapped onto a DIN Rail according to IEC/EN 60715, and be mounted horizontally.

Features and Benefits

Switch mode power supplies CP-E

Primary switch mode power supplies
Adjustable output voltages
Wide input range
High efficiency
Low power loss and low heating
Free convection cooling (no forced cooling by fans)
Off-load, overload and continuous short-circuit proof, automatic restart
Integrated input fuse
U/I characteristic (fold-forward feature in the event of overload — no switch-off) for devices greater than 18 W
Decoupling module CP-RUD for applications with "true" redundancy
LED status "OUTPUT OK"
DC OK output (transistor) for 24 V devices (greater than 18 W)
Protection class IP20

Product Application Information

Redundancy module CP-RUD

For output-end parallel-redundant activated power supplies for decoupling, thus achieving true redundancy
Input/output current max. 5A

The primary switch mode power supply offers two voltage input ranges, enabling the supply with AC or DC. Furthermore it is equipped with two generous capacitors, which ensure mains buffering of at least 30 ms (at 230 V ac). These power supplies can be used worldwide also in high fluctuating networks and battery powered plants.

Approvals

UL 508, UL 60950, GOST, CCC, CE
