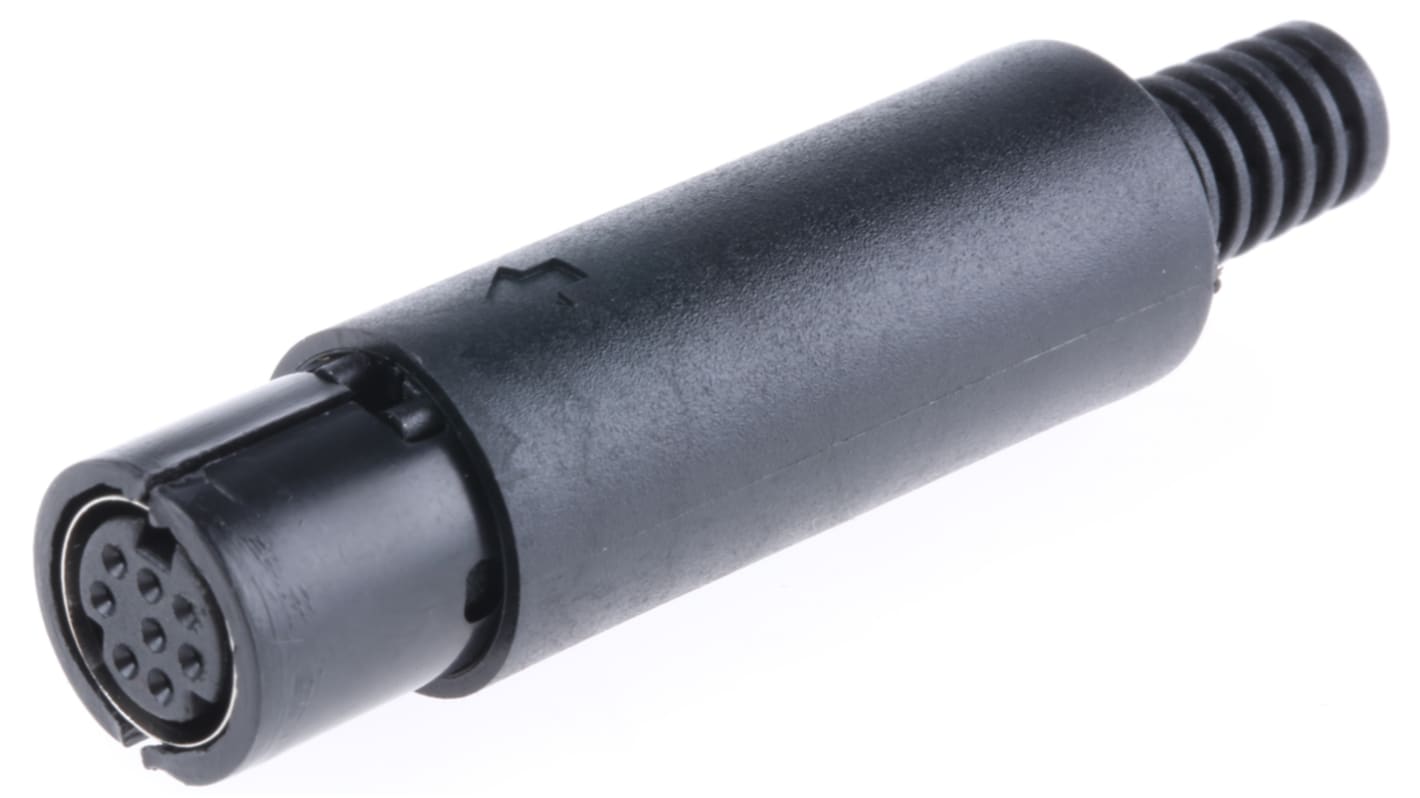

RS PRO 8 Pole Miniature Din Socket, 1A, 50 V ac/dc, Female, Cable Mount
- RS Stock No.:
- 463-439
- Manufacturer:
- RS PRO
View all DIN Connectors
15 In SG stock for delivery within 2 working days
245 In Global stock for delivery within 4 working day(s)
Price Each (In a Pack of 5)
Was MYR4.678
You pay
MYR4.21
units | Per Unit | Per Pack* |
5 - 20 | MYR4.21 | MYR21.05 |
25 - 120 | MYR3.788 | MYR18.94 |
125 + | MYR3.118 | MYR15.59 |
*price indicative |
- RS Stock No.:
- 463-439
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- TW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Cable Plug & Socket
Brought to you under the trusted RS Brand, this range of mini-DIN plugs and sockets feature a moulded ABS body with integral strain relief. With PBT insulator and silver plated copper alloy contacts, these mini-DIN connectors are robust and reliable, and suitable for various applications.
Features and Benefits:
Connections are polarised e.g. only 3 way plug with 3 way socket
Withstand voltage 500V for 1 minute
Contact resistance <30mΩ
Cable entry diameter of 5mm
Plugs (Male-ended) and Sockets (Female-ended) connector types
Withstand voltage 500V for 1 minute
Contact resistance <30mΩ
Cable entry diameter of 5mm
Plugs (Male-ended) and Sockets (Female-ended) connector types
Typical Applications:
DIN connectors have multiple pins within a protective circular sheath and cables that plug into an interface to connect devices. Similar to other kinds of electrical connectors, their function is to enable a secure signal and current transmission by pairing a male half (the pins) to a female receptacle (the housing).
A DIN connector is a type of electrical connector and can be used in various applications to connect devices including, personal computers, audio and video to power, serial and data. Mini-DIN connectors are found in S-video connections, PS/2 mouse and keyboards.
A DIN connector is a type of electrical connector and can be used in various applications to connect devices including, personal computers, audio and video to power, serial and data. Mini-DIN connectors are found in S-video connections, PS/2 mouse and keyboards.
Features and Benefits:
Connections are polarised eg. only 3 way plug with 3 way socket
Withstand voltage 500V for 1 minute
Contact resistance <30mΩ
Cable entry diameter of 5mm
Withstand voltage 500V for 1 minute
Contact resistance <30mΩ
Cable entry diameter of 5mm

Mini-Din
Connectors and moulded leads, available in the mini-DIN style configuration commonly used in communication and computer applications. Their small physical size and high contact density make them very suitable for transmitting shielded data signals.
Specifications
Attribute | Value |
Number of Contacts | 8 |
Gender | Female |
Mounting Type | Cable Mount |
Connector Size | Miniature |
Body Orientation | Straight |
Current Rating | 1A |
Voltage Rating | 50 V ac/dc |
Shielded/Unshielded | Shielded |
Series | MDN |
Housing Material | ABS |
Maximum Operating Temperature | +85°C |
Contact Plating | Silver |
Contact Material | Copper Alloy |
Minimum Operating Temperature | -55°C |
