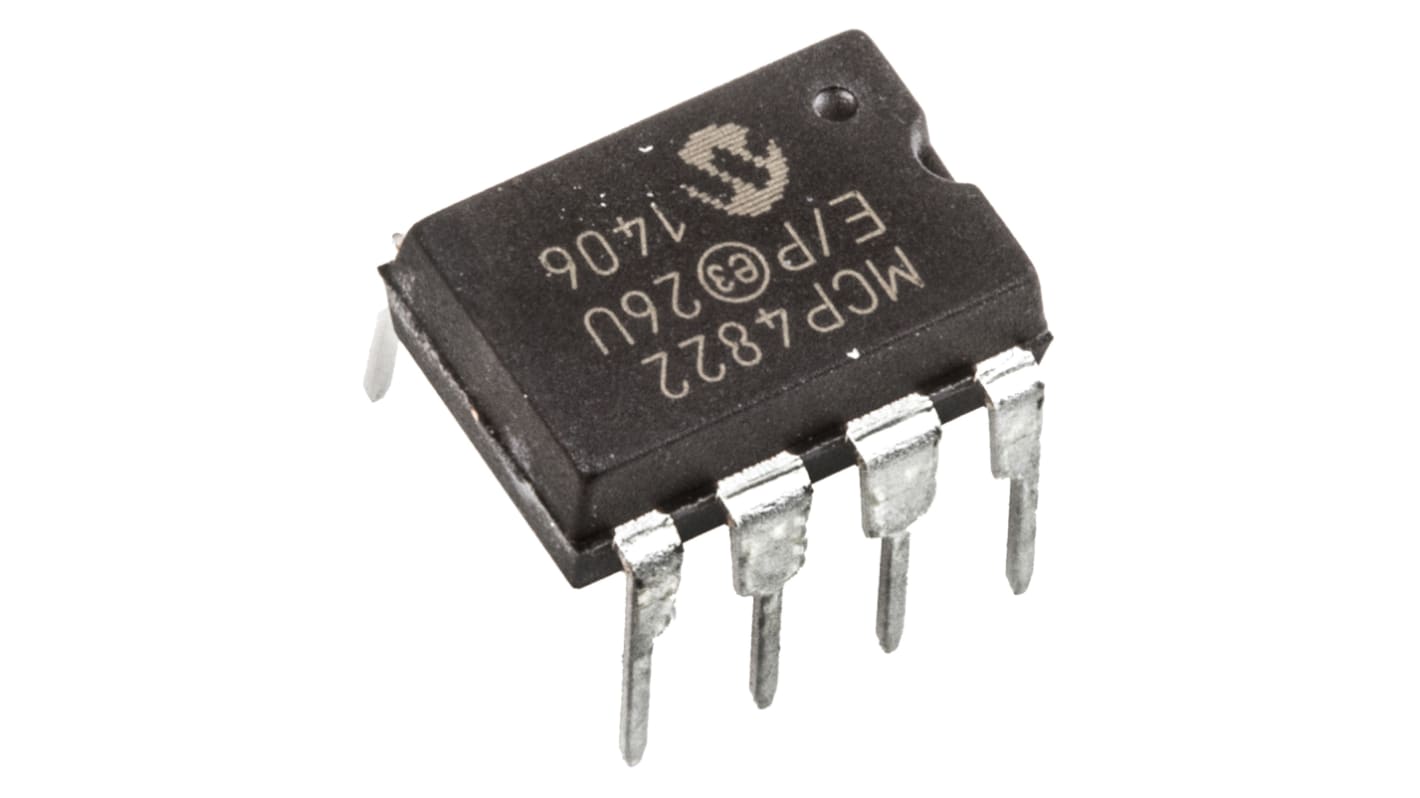

Microchip, DAC Dual 12 bit- ±2%FSR Serial (SPI/Microwire), 8-Pin PDIP
- RS Stock No.:
- 681-1092P
- Mfr. Part No.:
- MCP4822-E/P
- Manufacturer:
- Microchip
Bulk discount available
Subtotal 15 units (supplied in a tube)*
MYR270.75
FREE delivery for orders over RM 500.00
In Stock
- 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 15 - 29 | MYR18.05 |
| 30 + | MYR17.81 |
*price indicative
- RS Stock No.:
- 681-1092P
- Mfr. Part No.:
- MCP4822-E/P
- Manufacturer:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Architecture | Resistor String | |
| Resolution | 12 bit | |
| Full Scale Error | ±2%FSR | |
| Integral Nonlinearity Error | ±12LSB | |
| Number of DAC Channels | 2 | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Maximum Settling Time | 4.5µs | |
| Digital Interface Type | Serial (SPI/Microwire) | |
| Output Polarity | Unipolar | |
| Voltage Reference | Internal | |
| Typical Single Supply Voltage | 5 V | |
| Power Supply Type | Single | |
| Dimensions | 9.4 x 6.35 x 3.3mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
