Select all	Attribute	Value
	Brand	Texas Instruments
	Architecture	R-2R, Resistor String
	Resolution	12 bit
	Conversion Rate	89ksps
	Full Scale Error	±2LSB
	Integral Nonlinearity Error	±1LSB
	Number of DAC Channels	4
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	16
	Maximum Settling Time	10µs
	Digital Interface Type	Serial
	Output Polarity	Bipolar, Unipolar
	Voltage Reference	External
	Typical Single Supply Voltage	15 V
	Power Supply Type	Dual, Single
	Maximum Operating Temperature	+85 °C
	Dimensions	10.28 x 7.52 x 2.35mm
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Texas Instruments
	Architecture R-2R, Resistor String
	Resolution 12 bit
	Conversion Rate 89ksps
	Full Scale Error ±2LSB
	Integral Nonlinearity Error ±1LSB
	Number of DAC Channels 4
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 16
	Maximum Settling Time 10µs
	Digital Interface Type Serial
	Output Polarity Bipolar, Unipolar
	Voltage Reference External
	Typical Single Supply Voltage 15 V
	Power Supply Type Dual, Single
	Maximum Operating Temperature +85 °C
	Dimensions 10.28 x 7.52 x 2.35mm
	Minimum Operating Temperature -40 °C

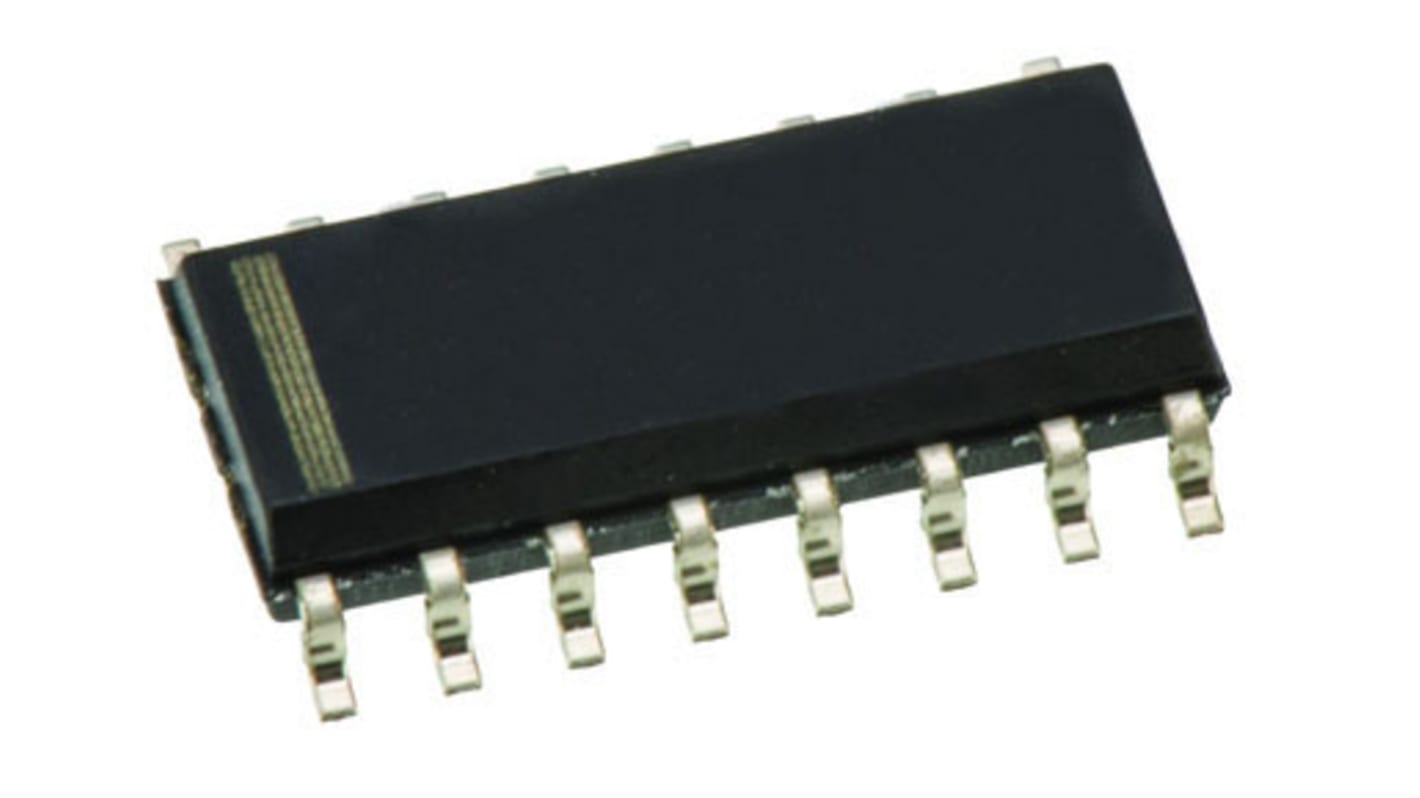

Texas Instruments, DAC Quad 12 bit-, 89ksps, ±2LSB Serial, 16-Pin SOIC

FREE delivery for orders over RM 500.00

Digital to Analogue Converters 12 Bit, 2- 4- 8-Channels, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
